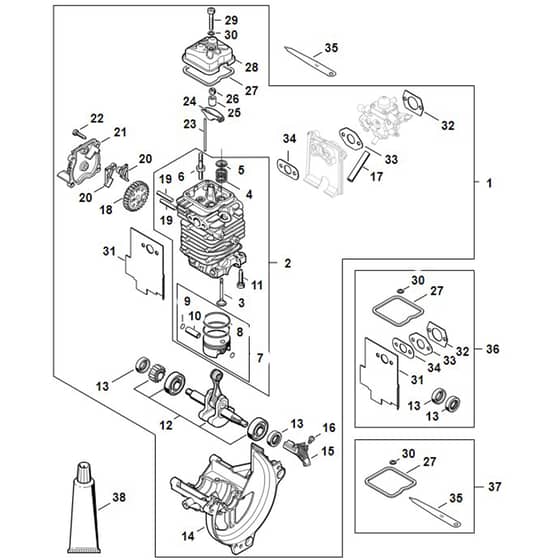

Stihl HT132 - Engine Ø 43 Mm - Parts Diagram

Name: Stihl HT132 - Engine Ø 43 Mm - Parts Diagram
SKU: ht132_engine_43_mm-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HT132 - Engine Ø 43 Mm - Parts Diagram

Description

Stihl HT132 - Engine Ø 43 Mm - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4180 020 0205 Available to backorder	Sort block Ø 43 mm (Contains 2 - 34)	£303.36 £252.80
2	ST4180 020 1210 Available to backorder	Cylinder with piston Ø 43 mm (Contains 3 - 11)	£150.70 £125.58
3	ST4180 025 2011 Available to backorder	Valve	£14.86 £12.38
4	ST4180 025 1600 Available to backorder	Valve spring	£1.54 £1.28
5	ST4180 025 3000 In stock	Spring retainer plate	£1.32 £1.10
6	ST4180 038 1700 Available to backorder	Collar screw M5	£2.32 £1.93
7	ST4180 030 2003 Available to backorder	Piston Ø 43 mm (Contains 8 - 10)	£100.66 £83.88
8	ST4180 034 3001 Available to backorder	Piston ring Ø 43x1.2 mm	£8.68 £7.23
9	ST4180 034 1501 Available to backorder	Piston pin 9x5x26	£6.60 £5.50
10	ST9463 650 0900 In stock	Snap ring 9x0.8	£0.66 £0.55
11	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.89 £0.74
12	ST4180 030 0411 Available to backorder	Crankshaft	£201.00 £167.50
13	ST9639 003 1231 In stock	Oil seal 12x22x7	£5.18 £4.32
14	ST4180 021 2500 Available to backorder	Engine pan	£28.38 £23.65
15	ST4180 448 1201 Available to backorder	Lead retainer	£3.20 £2.67
16	ST9074 478 2970 Available to backorder	Pan head self-tapping screw IS-P4x10	£0.76 £0.63
17	ST4180 141 8602 Available to backorder	Impulse hose	£3.40 £2.83
18	ST4180 030 1800 In stock	Cam wheel	£7.70 £6.42
19	ST4180 038 0801 Available to backorder	Pin 5x28	£2.20 £1.83
20	ST4180 038 1900 Available to backorder	Cam follower	£10.12 £8.43
21	ST4180 038 1301 In stock	Cover	£8.14 £6.78
22	ST9075 478 3018 In stock	Pan head self-tapping screw IS-D4x18	£0.76 £0.63
23	ST4180 038 2600 Available to backorder	Pushrod	£1.66 £1.38
24	ST4282 038 1000 Available to backorder	Rocker arm	£2.20 £1.83
25	ST4180 038 2000 Available to backorder	Sleeve	£2.86 £2.38
26	ST4180 038 2700 Available to backorder	Lock nut M5	£1.10 £0.92
27	ST4180 029 0500 In stock	Gasket	£1.32 £1.10
28	ST4180 025 1100 Available to backorder	Valve cover	£4.30 £3.58
29	ST9022 346 1070 In stock	Spline screw IS-M5x30	£1.00 £0.83
30	ST9636 815 0270 Available to backorder	Sealing ring 5x9x1	£0.48 £0.40
31	ST4180 149 0600 Available to backorder	Muffler gasket	£5.72 £4.77
32	ST4114 149 1205 In stock	Gasket	£1.22 £1.02
33	ST4180 129 0905 In stock	Gasket	£2.20 £1.83
34	ST4180 129 0906 Available to backorder	Gasket	£2.20 £1.83
35	ST4180 893 6400 In stock	Setting gauge	£0.34 £0.28
36	ST4180 007 1037 In stock	Set of gaskets (Contains 13 + 27 + 30 - 34)	£15.52 £12.93
37	ST4180 007 1005 In stock	Valve clearance setting kit (Contains 27 + 30 + 35)	£0.56 £0.47
