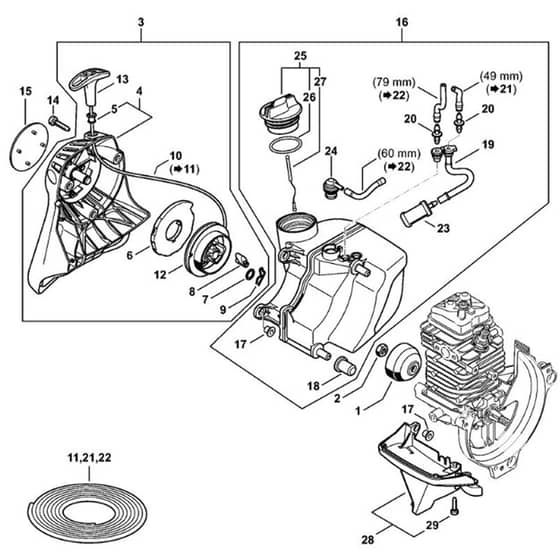

Stihl HT105 - Rewind Starter, Fuel Tank - Parts Diagram

Description

Stihl HT105 - Rewind Starter, Fuel Tank - Parts Diagram

	Part No.	Details
1	ST4223 195 0600 In stock	Starter cup	£10.37 £8.64
1	8542 In stock	Starter Cup	£6.72 £5.60
2	ST9210 261 1140 In stock	Hexagon nut M8x1	£0.72 £0.60
3	ST4182 190 4001 Available to backorder	Rewind starter (Contains 4 - 10 + 12 + 13)	£55.54 £46.28
4	ST4182 190 0401 Available to backorder	Starter cover (Contains 5)	£29.03 £24.19
5	ST9416 868 6650 In stock	Rivet 6.5x0.5x8.8	£1.43 £1.19
6	ST4180 190 0600 In stock	Rewind spring	£10.27 £8.56
6	8251 In stock	Recoil Starter Spring	£10.27 £8.56
7	ST0000 958 0923 In stock	Washer	£1.19 £0.99
8	ST4116 195 7200 In stock	Pawl	£2.36 £1.97
9	ST1118 195 3500 Available to backorder	Spring	£1.19 £0.99
10	ST0000 195 8203 In stock	Starter rope Ø 3x850 mm	£3.20 £2.67
11	ST0000 930 2208 Available to backorder	Starter rope Ø 3 mm x 30.5 m	£36.29 £30.24
11	ST0000 930 2211 Available to backorder	Starter rope Ø 3 mm x 60.8 m	£62.76 £52.30
12	ST4128 195 0400 In stock	Rope rotor	£9.30 £7.75
12	8385 In stock	Recoil Starter Pulley	£2.77 £2.31
13	ST4140 195 3400 In stock	Starter grip	£4.14 £3.45
13	8397 In stock	Starter Handle	£1.44 £1.20
14	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
15	ST4182 967 1508 Available to backorder	Model plate HT 105	£4.68 £3.90
16	ST4182 350 0401 Available to backorder	Fuel tank (Contains 17 - 20 + 23 - 27)	£65.40 £54.50
17	ST9991 003 5087 In stock	Sleeve 7.5x6.8	£0.60 £0.50
18	ST4180 352 8100 In stock	Insert	£2.02 £1.68
19	ST4182 358 7701 Available to backorder	Hose	£6.14 £5.12
20	ST4148 353 2700 Available to backorder	Connector	£2.15 £1.79
21	ST0000 937 5004 Available to backorder	Hose 3.1x5.7 mm x 1 m R5	£23.89 £19.91
22	ST0712 923 8004 In stock	Hose 3.1x5.7 mm x 10 m R3	£36.31 £30.26
22	7881 In stock	Hose (ID 3.1mm x OD 5.7mm x L 10 Metres)	£36.31 £30.26
23	ST0000 350 3521 In stock	Pickup body	£6.96 £5.80
23	5526 In stock	Fuel Filter	£3.07 £2.56
24	ST0000 350 5807 In stock	Tank vent	£10.61 £8.84
25	ST0000 350 0527 In stock	Filler cap (Contains 26 + 27)	£7.79 £6.49
25	1105 In stock	Fuel Tank Cap	£5.45 £4.54
26	ST9645 951 3890 Available to backorder	O-ring 35x3-FPM 80	£1.72 £1.43
27	ST0000 350 0900 Available to backorder	Rope	£1.31 £1.09
28	ST4180 350 6502 Available to backorder	Cover. (Contains 29)	£8.98 £7.48
29	ST9075 478 3018 In stock	Pan head self-tapping screw IS-D4x18	£0.83 £0.69
