Stihl HT105 - Gear Head - Parts Diagram

Name: Stihl HT105 - Gear Head - Parts Diagram
SKU: ht105_gear_head-group
Price: 0.6 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Stihl HT105 - Gear Head - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4182 640 0148 Available to backorder	Gear head (Contains 2 - 28)	£339.48 £282.90
2	ST4182 640 0555 Available to backorder	Gear housing (Contains 3 - 13)	£119.90 £99.92
3	ST4182 350 0306 Available to backorder	Oil tank (Contains 4 - 6)	£24.20 £20.17
4	ST4182 351 1000 Available to backorder	Gasket	£1.88 £1.57
5	ST0000 350 0529 Available to backorder	Filler cap (Contains 6)	£9.14 £7.62
6	ST9645 948 2470 In stock	O-ring 23x3	£0.72 £0.60
7	ST4182 664 2401 Available to backorder	Collar screw M8	£3.40 £2.83
8	ST1128 640 9100 Available to backorder	Valve	£4.40 £3.67
9	ST4182 640 3800 Available to backorder	Pickup body (Contains 10)	£4.84 £4.03
10	ST1117 647 6801 Available to backorder	Strainer	£2.86 £2.38
11	ST4138 640 3200 Available to backorder	Oil pump	£25.08 £20.90
12	ST1123 648 6600 Available to backorder	Bumper strip	£1.88 £1.57
13	ST0000 951 1100 In stock	Screw	£1.54 £1.28
14	ST4182 640 4300 Available to backorder	Cover	£7.26 £6.05
16	ST4138 642 8201 Available to backorder	Ring	£6.70 £5.58
17	ST4182 640 7317 Available to backorder	Set of pinions	£138.60 £115.50
18	ST9503 003 5193 Available to backorder	Grooved ball bearing DIN625-6001-2RS	£13.30 £11.08
19	ST9503 003 9863 Available to backorder	Grooved ball bearing DIN625-609-2RS	£11.98 £9.98

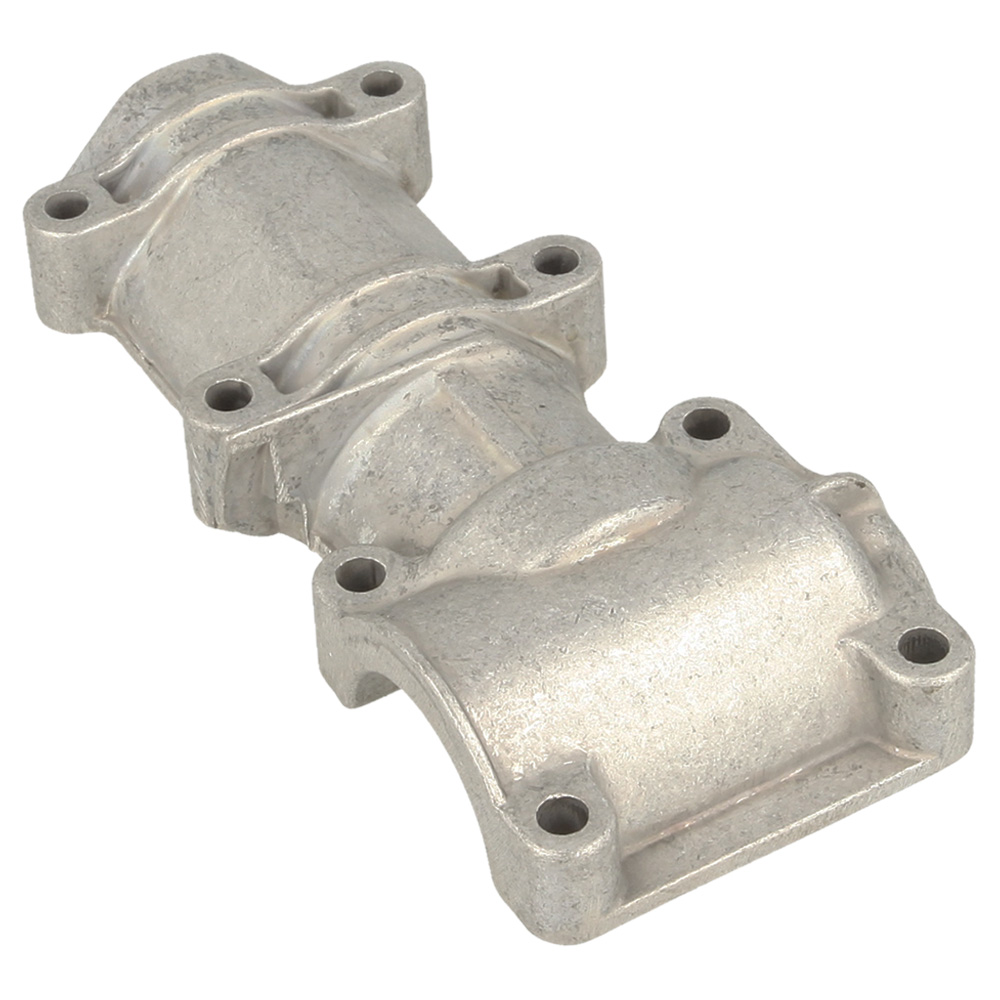

20	ST4182 641 0401 In stock	Gearbox cover	£10.56 £8.80
21	ST9022 371 1073 In stock	Spline screw IS-M5x32	£1.00 £0.83
22	ST9022 341 1050 In stock	Spline screw IS-M5x25	£1.00 £0.83
23	ST4182 660 0700 Available to backorder	Chain tightener	£22.44 £18.70
24	ST4182 160 2100 Available to backorder	Friction clutch (Contains 25)	£9.34 £7.78
25	STLA01 162 4200 Available to backorder	Collar screw	£3.74 £3.12
26	ST0000 640 2001 In stock	Chain sprocket 1/4"P 8 teeth (Contains 27)	£21.88 £18.23
27	ST4182 162 8900 In stock	Washer	£2.54 £2.12
28	ST4182 640 1702 In stock	Chain sprocket cover	£22.34 £18.62
29	ST0000 664 2415 Available to backorder	Collar screw D9/M8	£3.40 £2.83
30	ST3005 008 3405 In stock	Light 01 \| 30cm/12" \| 1/4" P \| 11mm/.043"	£33.66 £28.05
31	ST3670 000 0064 In stock	Picco Micro 3 \| 71 PM3 64 \| 1/4" P \| 11mm/.043" \| 64	£20.50 £17.08
33	ST3005 008 3403 In stock	Light 01 \| 25cm/10" \| 1/4" P \| 11mm/.043"	£29.86 £24.88
34	ST3670 000 0056 In stock	Picco Micro 3 \| 71 PM3 56 \| 1/4" P \| 11mm/.043" \| 56	£18.88 £15.73
36	ST1129 890 3401 In stock	Combination wrench	£9.02 £7.52
37	ST0781 120 1004 Available to backorder	Gear lubricant 40 g	£25.50 £21.25
