Stihl HT105 - Drive Tube Assembly - Parts Diagram

Name: Stihl HT105 - Drive Tube Assembly - Parts Diagram
SKU: ht105_drive_tube_assembly-group
Price: 0.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HT105 - Drive Tube Assembly - Parts Diagram

Description

Stihl HT105 - Drive Tube Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

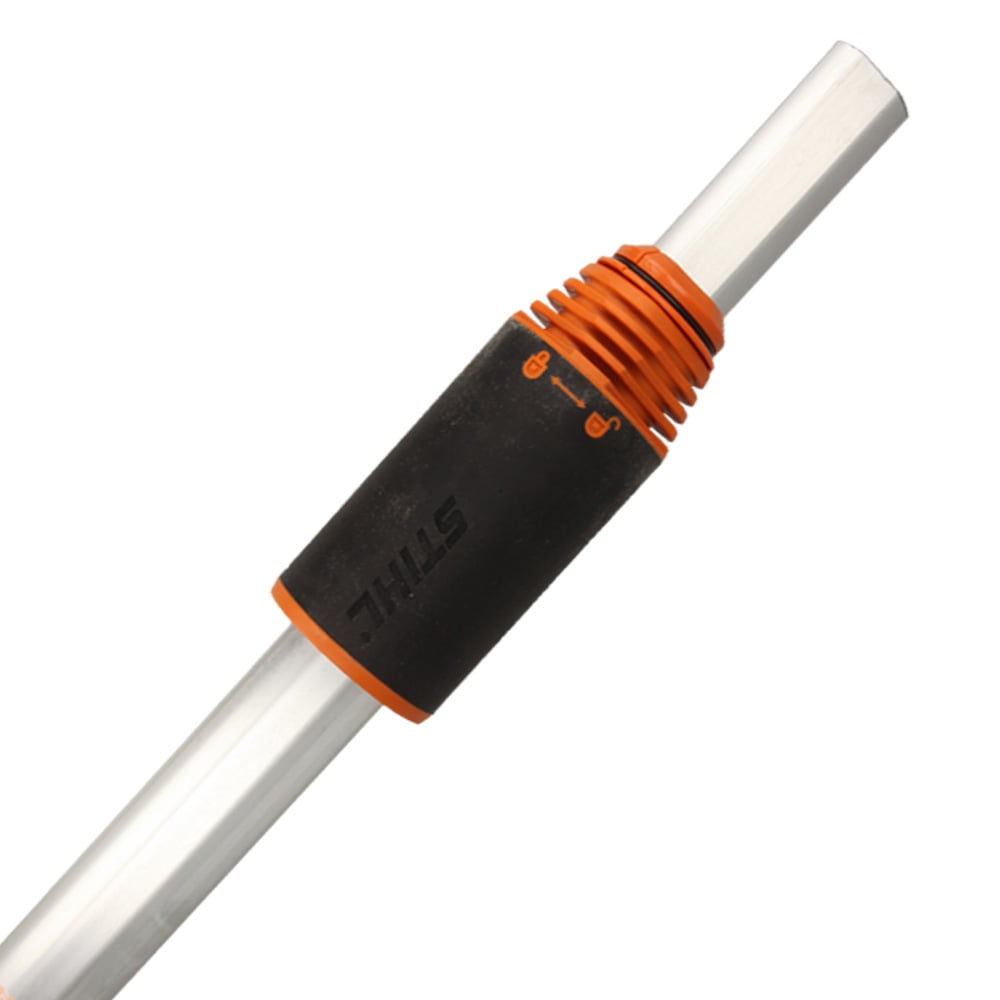

1	ST4182 710 7176 Available to backorder	Drive tube assembly (Contains 2 - 31 + 40)	£457.32 £381.10
2	ST4182 710 7157 Available to backorder	Drive tube assembly (Contains 3 - 6 + 40)	£165.36 £137.80
3	ST0000 967 7319 Available to backorder	Warning pictogram HT	£2.08 £1.73
5	ST4182 711 9822 Available to backorder	Spacer ring	£5.94 £4.95
6	ST4182 740 3209 In stock	Bearing	£45.22 £37.68
7	ST4182 710 7138 Available to backorder	Drive tube assembly 25.4-mm-x-1-mm (Contains 8 - 12)	£47.96 £39.97
8	ST4182 710 7137 Available to backorder	Drive tube assembly 25.4 mm x 1 mm (Contains 9)	£34.00 £28.33
10	ST9294 021 0140 Available to backorder	Washer 6.4	£0.48 £0.40
11	ST9022 341 1370 In stock	Pan head screw IS M6x30	£1.22 £1.02
12	ST9210 319 0900 In stock	Hexagon nut M6	£0.44 £0.37
13	ST4182 820 1600 Available to backorder	Nut (Contains 14 - 20)	£64.90 £54.08
14	ST4182 716 6520 In stock	Clamp	£21.02 £17.52
15	ST9440 003 1851 In stock	Blind rivet 3x5-ST/ST (ref 4 & 15)	£0.76 £0.63
16	ST4182 007 1005 Available to backorder	Kit spring washer	£8.68 £7.23
17	ST4182 716 9400 Available to backorder	Spacer ring	£5.18 £4.32
18	ST4182 716 0320 Available to backorder	Nut	£18.38 £15.32
19	ST4182 007 0800 Available to backorder	Set O-ring (Contains 20)	£4.84 £4.03
20	ST9645 948 7895 Available to backorder	O-ring N 33x25	£0.76 £0.63
21	ST4182 007 1010 Available to backorder	Cap kit (Contains 22 + 23)	£7.26 £6.05
22	ST4133 717 2000 Available to backorder	Cap	£2.20 £1.83
23	ST4182 717 2000 In stock	Cap	£2.42 £2.02

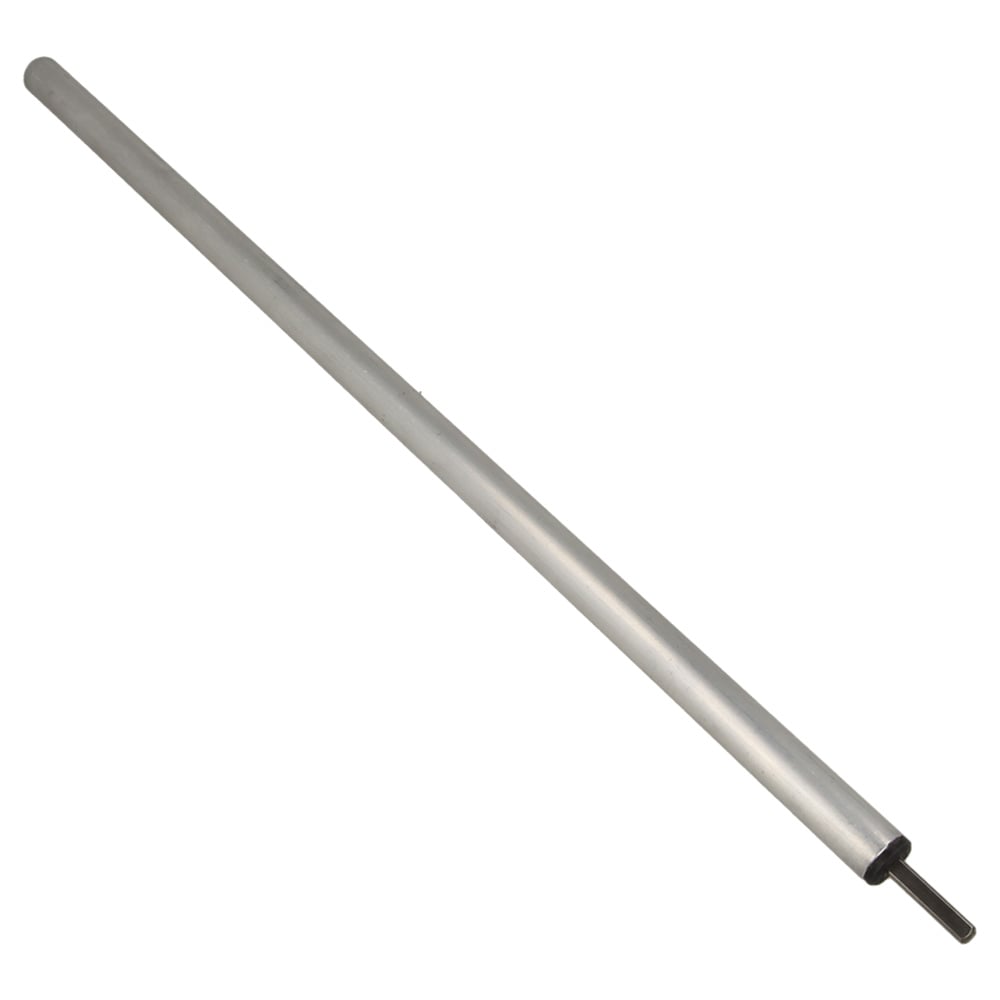

24	ST4182 710 3237 Available to backorder	Drive shaft (Contains 25)	£105.12 £87.60
25	ST4182 740 3503 Available to backorder	Driver	£15.62 £13.02
26	STLA01 711 7311 Available to backorder	Flexible liner	£4.52 £3.77
27	ST9458 621 1130 In stock	Snap ring 12	£0.66 £0.55
28	ST4138 711 9002 Available to backorder	Ring	£3.20 £2.67
29	ST4182 007 0601 Available to backorder	Set of bearings (Contains 30 + 31)	£108.90 £90.75
30	ST4138 711 9100 Available to backorder	Spring	£2.98 £2.48
31	ST9438 003 3171 Available to backorder	Blind rivet 4x6.5 (ref 9 & 31)	£0.88 £0.73
32	ST0000 790 8600 Available to backorder	Clip HT (Contains 33)	£13.20 £11.00
33	ST0000 791 3110 Available to backorder	Spring	£2.32 £1.93
34	ST4182 710 3234 Available to backorder	Drive shaft (Contains 35)	£106.16 £88.47
35	ST4248 740 3501 Available to backorder	Driver	£20.02 £16.68
36	ST4182 710 7144 Available to backorder	Drive tube assembly (Contains 5 + 37 - 40)	£148.50 £123.75
37	ST4182 740 3203 Available to backorder	Bearing	£45.88 £38.23
38	ST9440 794 2435 In stock	Blind rivet A48x6-Al/St FH	£1.00 £0.83
40	ST4182 711 7322 Available to backorder	Flexible liner	£17.82 £14.85
41	ST0781 120 1022 Out of stock	Grease for telescopic boom	£3.37 £2.81
42	ST0781 957 9000 In stock	Press fluid OH 723	£6.04 £5.03
