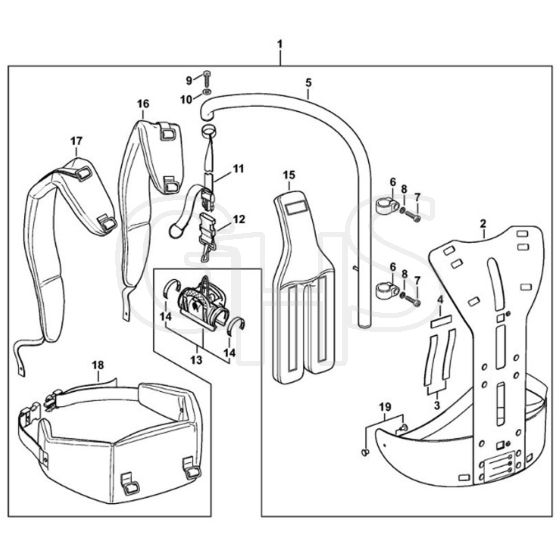

Stihl HT105 - Back Mounted Support System Rts - Parts Diagram

Name: Stihl HT105 - Back Mounted Support System Rts - Parts Diagram
SKU: ht105_back_mounted_support_system_rts-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HT105 - Back Mounted Support System Rts - Parts Diagram

Description

Stihl HT105 - Back Mounted Support System Rts - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 790 4400 Available to backorder	Back mounted support system RTS (Contains 2 - 12 + 15 - 19)	£156.20 £130.17
4	ST4182 792 2100 Available to backorder	Cling strip	£6.70 £5.58
6	ST4182 791 9400 Available to backorder	Hose clamp	£4.52 £3.77
7	ST9022 341 1070 In stock	Spline screw IS-M5x30	£0.98 £0.82
8	ST9291 021 0120 Available to backorder	Washer 5.3	£0.48 £0.40
9	ST0000 951 1100 In stock	Screw	£1.54 £1.28
10	ST9307 021 0120 Available to backorder	Washer 5.3	£0.48 £0.40
11	ST4182 791 8000 In stock	Webbing	£9.58 £7.98
12	ST4249 710 6900 Available to backorder	Spring safety hook	£12.10 £10.08
13	ST0000 790 8600 Available to backorder	Clip HT (Contains 14)	£13.20 £11.00
14	ST0000 791 3110 Available to backorder	Spring	£2.32 £1.93
15	ST4182 790 8000 Available to backorder	Back rest pad	£56.38 £46.98
18	ST4182 710 9100 Available to backorder	Lap belt	£52.24 £43.53
