Stihl HSA60.1 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

Description

Stihl HSA60.1 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

	Part No.	Details
1	STHA07 640 0700 Available to backorder	Planetary gearbox	£86.88 £72.40
2	STHA06 600 0201 Available to backorder	Electric motor (Contains 3)	£128.76 £107.30
4	STHA07 007 1000 Available to backorder	Kit RINGPUFFER	£5.00 £4.17
5	STHA06 640 1600 Available to backorder	Cam	£44.05 £36.71
6	STHA06 642 4800 Available to backorder	Thrust plate	£4.68 £3.90
7	STHA07 640 5801 Available to backorder	Gearbox cover (Contains 8 - 10)	£36.86 £30.72
8	ST9503 003 9351 Available to backorder	Grooved ball bearing DIN625-607-2RS	£8.88 £7.40
9	ST9381 651 2550 Available to backorder	Cylindrical pin DIN6325-5m6x12	£0.46 £0.38
10	ST4226 641 6500 In stock	Plug screw	£2.72 £2.27
11	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.79 £0.66
12	ST9022 341 1070 In stock	Spline screw IS-M5x30	£1.04 £0.87

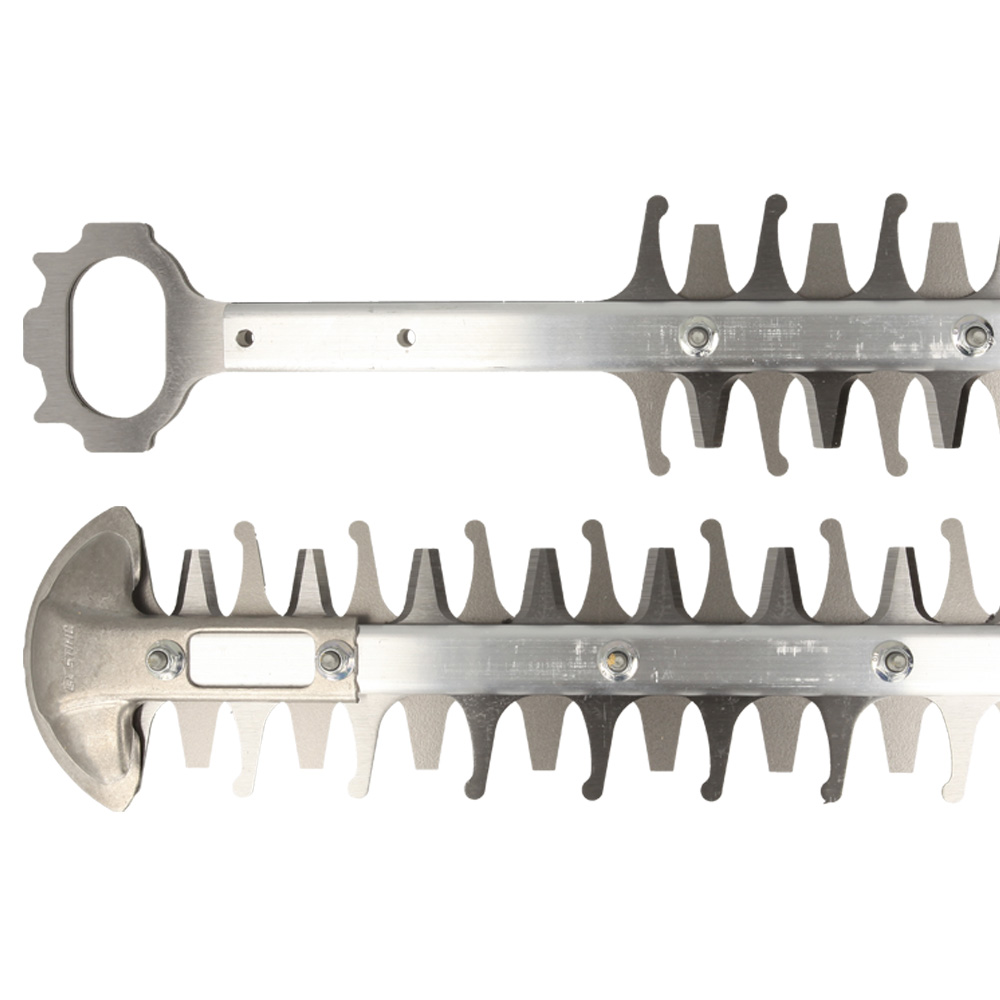

13	STHA06 710 5902 Available to backorder	Cutter bar assy. 600 mm / 24" (Contains 14 - 24)	£101.76 £84.80
14	STHA07 641 4600 Available to backorder	Guide	£16.61 £13.84
15	STHA07 713 2200 Available to backorder	Blade friction plate	£13.76 £11.47
16	ST4242 641 4900 In stock	Sleeve 4.4 mm	£1.18 £0.98
18	ST4237 958 0500 In stock	Washer	£1.43 £1.19
19	STHA07 641 4900 Available to backorder	Sleeve	£1.46 £1.22
20	STHA07 642 5100 Available to backorder	Support plate	£15.02 £12.52
21	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.08 £0.90
22	ST4237 792 9006 In stock	Guide guard	£14.95 £12.46
23	ST9216 263 0710 In stock	Hexagon nut M5	£0.48 £0.40
24	ST4237 790 9208 Available to backorder	Blade guard 600 mm / 24"	£17.86 £14.88
25	ST0781 110 1011 Available to backorder	Special grease (DC4)	£22.08 £18.40
