Stihl HSA56 - Motor Housing, Electronic Module - Parts Diagram

Name: Stihl HSA56 - Motor Housing, Electronic Module - Parts Diagram
SKU: hsa56_motor_housing_electronic_module-group
Price: 0.66 GBP
Availability: InStock

Part No. hsa56_motor_housing_electronic_module-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HSA56 - Motor Housing, Electronic Module - Parts Diagram

Description

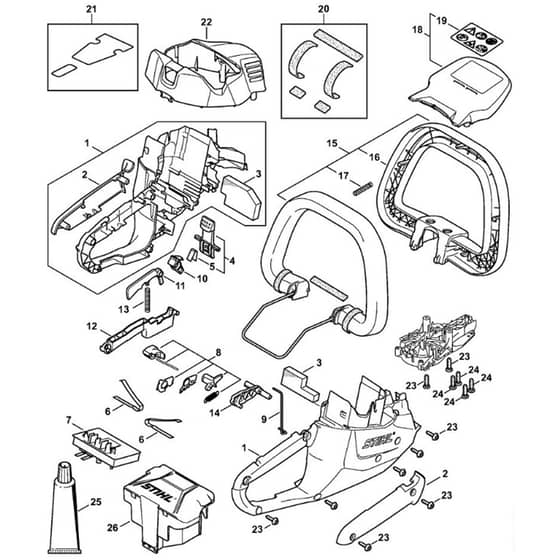

Stihl HSA56 - Motor Housing, Electronic Module - Parts Diagram

	Part No.	Details
1	ST4521 600 0802 Available to backorder	Motor housing (Contains 45353)	£57.46 £47.88
2	ST4521 790 0600 Available to backorder	Handle molding	£6.49 £5.41
3	ST4521 080 1900 Available to backorder	Filter	£3.41 £2.84
4	ST4522 430 9800 In stock	Battery latch (Contains 5)	£4.01 £3.34
5	ST0000 997 2201 In stock	Spring	£1.43 £1.19
6	ST4522 791 3100 Available to backorder	Spring	£1.69 £1.41
7	ST4521 430 1401 Available to backorder	Electronic module	£63.84 £53.20
8	ST4521 007 3501 Available to backorder	Shift cam kit	£6.25 £5.21
9	ST4521 185 1900 Available to backorder	Linkage	£2.51 £2.09
10	ST4521 435 2800 Available to backorder	Detent lever	£3.52 £2.93
11	ST4521 435 6300 Available to backorder	Trigger switch lockout	£4.32 £3.60
12	ST4521 435 2400 Available to backorder	Trigger switch	£7.18 £5.98
13	ST0000 997 3103 Available to backorder	Compression spring	£1.31 £1.09
14	ST4521 435 7200 Available to backorder	Rocker arm	£3.52 £2.93
15	ST4521 790 1200 Available to backorder	Loop handle (Contains 16 + 17)	£24.94 £20.78
16	ST4851 791 2300 Available to backorder	Loop handle	£20.94 £17.45
17	ST6460 716 2400 Available to backorder	Compression spring	£1.14 £0.95
20	ST4521 007 1600 Available to backorder	Set of gaskets	£3.64 £3.03
21	ST4521 007 1000 Available to backorder	Set of adhesive films	£2.63 £2.19
22	ST4521 602 0400 Available to backorder	Cover	£9.23 £7.69
23	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.79 £0.66
24	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.83 £0.69
25	ST0781 110 1011 Available to backorder	Special grease (DC4)	£22.08 £18.40
26	ST4520 602 0900 Available to backorder	Battery compartment cover	£5.38 £4.48
