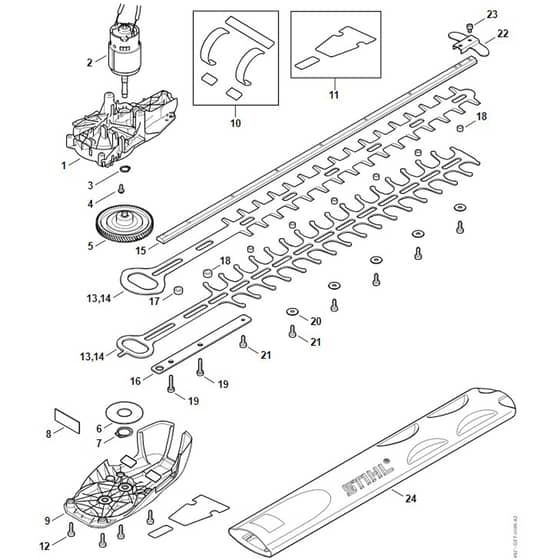

Stihl HSA56 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

Name: Stihl HSA56 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram
SKU: hsa56_gear_head_electric_motor_cutter_bar-group
Price: 0.6 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HSA56 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

Description

Stihl HSA56 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4521 640 0500 Available to backorder	Gear housing (Contains 4)	£41.58 £34.65
2	ST4521 600 0201 Available to backorder	Electric motor	£84.70 £70.58
3	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
4	ST9104 003 2960 Available to backorder	Self-tapping screw P4x10	£0.76 £0.63

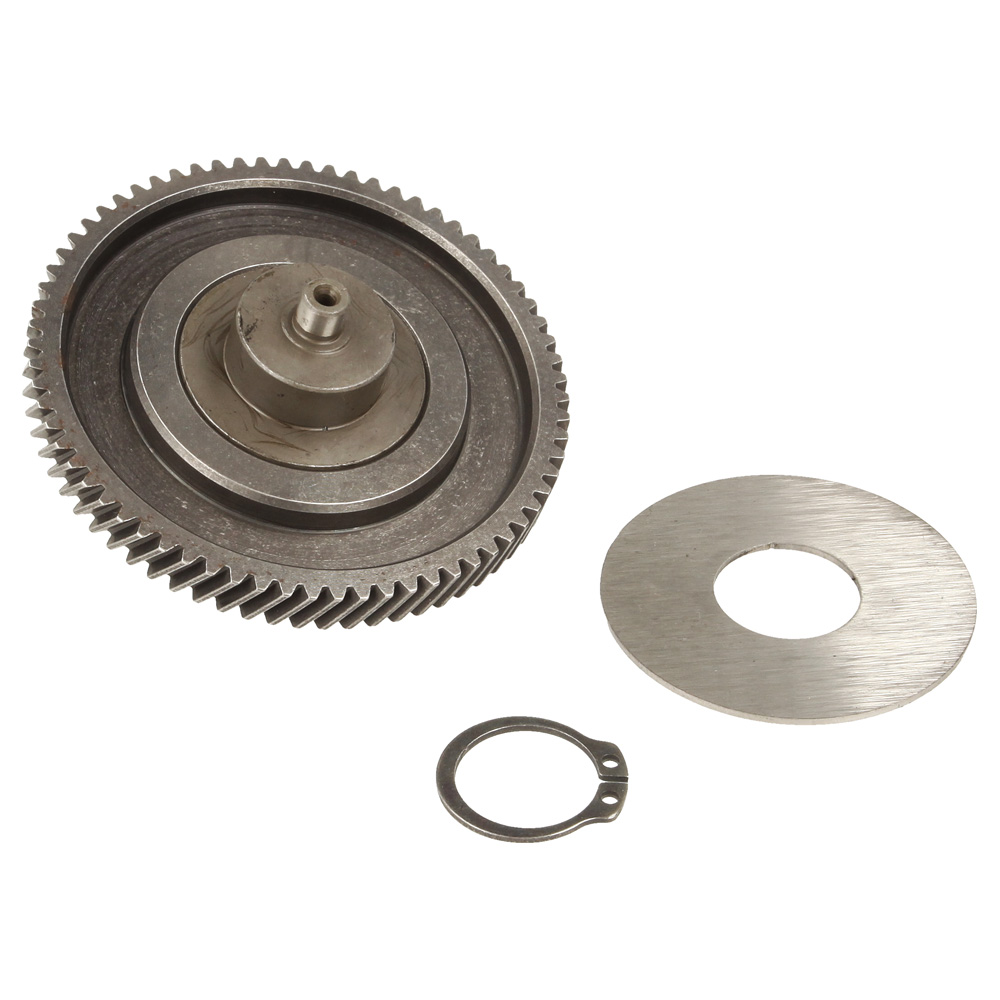

5	ST4521 640 1600 Available to backorder	Cam (Contains 45479)	£75.90 £63.25
6	ST4521 642 8700 Available to backorder	Thrust washer	£3.30 £2.75
7	ST9455 621 2150 In stock	Circlip 20x1.2	£0.89 £0.74
8	ST4521 642 5100 Available to backorder	Supporting plate	£2.20 £1.83

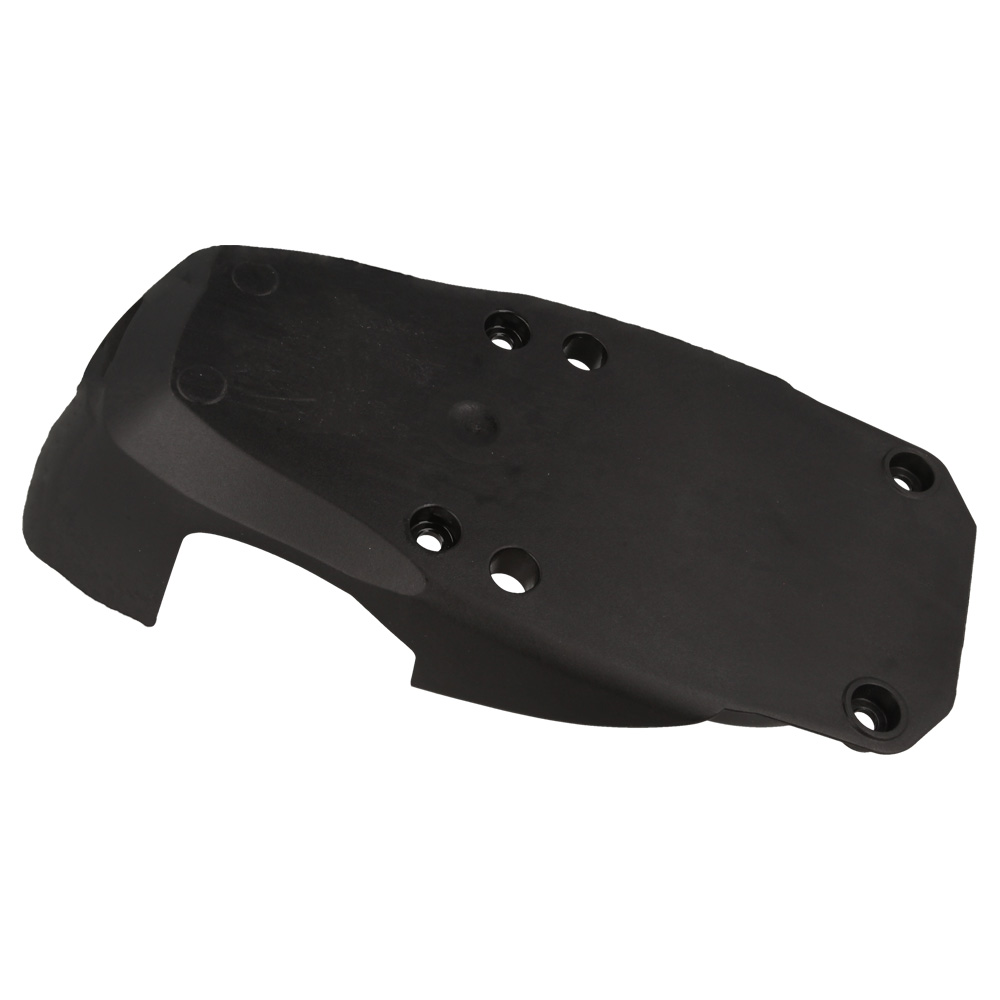

9	ST4521 640 5800 Available to backorder	Gearbox cover	£46.64 £38.87
10	ST4521 007 1600 Available to backorder	Set of gaskets	£3.52 £2.93
11	ST4521 007 1000 Available to backorder	Set of adhesive films	£2.54 £2.12
12	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.88 £0.73

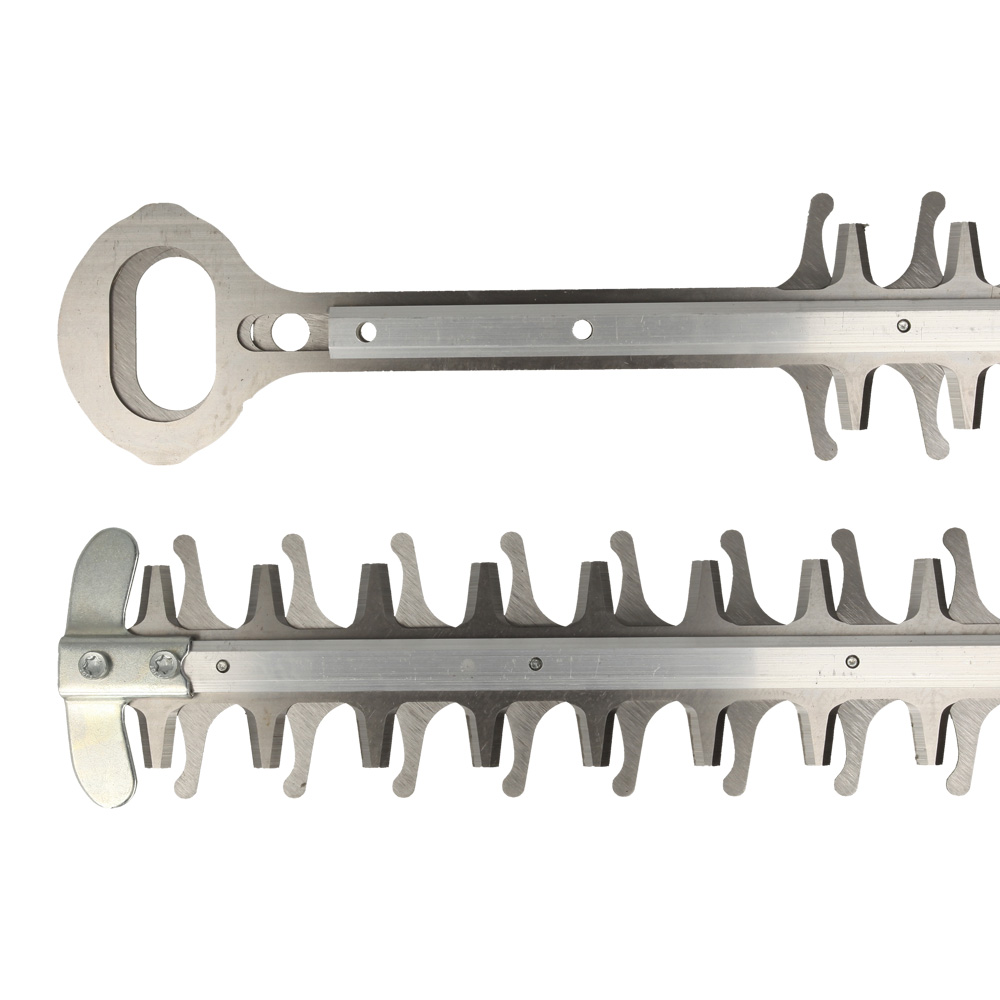

13	ST4521 710 5900 Available to backorder	Cutter bar assy. 450 mm / 18" (Contains 14 - 23)	£96.60 £80.50

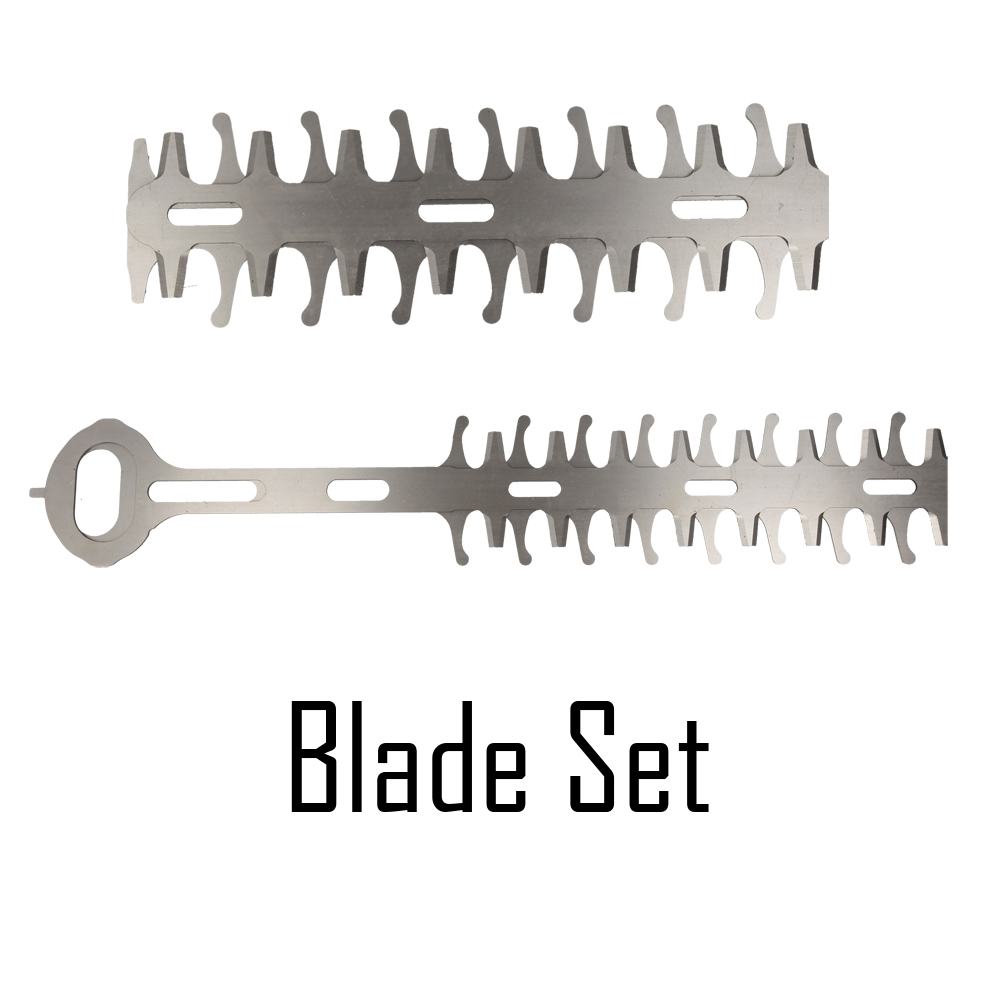

14	ST4521 710 6000 Available to backorder	Set of Blades	£80.86 £67.38
15	ST4521 713 6700 Available to backorder	Guide	£15.18 £12.65
16	ST4521 711 4800 Available to backorder	Reinforcement	£10.90 £9.08
17	ST4521 648 6701 In stock	Slider	£1.88 £1.57
18	ST4521 648 6700 Available to backorder	Slider	£1.88 £1.57
19	ST9075 478 4175 In stock	Pan head self-tapping screw IS-D5x28	£1.00 £0.83
20	ST9298 003 3540 In stock	Washer	£1.00 £0.83
21	ST9075 478 2995 In stock	Pan head self-tapping screw IS-D4x12	£0.76 £0.63
22	ST4818 792 9000 Available to backorder	Guide guard	£5.28 £4.40
23	ST9075 478 0630 Available to backorder	Pan head self-tapping screw IS-D4x8	£0.76 £0.63
24	ST0000 792 9600 In stock	Cutter guard 500 mm / 20"	£13.10 £10.92
