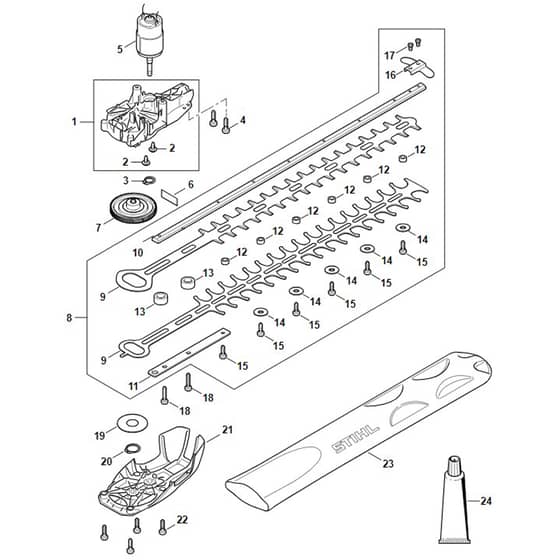

Stihl HSA50 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

Name: Stihl HSA50 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram
SKU: hsa50_gear_head_electric_motor_cutter_bar-group
Price: 0.6 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HSA50 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

Description

Stihl HSA50 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4521 640 0500 Available to backorder	Gear housing (Contains 2)	£41.58 £34.65
2	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.76 £0.63
3	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
4	ST9104 003 2960 Available to backorder	Self-tapping screw P4x10	£0.76 £0.63
5	ST4521 600 0203 Available to backorder	Electric motor	£84.70 £70.58
6	ST4521 642 5100 Available to backorder	Supporting plate	£2.20 £1.83
7	ST4521 640 1604 Available to backorder	Cam	£76.46 £63.72
8	ST4521 710 5902 Available to backorder	Cutter bar assy. 500 mm / 20" (Contains 9 - 17)	£109.46 £91.22
9	ST4521 710 6002 Available to backorder	Blade	£87.46 £72.88
10	ST4521 713 6702 Available to backorder	Guide	£15.28 £12.73
11	ST4521 711 4800 Available to backorder	Reinforcement	£10.90 £9.08
12	ST4521 648 6700 Available to backorder	Slider	£1.88 £1.57
13	ST4521 648 6701 In stock	Slider	£1.88 £1.57
14	ST9298 003 3540 In stock	Washer	£1.00 £0.83
15	ST9075 478 3015 In stock	Pan head self-tapping screw IS-D4x15	£0.77 £0.64
16	ST4818 792 9000 Available to backorder	Guide guard	£5.28 £4.40
17	ST9075 478 0630 Available to backorder	Pan head self-tapping screw IS-D4x8	£0.76 £0.63
18	ST9075 478 4175 In stock	Pan head self-tapping screw IS-D5x28	£1.00 £0.83
19	ST4521 642 8700 Available to backorder	Thrust washer	£3.30 £2.75
20	ST9455 621 2150 In stock	Circlip 20x1.2	£0.89 £0.74
21	ST4521 640 5800 Available to backorder	Gearbox cover	£46.64 £38.87
22	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.88 £0.73
23	ST0000 792 9600 In stock	Cutter guard 500 mm / 20"	£13.10 £10.92
24	ST0781 110 1011 Available to backorder	Special grease (DC4)	£21.34 £17.78
