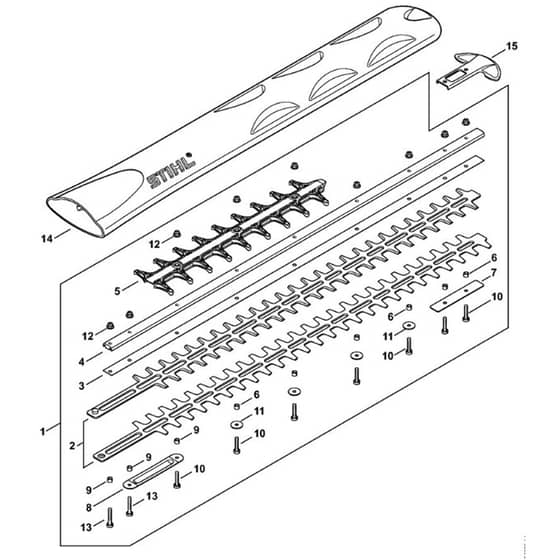

Stihl HSA130T - Cutter Bar 750 Mm - 30" T - Parts Diagram

Description

Stihl HSA130T - Cutter Bar 750 Mm - 30" T - Parts Diagram

	Part No.	Details
1	ST4869 710 5901 Available to backorder	Cutter bar assy. 750 mm/30" T (Contains 2 - 13)	£243.48 £202.90
2	ST4237 710 6052 In stock	Blade 750 mm / 30" T	£198.00 £165.00
3	ST4237 713 2201 Available to backorder	Blade friction plate 750 mm / 30" T	£14.23 £11.86
4	ST4237 641 4602 Available to backorder	Guide 750 mm / 30" T	£17.06 £14.22
5	ST4869 740 9500 Available to backorder	Cutter guard T	£19.80 £16.50
6	ST4237 641 4903 In stock	Sleeve 4.92 mm	£1.19 £0.99
7	ST4237 717 3100 Available to backorder	Cover plate	£7.06 £5.88
8	ST4237 711 4800 Available to backorder	Stiffener	£7.06 £5.88
9	ST4237 711 2500 In stock	Sleeve 4.87 mm	£1.52 £1.27
10	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.08 £0.90
11	ST4237 958 0500 In stock	Washer	£1.43 £1.19
12	ST9216 263 0710 In stock	Hexagon nut M5	£0.48 £0.40
13	ST9022 341 1070 In stock	Spline screw IS-M5x30	£1.04 £0.87
14	ST4237 790 9207 In stock	Blade guard 750 mm / 30"	£18.54 £15.45
15	ST4237 792 9006 In stock	Guide guard	£14.95 £12.46
