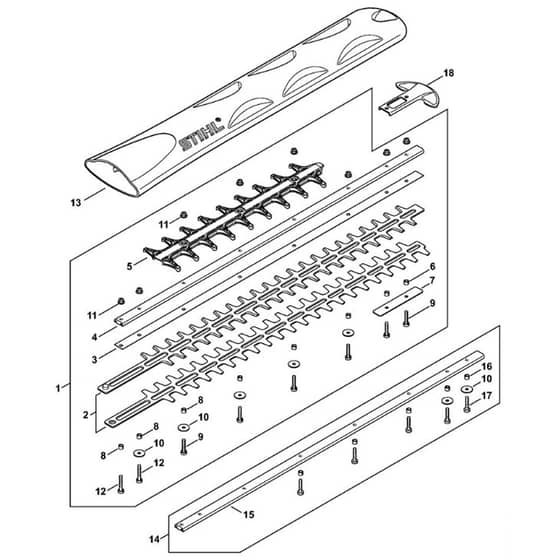

Stihl HSA130T - Cutter Bar 600 Mm - 24" T - Parts Diagram

Name: Stihl HSA130T - Cutter Bar 600 Mm - 24" T - Parts Diagram
SKU: hsa130t_cutter_bar_600_mm_24_t-group
Price: 0.4 GBP
Availability: InStock

Part No. hsa130t_cutter_bar_600_mm_24_t-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HSA130T - Cutter Bar 600 Mm - 24" T - Parts Diagram

Description

Stihl HSA130T - Cutter Bar 600 Mm - 24" T - Parts Diagram

	Part No.	Details
1	ST4869 710 5902 Available to backorder	Cutter bar assy. 600 mm/24" T (Contains 2 - 12)	£204.48 £170.40
2	ST4237 710 6051 In stock	Blade 600 mm / 24" T	£166.08 £138.40
3	ST4237 713 2200 Available to backorder	Blade friction plate 600 mm / 24" T	£13.43 £11.19
4	ST4237 641 4601 Available to backorder	Guide 600 mm / 24" T	£16.61 £13.84
5	ST4869 740 9500 Available to backorder	Cutter guard T	£19.80 £16.50
6	ST4237 641 4903 In stock	Sleeve 4.92 mm	£1.19 £0.99
7	ST4237 717 3100 Available to backorder	Cover plate	£7.06 £5.88
8	ST4237 711 2500 In stock	Sleeve 4.87 mm	£1.52 £1.27
9	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.08 £0.90
10	ST4237 958 0500 In stock	Washer	£1.43 £1.19
11	ST9216 263 0710 In stock	Hexagon nut M5	£0.48 £0.40
12	ST9022 341 1070 In stock	Spline screw IS-M5x30	£1.04 £0.87
13	ST4237 790 9208 Available to backorder	Blade guard 600 mm / 24"	£17.86 £14.88
14	ST4237 007 1001 Available to backorder	Blade clearance adjuster kit 600 mm / 24" T (Contains 10 + 15 - 17)	£28.22 £23.52
15	ST4237 740 6501 Available to backorder	Guide 600 mm / 24" T	£16.61 £13.84
16	ST4237 641 4900 Available to backorder	Sleeve 8 x 3.8 mm	£1.14 £0.95
17	ST4237 716 0400 Available to backorder	Spline screw IS-M5x25	£1.76 £1.47
18	ST4237 792 9006 In stock	Guide guard	£14.95 £12.46
