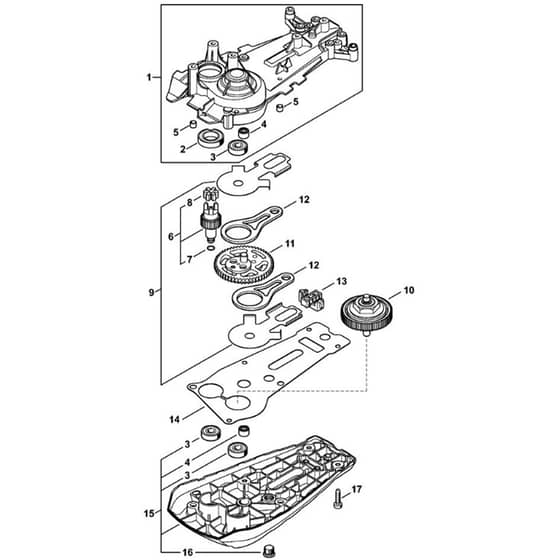

Stihl HSA130R - Gear Head Hsa 94 R - Parts Diagram

Part No. hsa130r_gear_head_hsa_94_r-group

Description

	Part No.	Details
1	ST4869 640 0500 Available to backorder	Gear housing (Contains 2 - 5)	£87.48 £72.90
2	ST9503 003 8212 Available to backorder	Grooved ball bearing DIN625-6903-2Z	£11.60 £9.67
3	ST9503 003 9672 Available to backorder	Grooved ball bearing DIN625-608-ZZ	£12.06 £10.05
4	ST9513 003 0912 In stock	Needle cage 8x12x8	£7.32 £6.10
5	ST0000 988 8600 In stock	Sleeve	£1.19 £0.99

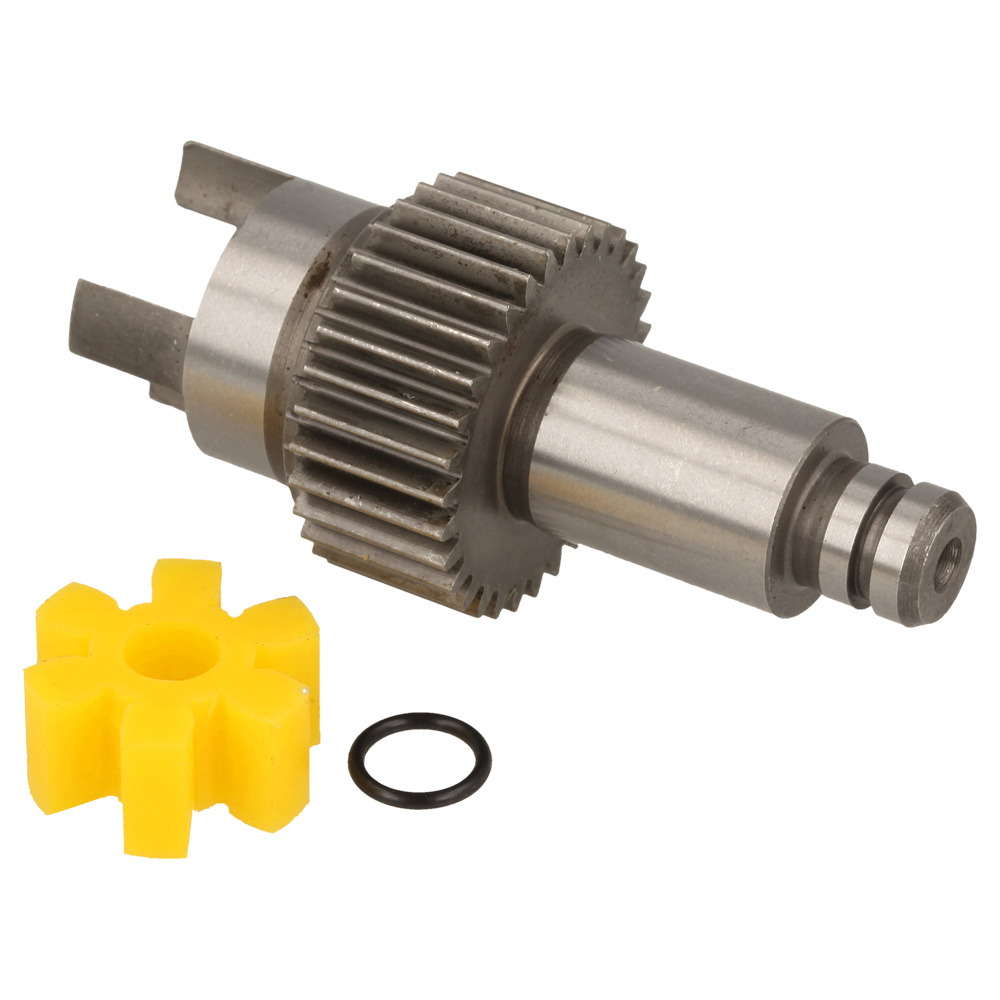

6	ST4869 640 2500 Available to backorder	Drive pinion (Contains 45511)	£29.81 £24.84
8	ST4869 162 1100 Available to backorder	Buffer	£5.46 £4.55
9	ST4869 640 8200 Available to backorder	Thrust plate R	£8.20 £6.83
10	ST4869 160 2100 Available to backorder	Friction clutch R	£94.08 £78.40
11	ST4237 640 7501 In stock	Spur gear	£63.05 £52.54
12	ST4226 642 6501 In stock	Connecting rod	£22.87 £19.06
13	ST4237 649 0304 In stock	Gasket	£2.23 £1.86
14	ST4869 649 0300 Available to backorder	Gasket	£3.19 £2.66
15	ST4869 640 5802 Available to backorder	Gearbox cover (Contains 42463)	£89.64 £74.70
16	ST4226 641 6500 In stock	Plug screw	£2.72 £2.27
17	ST9075 478 4136 In stock	Pan head self-tapping screw IS-D5x20	£0.95 £0.79
