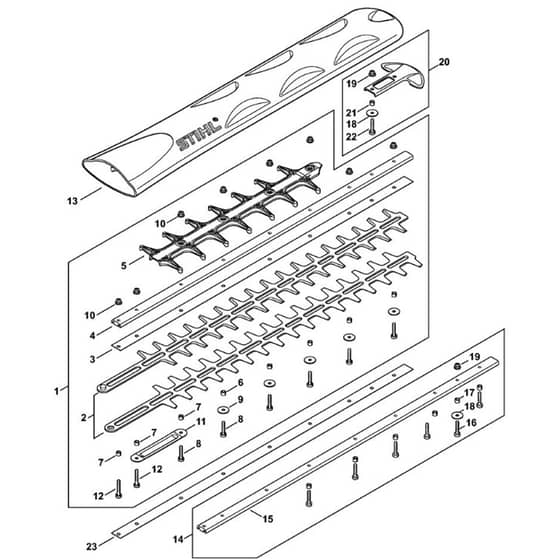

Stihl HSA130R - Cutter Bar 600 Mm - 24" R - Parts Diagram

Name: Stihl HSA130R - Cutter Bar 600 Mm - 24" R - Parts Diagram
SKU: hsa130r_cutter_bar_600_mm_24_r-group
Price: 0.4 GBP
Availability: InStock

Part No. hsa130r_cutter_bar_600_mm_24_r-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HSA130R - Cutter Bar 600 Mm - 24" R - Parts Diagram

Description

Stihl HSA130R - Cutter Bar 600 Mm - 24" R - Parts Diagram

	Part No.	Details
1	ST4869 710 5903 Available to backorder	Cutter bar assy. 600 mm/24" R (Contains 2 - 12)	£204.48 £170.40
2	ST4237 710 6053 In stock	Blade 600 mm / 24" R	£171.82 £143.18
3	ST4237 713 2203 In stock	Blade friction plate 600 mm / 24" R	£14.63 £12.19
4	ST4237 641 4600 In stock	Guide 600 mm / 24" R	£17.45 £14.54
5	ST4869 740 9501 Available to backorder	Cutter guard R	£21.62 £18.02
7	ST4237 711 2501 In stock	Sleeve 5.57 mm	£1.76 £1.47
10	ST9216 263 0710 In stock	Hexagon nut M5	£0.48 £0.40
11	ST4237 711 4800 Available to backorder	Stiffener	£7.06 £5.88
12	ST9022 341 1070 In stock	Spline screw IS-M5x30	£1.04 £0.87
13	ST4237 790 9208 Available to backorder	Blade guard 600 mm / 24"	£17.86 £14.88
14	ST4237 007 1008 Available to backorder	Blade clearance adjuster kit 600 mm / 24" R (Contains 15 - 19)	£28.22 £23.52
15	ST4237 740 6504 In stock	Guide 600 mm / 24" R	£16.84 £14.03
16	ST4237 716 0400 Available to backorder	Spline screw IS-M5x25	£1.76 £1.47
17	ST4237 641 4902 Available to backorder	Sleeve 8 x 4.5 mm	£1.14 £0.95
18	ST4237 958 0500 In stock	Washer	£1.43 £1.19
20	ST4237 790 9802 Available to backorder	Guide guard (Contains 18 + 19 + 21 + 22)	£20.71 £17.26
21	ST4237 641 4901 In stock	Sleeve 8 x 5.62 mm	£1.16 £0.97
22	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.08 £0.90
23	ST4237 717 3105 Available to backorder	Cover plate	£23.66 £19.72
