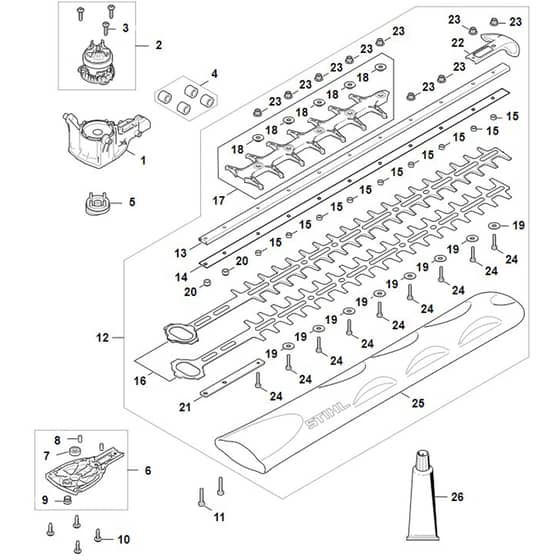

Stihl HSA100.1 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

Description

Stihl HSA100.1 - Gear Head, Electric Motor, Cutter Bar - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STHA07 640 0700 Available to backorder	Planetary gearbox	£86.90 £72.42
2	STHA07 600 0202 Available to backorder	Electric motor (Contains 3)	£128.70 £107.25
4	STHA07 007 1000 Available to backorder	Kit RINGPUFFER	£4.84 £4.03
5	STHA07 640 1600 Available to backorder	Cam	£41.26 £34.38
6	STHA07 640 5801 Available to backorder	Gearbox cover (Contains 7 - 9)	£35.64 £29.70
7	ST9503 003 9351 Available to backorder	Grooved ball bearing DIN625-607-2RS	£8.58 £7.15
8	ST9381 651 2550 Available to backorder	Cylindrical pin DIN6325-5m6x12	£0.48 £0.40
9	ST4226 641 6500 In stock	Plug screw	£2.54 £2.12
10	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.76 £0.63
11	ST9022 341 1070 In stock	Spline screw IS-M5x30	£0.98 £0.82
12	STHA07 710 5902 Available to backorder	Cutter bar assy. 600 mm / 24" (Contains 13 - 25)	£191.40 £159.50

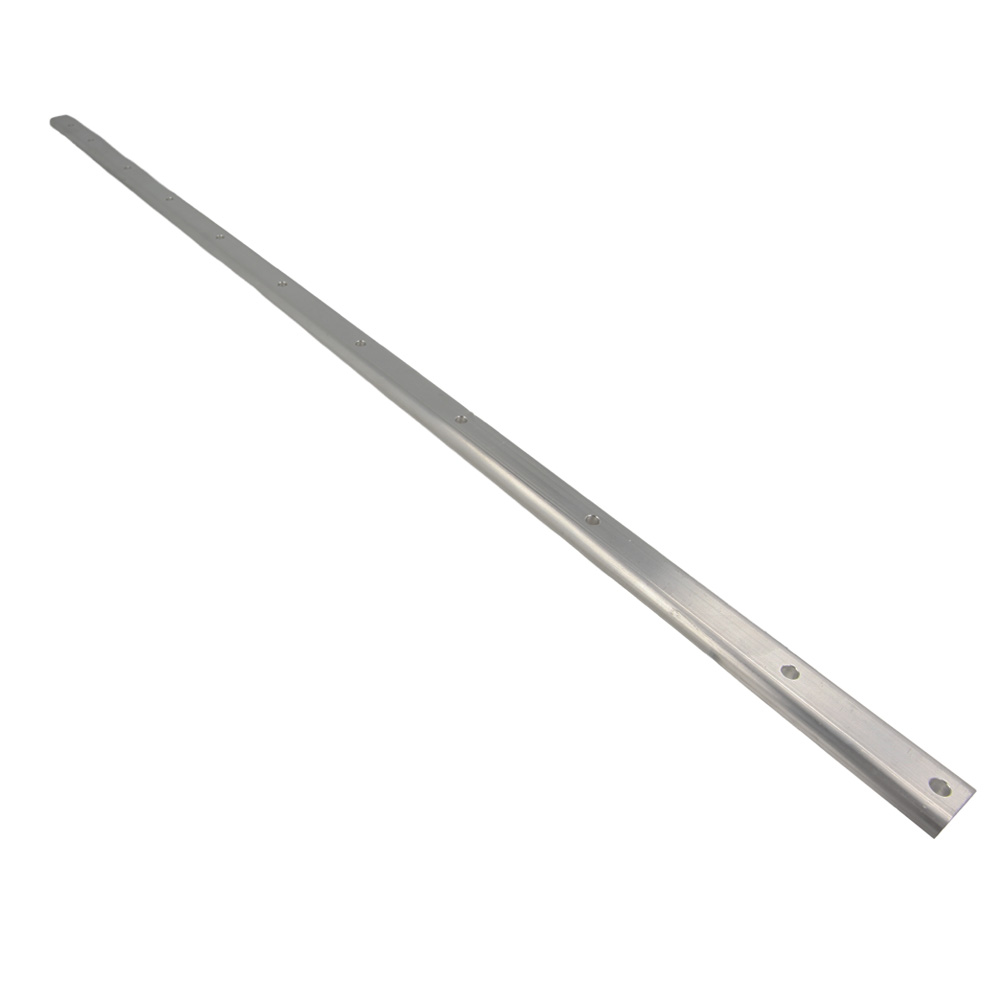

13	STHA07 641 4600 Available to backorder	Guide	£16.06 £13.38
14	STHA07 713 2200 Available to backorder	Blade friction plate	£13.30 £11.08
15	ST4242 641 4900 In stock	Sleeve 4.4 mm	£1.10 £0.92

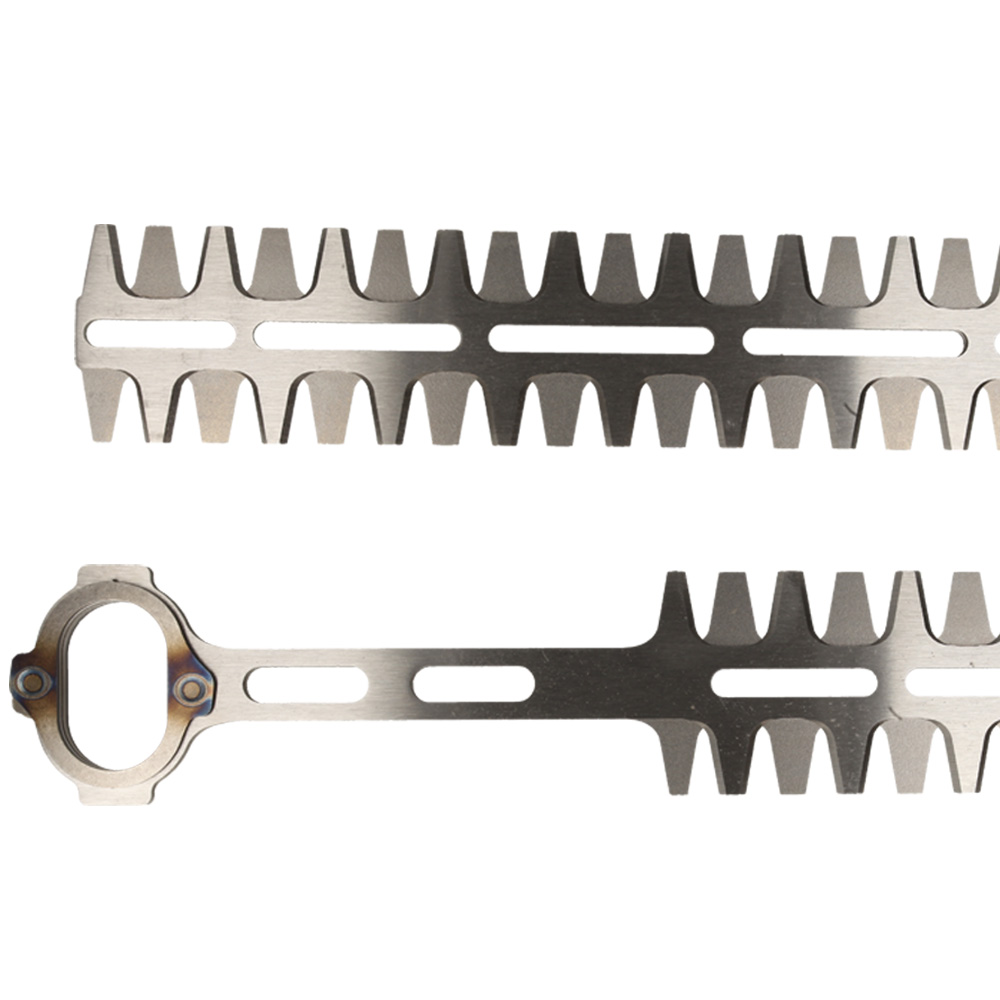

16	STHA07 710 6002 Available to backorder	Blade 600 mm / 24"	£146.76 £122.30
17	STHA07 740 9500 Available to backorder	Cutter guard (Contains 18)	£19.80 £16.50
18	ST4237 716 3600 Available to backorder	Bushing	£1.42 £1.18
19	ST4237 958 0500 In stock	Washer	£1.32 £1.10
20	STHA07 641 4900 Available to backorder	Sleeve	£1.42 £1.18
21	STHA07 642 5100 Available to backorder	Support plate	£14.52 £12.10
22	ST4237 792 9006 In stock	Guide guard	£13.96 £11.63
23	ST9216 263 0710 In stock	Hexagon nut M5	£0.44 £0.37
24	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.00 £0.83
25	ST4237 790 9208 Available to backorder	Blade guard 600 mm / 24"	£17.26 £14.38
26	ST0781 120 1109 In stock	Multi-purpose grease (tube 80 g)	£9.12 £7.60
