Stihl HLA86 - Gear Head, Electric Motor - Parts Diagram

Description

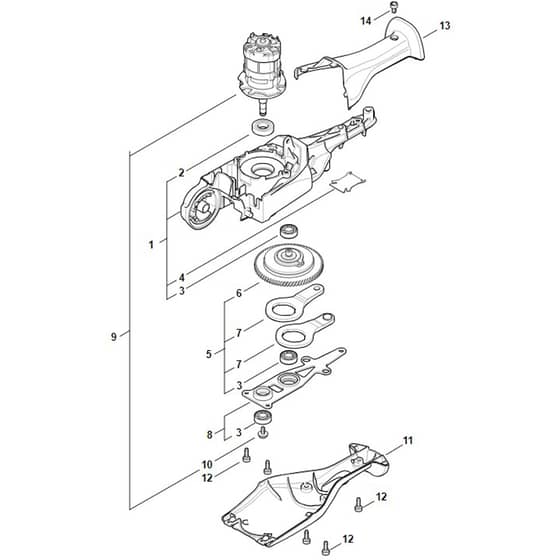

Stihl HLA86 - Gear Head, Electric Motor - Parts Diagram

	Part No.	Details
1	ST4859 640 0515 In stock	Gear housing (Contains 2 - 4)	£77.96 £64.97
2	ST9503 003 8058 Available to backorder	Grooved ball bearing DIN625-61901-2Z	£10.98 £9.15
3	ST9503 003 9371 In stock	Grooved ball bearing 607-2Z	£10.98 £9.15

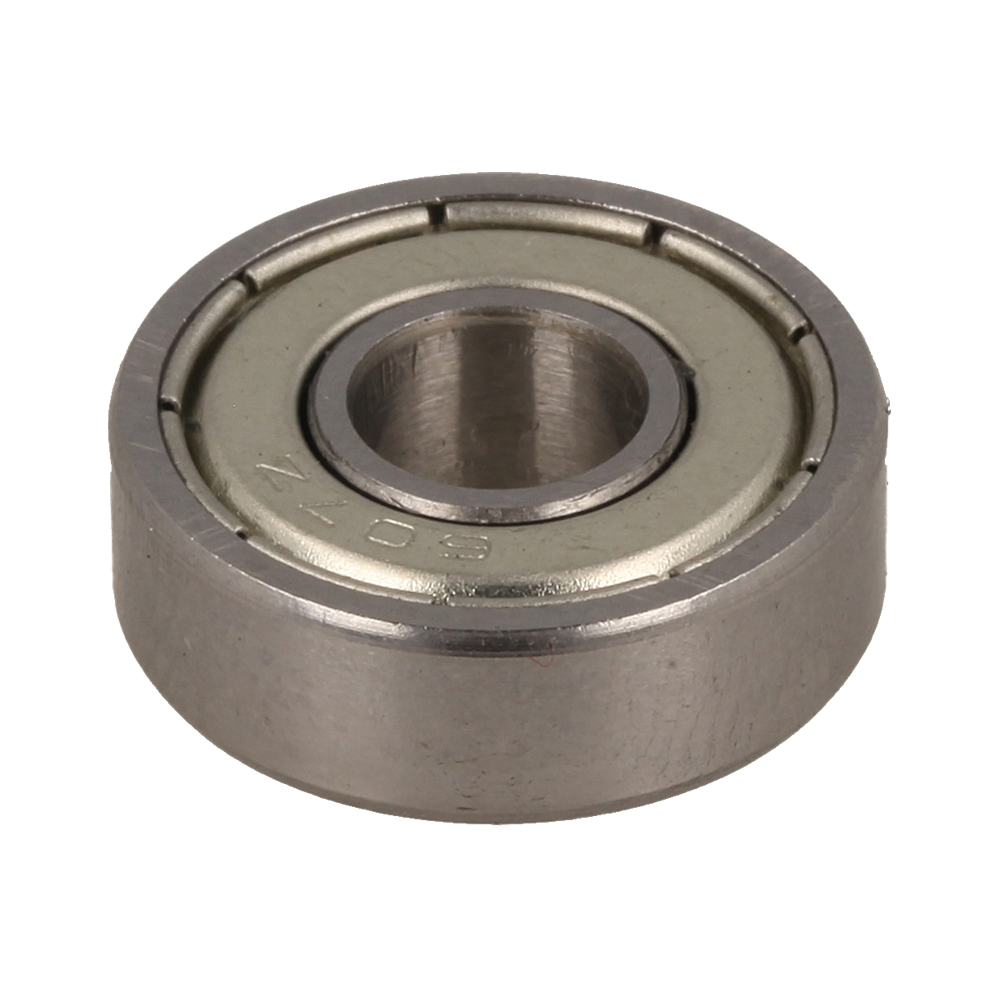

3	5059 In stock	Bearing	£2.72 £2.27
4	ST4859 642 4800 In stock	Thrust plate	£2.14 £1.78
5	ST4851 640 0104 Available to backorder	Gear assembly (Contains 39236)	£105.00 £87.50
6	ST4851 640 1603 Available to backorder	Cam	£84.12 £70.10
7	ST6460 642 6510 In stock	Connecting rod	£18.86 £15.72
8	ST4859 640 8400 Available to backorder	Bearing plate (Contains 3)	£29.59 £24.66
9	ST4859 600 0202 In stock	Electric motor (Contains 45567)	£119.56 £99.63
10	ST9110 391 0630 In stock	Flat head screw ISO7380-M4x6	£0.72 £0.60
11	ST4859 641 0400 In stock	Gearbox cover	£8.59 £7.16
12	ST9075 478 2995 In stock	Screw	£0.83 £0.69
13	ST4859 791 0600 In stock	Handle molding	£5.66 £4.72
14	ST9075 478 0630 In stock	Pan head self-tapping screw IS-D4x8	£0.83 £0.69
