Stihl HLA86 - Drive Tube Assembly - Parts Diagram

Name: Stihl HLA86 - Drive Tube Assembly - Parts Diagram
SKU: hla86_drive_tube_assembly-group
Price: 0.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HLA86 - Drive Tube Assembly - Parts Diagram

Description

Stihl HLA86 - Drive Tube Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4859 710 7115 Available to backorder	Drive tube assembly (Contains 3 + 5 - 7 + 14 - 16 + 21 + 22)	£306.48 £255.40
3	ST4859 967 7209 Available to backorder	Warning pictogram	£2.08 £1.73
5	ST4859 791 2000 Available to backorder	Handle hose	£13.30 £11.08
6	ST4857 448 1202 Available to backorder	Lead retainer	£5.94 £4.95
7	ST9440 003 1851 In stock	Blind rivet 3x5-ST/ST	£0.76 £0.63

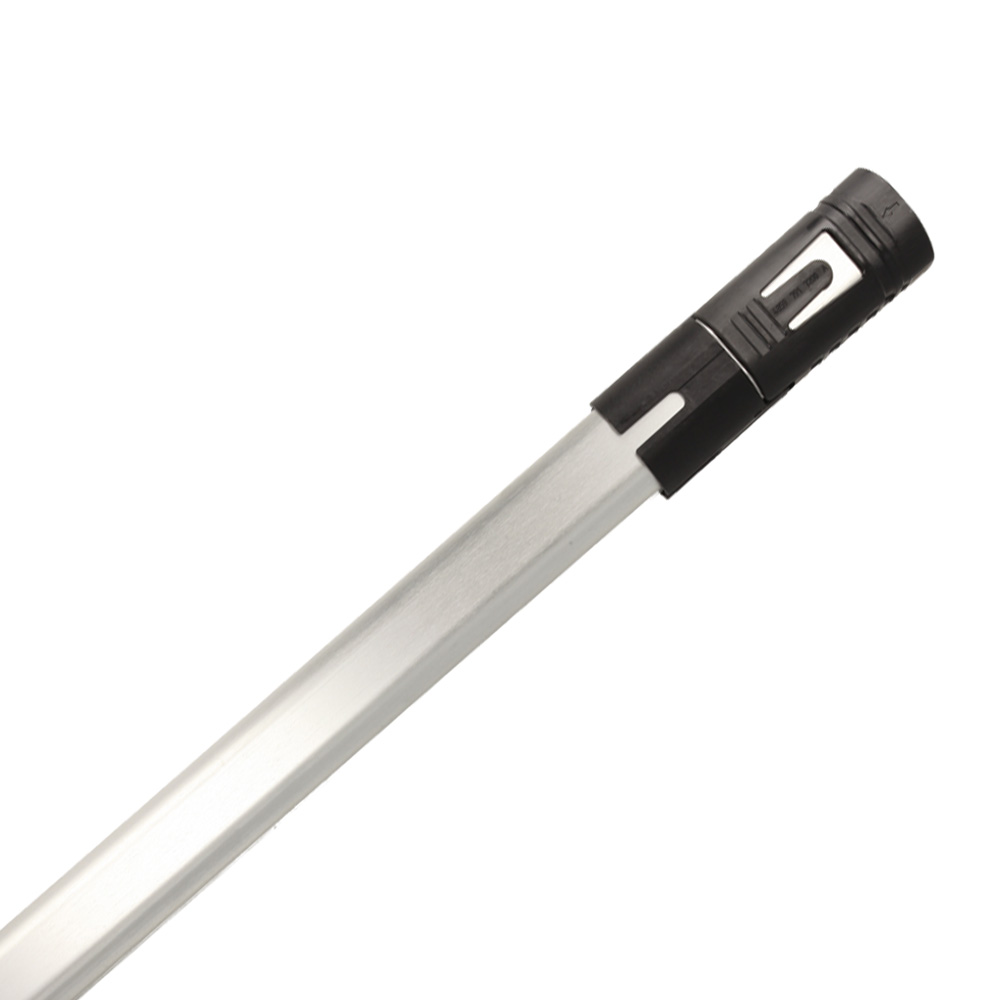

8	ST4859 710 7112 Available to backorder	Drive tube assembly (Contains 45574)	£50.92 £42.43
9	STLA03 710 7300 Available to backorder	Sleeve (Contains 10)	£8.14 £6.78
10	ST4182 711 9822 Available to backorder	Spacer ring	£5.94 £4.95
11	ST4859 007 1001 Available to backorder	Limit stop kit (Contains 12)	£8.48 £7.07
12	ST9074 477 4130 In stock	Screw IS P5x16	£0.88 £0.73
13	ST4859 740 3701 Available to backorder	Clamping piece (Contains 7 + 24)	£34.32 £28.60
14	ST0000 790 8803 Available to backorder	Carrying ring (Contains 15 + 16)	£12.64 £10.53
15	ST9022 341 0980 In stock	Pan head screw IS M5x16	£0.88 £0.73
16	ST9210 261 0700 Available to backorder	Hexagon nut M5	£0.48 £0.40
18	ST9022 341 1370 In stock	Pan head screw IS M6x30	£1.22 £1.02
19	ST9294 021 0140 Available to backorder	Washer 6.4	£0.48 £0.40
20	ST9210 319 0900 In stock	Hexagon nut M6	£0.44 £0.37
21	ST4859 440 3023 Available to backorder	Wiring harness (Contains 22)	£81.40 £67.83
22	ST4860 404 0800 Available to backorder	Contact plate	£5.06 £4.22
23	STLA03 820 5200 Available to backorder	Tube with clamp (Contains 6 + 17 - 20)	£61.60 £51.33
24	ST4182 716 1920 Available to backorder	Sealing ring	£1.00 £0.83
25	ST4859 793 7710 Available to backorder	Plug	£3.74 £3.12
