Stihl HLA66 - Motor Housing, Electronic Module - Parts Diagram

Name: Stihl HLA66 - Motor Housing, Electronic Module - Parts Diagram
SKU: hla66_motor_housing_electronic_module-group
Price: 0.69 GBP
Availability: InStock

Part No. hla66_motor_housing_electronic_module-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HLA66 - Motor Housing, Electronic Module - Parts Diagram

Description

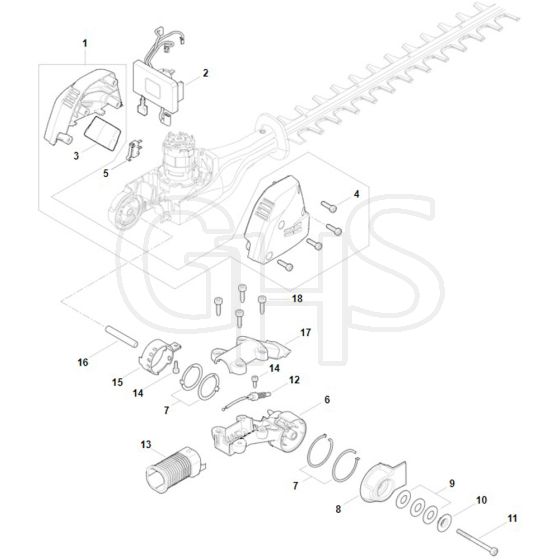

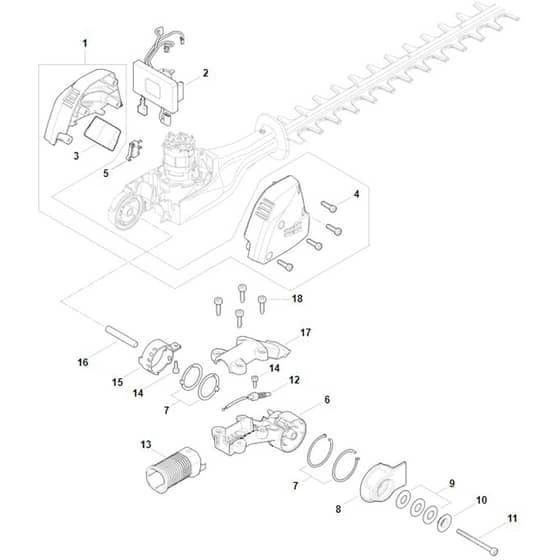

Stihl HLA66 - Motor Housing, Electronic Module - Parts Diagram

	Part No.	Details
1	ST4859 600 0800 In stock	Motor housing (Contains 3)	£18.89 £15.74
2	ST4859 430 1402 In stock	Electronic module	£122.90 £102.42
3	ST4859 084 2600 Available to backorder	Filter	£1.14 £0.95
4	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.95 £0.79
5	ST4859 430 0500 In stock	Switch	£3.20 £2.67
6	ST4859 793 4510 Available to backorder	Joint	£41.42 £34.52
7	ST4859 640 8900 In stock	Lockwasher	£2.72 £2.27
8	ST4859 793 4600 Available to backorder	Cover	£19.22 £16.02
9	ST9485 648 1560 In stock	Cup spring 25x12.2x1.5	£0.95 £0.79
10	ST4859 793 9100 Available to backorder	Thrust plate	£1.72 £1.43
11	ST9022 341 1152 In stock	Spline screw IS-M5x65	£1.66 £1.38
12	ST4859 790 2400 In stock	Bowden cable	£18.86 £15.72
13	ST4859 641 5500 Available to backorder	Lock housing	£6.49 £5.41
14	ST9075 478 2995 In stock	Pan head self-tapping screw IS-D4x12	£0.83 £0.69
15	ST4859 642 4600 Available to backorder	Perforated strip	£8.65 £7.21
16	ST4859 641 9400 Available to backorder	Bearing bushing	£18.54 £15.45
17	ST4859 793 5710 Available to backorder	Clamp	£19.69 £16.41
18	ST9075 478 4136 In stock	Pan head self-tapping screw IS-D5x20	£0.95 £0.79
