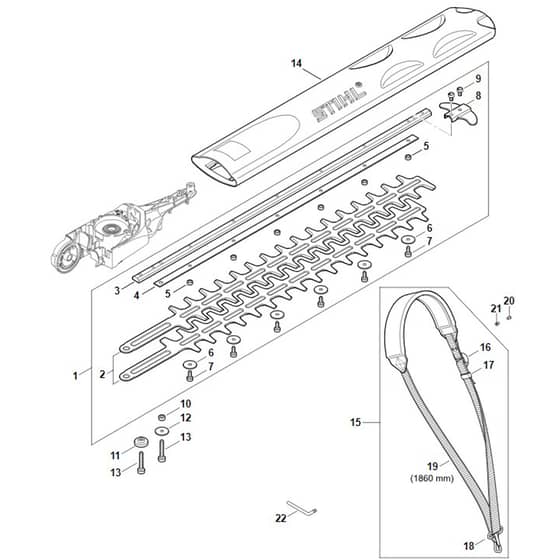

Stihl HLA66 - Cutter Bar - Parts Diagram

Name: Stihl HLA66 - Cutter Bar - Parts Diagram
SKU: hla66_cutter_bar-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HLA66 - Cutter Bar - Parts Diagram

Description

Stihl HLA66 - Cutter Bar - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4859 710 5900 Available to backorder	Cutter bar assy. 500 mm / 20" (Contains 2 - 9)	£181.50 £151.25
2	ST4859 710 6050 Available to backorder	Blade 500 mm / 20"	£120.36 £100.30
3	ST4859 713 6700 In stock	Guide 500 mm / 20"	£15.18 £12.65
4	ST4859 713 2200 Available to backorder	Blade friction plate 500 mm / 20"	£10.12 £8.43
5	ST4851 648 6700 In stock	Slider	£1.88 £1.57
6	ST9298 003 3540 In stock	Washer	£1.00 £0.83
7	ST9075 478 2995 In stock	Pan head self-tapping screw IS-D4x12	£0.76 £0.63
8	ST4851 792 9001 Available to backorder	Guide guard	£6.04 £5.03
9	ST9075 478 0630 Available to backorder	Pan head self-tapping screw IS-D4x8	£0.76 £0.63
10	ST4818 641 4901 In stock	Sleeve	£1.10 £0.92
11	ST4851 641 4900 Available to backorder	Sleeve	£5.06 £4.22
12	ST4237 958 0500 In stock	Washer	£1.32 £1.10
13	ST9075 478 4167 In stock	Pan head self-tapping screw IS-D5x32	£1.00 £0.83
14	ST0000 792 9600 In stock	Cutter guard 500 mm / 20"	£13.10 £10.92
15	ST4119 710 9011 Available to backorder	Harness (Contains 16 - 19)	£19.24 £16.03
16	ST4203 792 7200 Available to backorder	Slide	£2.98 £2.48
17	ST4119 718 6320 Available to backorder	Slide	£0.88 £0.73
18	ST4119 710 6900 Available to backorder	Spring safety hook	£13.10 £10.92
19	ST0000 930 2241 Available to backorder	Webbing 25 mm x 10 m / 1" x 33'	£12.10 £10.08
20	ST9409 021 4420 Available to backorder	Rivet head 4x8	£0.88 £0.73
21	ST9408 021 4530 Available to backorder	Rivet shank 4x8x6	£0.88 £0.73
22	ST0812 370 1004 Available to backorder	Screwdriver T27x15x75	£0.66 £0.55
