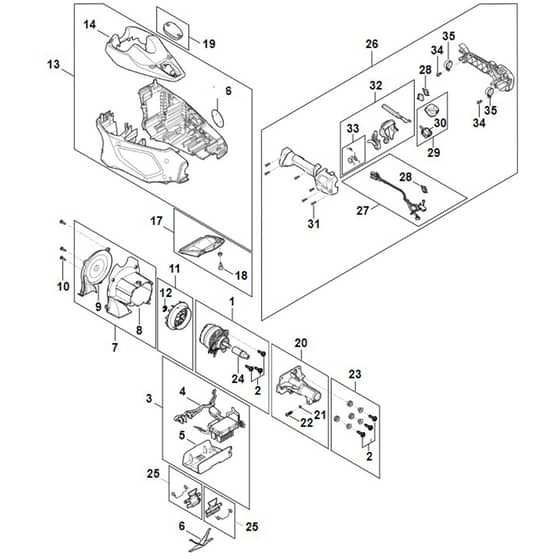

Stihl HLA135 K - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Description

Stihl HLA135 K - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STHA04 600 0202 Available to backorder	Electric motor (Contains 2 + 24)	£195.80 £163.17
2	ST0000 951 1100 In stock	Screw	£1.54 £1.28
5	STFA01 404 0800 Available to backorder	Contact plate	£12.88 £10.73
6	STMA01 791 3100 Available to backorder	Spring	£2.32 £1.93
7	STFA01 820 8100 Available to backorder	Spiral housing (Contains 45543)	£21.22 £17.68
8	STFA01 602 0300 Available to backorder	Spiral housing	£14.30 £11.92
9	STFA01 706 3400 Available to backorder	Cover	£5.18 £4.32
10	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.76 £0.63
11	STHA04 600 3200 Available to backorder	Fan wheel (Contains 12)	£6.70 £5.58
12	ST9460 624 0800 Available to backorder	E-clip 8	£0.48 £0.40
13	STHA04 600 0802 Available to backorder	Motor housing (Contains 14 - 16)	£136.40 £113.67
14	STFA01 084 0900 Available to backorder	Shroud	£26.62 £22.18
17	STFA01 080 1900 Available to backorder	Filter (Contains 18)	£16.18 £13.48
18	ST9022 319 1028 In stock	Screw IS-M5x14	£0.76 £0.63
19	STFA01 820 8000 Available to backorder	Cover	£5.18 £4.32
20	STFA01 600 3401 Available to backorder	Flange (Contains 21 + 22)	£40.04 £33.37
21	ST9291 021 0140 In stock	Washer 6.4	£0.36 £0.30
22	ST9075 478 4720 Available to backorder	Pan head self-tapping screw IS-D6x35	£1.22 £1.02
23	STFA01 007 1000 Available to backorder	Screw kit (Contains 2)	£10.24 £8.53
24	STFA01 764 4200 Available to backorder	Carrier	£15.18 £12.65
25	ST4851 430 9800 Available to backorder	Trigger interlock	£4.96 £4.13
26	STFA01 790 1320 Available to backorder	Control handle (Contains 27 - 35)	£105.04 £87.53
27	STFA01 430 2220 Available to backorder	Wiring harness (Contains 28)	£22.66 £18.88
28	ST1250 430 0500 In stock	Switch	£2.98 £2.48
29	STFA01 430 0501 Available to backorder	Switch (Contains 30)	£14.52 £12.10
30	ST4867 430 0501 In stock	Switch	£10.46 £8.72
31	ST9074 478 3025 Available to backorder	Pan head screw IS P4x16	£1.20 £1.00
32	STFA01 007 3820 Available to backorder	Control lever kit (Contains 33)	£14.62 £12.18
33	STFA01 007 1320 Available to backorder	Set of mounting hardware	£2.86 £2.38
34	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.77 £0.64
35	STFA01 790 4700 Available to backorder	Clamp	£4.30 £3.58
36	ST4850 602 0900 Available to backorder	Cover	£4.52 £3.77
