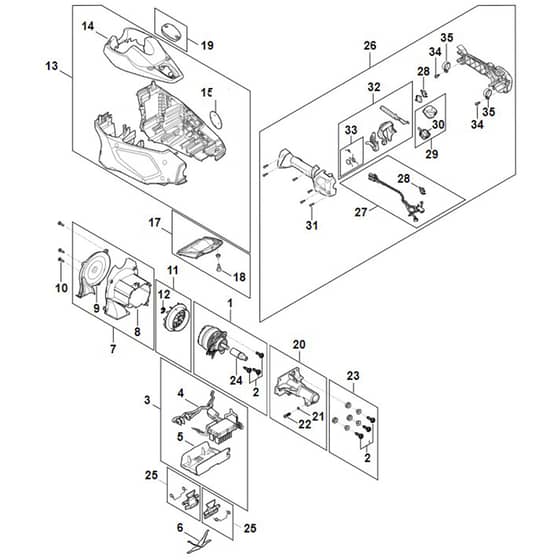

Stihl HLA135 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Stihl HLA135 - Electric Motor, Motor Housing, Control Handle - Parts Diagram
Stihl HLA135 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Description

Stihl HLA135 - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Ref. Img. Part No. Details
  1 Electric motor (Contains 2 + 24) STHA04 600 0202
Electric motor (Contains 2 + 24)
Out of stock
£193.20 £161.00

  2 Screw ST0000 951 1100
Screw
In stock
£1.68 £1.40

  3 Electronic module (Contains 45416) STHA04 430 1402
Electronic module (Contains 45416)
Out of stock
£175.44 £146.20

  4 Electronic module STHA04 430 1400
Electronic module
Out of stock
£165.36 £137.80

  5 Contact plate STFA01 404 0800
Contact plate
Out of stock
£15.24 £12.70

  6 Spring STMA01 791 3100
Spring
Out of stock
£2.29 £1.91

  7 Spiral housing (Contains 45543) STFA01 820 8100
Spiral housing (Contains 45543)
Out of stock
£23.88 £19.90

  8 Spiral housing STFA01 602 0300
Spiral housing
Out of stock
£17.40 £14.50

  9 Cover STFA01 706 3400
Cover
Out of stock
£6.48 £5.40

  10 Pan head self-tapping screw IS-P4x16 ST9074 477 3025
Pan head self-tapping screw IS-P4x16
Out of stock
£0.86 £0.72

  11 Fan wheel (Contains 12) STHA04 600 3200
Fan wheel (Contains 12)
Out of stock
£8.64 £7.20

  12 E-clip 8 ST9460 624 0800
E-clip 8
Out of stock
£0.40 £0.33

  13 Motor housing (Contains 14 - 16) STHA04 600 0802
Motor housing (Contains 14 - 16)
Out of stock
£147.12 £122.60

  14 Shroud STFA01 084 0900
Shroud
Out of stock
£30.36 £25.30

  15 Model plate HLA 135 STHA04 967 1500
Model plate HLA 135
Out of stock
£4.32 £3.60

  17 Filter (Contains 18) STFA01 080 1900
Filter (Contains 18)
Out of stock
£17.40 £14.50

  18 Screw IS-M5x14 ST9022 319 1028
Screw IS-M5x14
In stock
£0.86 £0.72

  19 Cover STFA01 820 8000
Cover
Out of stock
£6.48 £5.40

  20 Flange (Contains 21 + 22) STFA01 600 3401
Flange (Contains 21 + 22)
Out of stock
£47.76 £39.80

  21 Washer 6.4 ST9291 021 0140
Washer 6.4
In stock
£0.40 £0.33

  22 Pan head self-tapping screw IS-D6x35 ST9075 478 4720
Pan head self-tapping screw IS-D6x35
Out of stock
£1.39 £1.16

  23 Screw kit (Contains 2) STFA01 007 1000
Screw kit (Contains 2)
Out of stock
£13.08 £10.90

  24 Carrier STFA01 764 4200
Carrier
Out of stock
£17.40 £14.50

  25 Trigger interlock ST4851 430 9800
Trigger interlock
Out of stock
£5.54 £4.62

  26 Control handle (Contains 27 - 35) STFA01 790 1320
Control handle (Contains 27 - 35)
Out of stock
£112.92 £94.10

  27 Wiring harness (Contains 28) STFA01 430 2220
Wiring harness (Contains 28)
Out of stock
£26.04 £21.70

  28 Switch ST1250 430 0500
Switch
Out of stock
£3.28 £2.73

  29 Switch (Contains 30) STFA01 430 0501
Switch (Contains 30)
Out of stock
£17.40 £14.50

  30 Switch ST4867 430 0501
Switch
Out of stock
£13.08 £10.90

  31 Pan head screw IS P4x16 ST9074 478 3025
Pan head screw IS P4x16
Out of stock
£0.96 £0.80

  32 Control lever kit (Contains 33) STFA01 007 3820
Control lever kit (Contains 33)
Out of stock
£15.96 £13.30

  33 Set of mounting hardware STFA01 007 1320
Set of mounting hardware
Out of stock
£4.32 £3.60

  34 Spline screw IS-M5x12 ST9022 341 0960
Spline screw IS-M5x12
In stock
£0.96 £0.80

  35 Clamp STFA01 790 4700
Clamp
Out of stock
£4.32 £3.60


Description

Stihl HLA135 - Electric Motor, Motor Housing, Control Handle - Parts Diagram
