Stihl HLA135 - Drive Tube Assembly, Gear Head - Parts Diagram

Description

Stihl HLA135 - Drive Tube Assembly, Gear Head - Parts Diagram

	Part No.	Details
1	STHA04 710 7100 Available to backorder	Drive tube assembly (Contains 8 + 11 + 14 + 17)	£99.60 £83.00

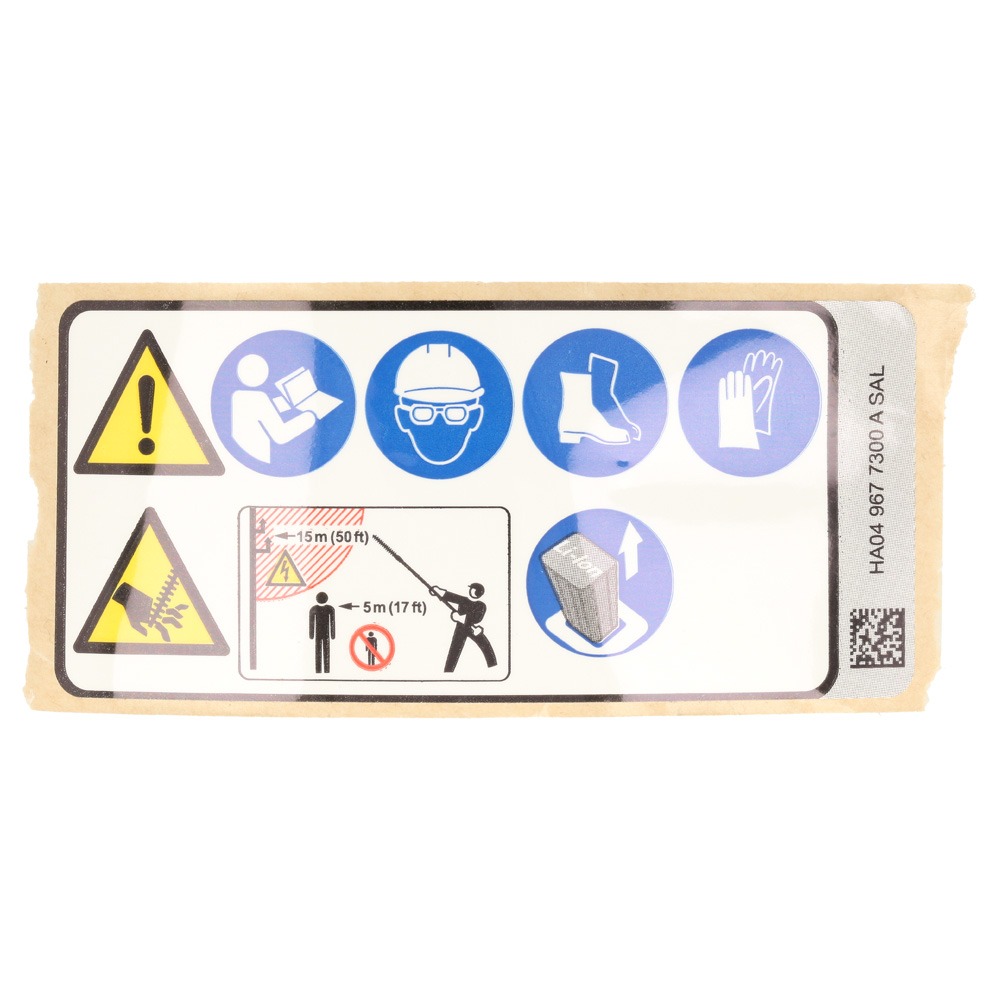

8	STHA04 967 7300 Available to backorder	Warning pictogram HLA 135	£2.15 £1.79
11	ST4137 711 3200 In stock	Drive shaft	£52.80 £44.00
14	ST4137 711 2101 In stock	Plug	£0.83 £0.69
17	ST4137 711 7300 In stock	Flexible liner 1455 mm	£12.97 £10.81
18	ST0000 790 8803 Available to backorder	Carrying ring (Contains 19 + 20)	£13.08 £10.90
19	ST9210 261 0700 Available to backorder	Hexagon nut M5	£0.35 £0.29
20	ST9022 341 0980 In stock	Pan head screw IS M5x16	£0.95 £0.79
21	STFA01 790 4700 Available to backorder	Clamp	£4.45 £3.71
23	ST9222 068 0900 In stock	Square nut M6	£0.48 £0.40
24	ST4123 791 7400 Available to backorder	Strap	£5.46 £4.55
25	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
26	ST9022 341 1370 In stock	Pan head screw IS M6x30	£1.31 £1.09
27	STHA04 007 1001 Available to backorder	Limit stop kit (Contains 28)	£14.44 £12.03
28	ST9074 477 4130 In stock	Screw IS P5x16	£0.95 £0.79
29	ST4180 790 3408 Available to backorder	Loop handle (Contains 22 - 26 + 30)	£22.31 £18.59
30	ST4130 790 8450 Available to backorder	Bow	£16.16 £13.47
31	ST4130 710 9000 Available to backorder	Carrying belt	£11.26 £9.38
32	ST4180 890 3400 Available to backorder	Combination wrench	£9.34 £7.78
