Stihl HL94 KC-E - Engine Up To Serial Number 514368761 - Parts Diagram

Name: Stihl HL94 KC-E - Engine Up To Serial Number 514368761 - Parts Diagram
SKU: hl94_kc_e_engine_up_to_serial_number_514368761-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

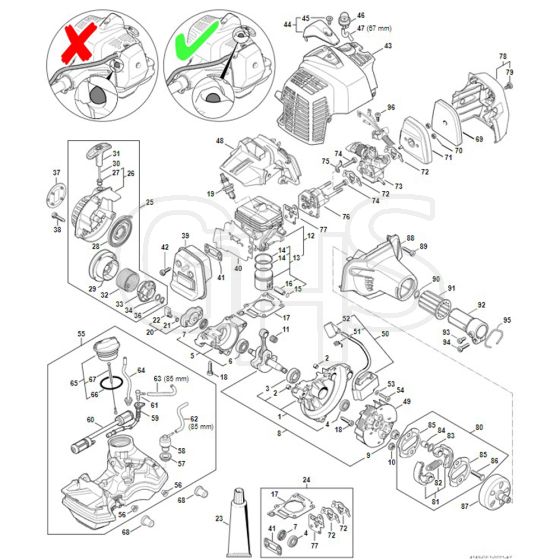

Stihl HL94 KC-E - Engine Up To Serial Number 514368761 - Parts Diagram

Description

Stihl HL94 KC-E - Engine Up To Serial Number 514368761 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4149 020 2601	Crankcase fan side (Contains 2 - 4)	Out of stock	£76.44 £63.70
2	ST0000 988 8600	Sleeve	In stock	£1.20 £1.00
3	ST9503 003 0215	Grooved ball bearing DIN625-6001	Out of stock	£12.47 £10.39
4	ST9640 003 1195	Oil seal 12x22x5	In stock	£5.78 £4.82
5	ST4149 020 2903	Crankcase (Contains 45479)	Out of stock	£75.24 £62.70
6	ST9503 003 0102	Grooved ball bearing 6000	Out of stock	£12.47 £10.39
7	ST9640 003 0955	Oil seal 10x20x4	In stock	£4.78 £3.98
8	ST4149 030 0403	Crankshaft (Contains 9)	Out of stock	£176.28 £146.90
9	ST0000 955 0802	Collar nut M8x1	In stock	£1.52 £1.27
10	ST9220 260 0900	Hexagon nut M6	Out of stock	£0.50 £0.42
11	ST9512 003 1834	Needle cage 8x11x10	Out of stock	£7.18 £5.98
12	ST4149 020 1204	Cylinder with piston Ø 35 mm (Contains 13 - 16 + 18)	In stock	£76.56 £63.80
13	ST4149 030 2012	Piston Ø 35 mm (Contains 14 - 16)	Out of stock	£49.92 £41.60
14	ST4149 034 3005	Piston ring Ø 35x12 mm	Out of stock	£6.48 £5.40
15	ST9463 650 0805	Snap ring 8x0.7	In stock	£0.72 £0.60
16	ST4241 034 1500	Piston pin 8x5x22	Out of stock	£7.04 £5.87
17	ST4149 029 2301	Cylinder gasket	Out of stock	£3.52 £2.93
18	ST9075 478 4159	Pan head self-tapping screw IS-D5x24	In stock	£1.13 £0.94
19	3945	Spark plug NGK CMR6H	In stock	£5.12 £4.27
20	ST4140 190 2010	Driver (Contains 21 + 22)	In stock	£11.88 £9.90
21	ST0000 998 0612	Torsion spring	In stock	£1.26 £1.05
22	ST4133 195 7201	Pawl	In stock	£2.52 £2.10
23	ST0783 830 2000	Sealant Dirko HT red	In stock	£18.34 £15.28
24	ST4149 007 1600	Set of gaskets (Contains 4 + 7 + 17 + 40 + 72 + 77)	Out of stock	£14.38 £11.98
25	ST4149 190 4000	Rewind starter (Contains 26 - 36)	In stock	£51.42 £42.85
26	ST4149 190 0400	Starter cover (Contains 27)	Out of stock	£15.84 £13.20
27	ST9416 868 6650	Rivet 6.5x0.5x8.8	In stock	£1.68 £1.40
28	ST4149 190 0600	Rewind spring	In stock	£9.49 £7.91
29	ST4149 195 0400	Rope rotor	Out of stock	£9.46 £7.88
30	ST4137 195 8200	Starter rope Ø 2.7x910 mm	In stock	£3.37 £2.81
31	ST4140 195 3400	Starter grip	In stock	£4.22 £3.52
32	ST4149 195 3500	Spring	In stock	£4.92 £4.10
33	ST4149 195 2000	Carrier	Out of stock	£3.17 £2.64
34	ST0000 958 0923	Washer	In stock	£1.20 £1.00
36	ST9455 621 0750	Circlip 9x1	In stock	£0.76 £0.63
37	ST4243 967 1507	Model plate HL 94	Out of stock	£5.04 £4.20
39	ST4149 140 0600	Muffler	Out of stock	£27.42 £22.85
40	ST4149 141 3201	Cooling plate	Out of stock	£5.04 £4.20
41	ST4149 149 0600	Muffler gasket	Out of stock	£2.26 £1.88
42	ST9075 478 4085	Pan head self-tapping screw IS-D5x18	In stock	£1.09 £0.91
43	ST4149 080 1603	Shroud	Out of stock	£15.73 £13.11
44	ST4149 080 0400	Cover (Contains 45)	Out of stock	£5.39 £4.49
45	ST0000 951 1110	Screw M5x12	Out of stock	£3.13 £2.61
46	ST0000 350 6201	Fuel pump	Out of stock	£12.46 £10.38
47	ST0000 930 2802	Hose 2.2x5.4 mm x 1 m R1	In stock	£4.22 £3.52
48	ST4149 080 0901	Air guide shroud	Out of stock	£9.30 £7.75
49	ST4149 400 1200	Flywheel	Out of stock	£63.60 £53.00
50	ST4243 400 1301	Ignition module (Contains 51 + 52)	Out of stock	£133.38 £111.15
51	ST0000 998 0604	Spark plug contact spring	In stock	£1.68 £1.40
52	ST0000 405 1007	Spark plug boot	Out of stock	£7.19 £5.99
53	ST9291 021 0100	Washer 4.3	In stock	£0.48 £0.40
54	ST9075 478 3022	Pan head self-tapping screw IS-D4x20	Out of stock	£0.95 £0.79
55	ST4149 350 0411	Fuel tank (Contains 56 - 67)	In stock	£70.44 £58.70
56	ST9991 003 5087	Sleeve 7.5x6.8	In stock	£0.64 £0.53
57	ST4223 353 9201	Grommet	Out of stock	£1.63 £1.36
58	ST4149 350 5800	Tank vent	Out of stock	£11.05 £9.21
59	ST4147 358 0800	Hose	In stock	£4.72 £3.93
60	ST0000 007 3600	Set of pickup bodies	Out of stock	£13.08 £10.90
61	ST4242 353 2600	Elbow connector	Out of stock	£2.92 £2.43
63	ST0000 937 5006	Hose 2.2x5.4 mm x 1 m R5	In stock	£27.18 £22.65
64	ST4149 937 5000	Hose 105 mm 4 1/8"	Out of stock	£13.46 £11.22
65	ST0000 350 0527	Filler cap (Contains 66 + 67)	In stock	£7.84 £6.53
66	ST9645 951 3890	O-ring 35x3-FPM 80	Out of stock	£1.90 £1.58
67	ST0000 350 0900	Rope	Out of stock	£1.32 £1.10
68	ST4180 352 8100	Insert	Out of stock	£2.15 £1.79
69	ST4149 120 1800	Filter	In stock	£3.00 £2.50
70	ST9210 261 0700	Hexagon nut M5	Out of stock	£0.48 £0.40
71	ST4149 140 2800	Filter housing	Out of stock	£13.49 £11.24
72	ST4149 129 0901	Gasket	Out of stock	£2.40 £2.00
73	ST4149 120 0600	Carburetor RC2-S243E	In stock	£77.64 £64.70
75	ST4149 431 2100	Connector tag	Out of stock	£1.76 £1.47
76	ST4149 120 2300	Spacer flange	Out of stock	£18.36 £15.30
77	ST4149 129 0900	Gasket	Out of stock	£2.52 £2.10
78	ST4149 140 1003	Filter cover (Contains 79)	In stock	£22.28 £18.57
80	ST4149 160 2250	Clutch (Contains 81 + 83 - 86)	Out of stock	£35.76 £29.80
81	ST4149 160 2000	Clutch (Contains 82)	In stock	£28.43 £23.69
82	ST0000 997 6101	Tension spring	Out of stock	£2.05 £1.71
83	ST0000 958 1000	Washer 16x10x0.5	In stock	£1.20 £1.00
84	ST0000 961 0601	Ring	In stock	£2.77 £2.31
85	ST4180 162 1000	Cover washer	In stock	£2.69 £2.24
86	ST0000 951 0600	Hexagon head screw M6	Out of stock	£1.68 £1.40
87	ST4149 160 2902	Clutch drum	In stock	£32.15 £26.79
88	ST4149 080 1801	Fan housing	In stock	£32.40 £27.00
90	ST9455 621 1130	Circlip 12x1	Out of stock	£0.76 £0.63
91	ST4149 791 9300	Rubber insert	In stock	£9.14 £7.62
92	ST4149 790 7201	Sleeve	In stock	£13.39 £11.16
93	ST9075 478 4095	Pan head self-tapping screw IS-D5x12	Out of stock	£0.86 £0.72
94	ST9022 371 1020	Pan head screw IS M5x20	In stock	£0.97 £0.81
95	ST9457 621 4481	Circlip	Out of stock	£1.90 £1.58
96	ST9074 477 4130	Screw IS P5x16	In stock	£1.13 £0.94
