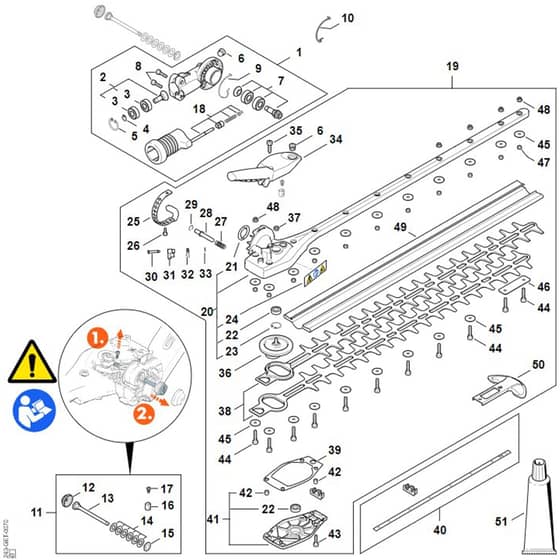

Stihl HL94 KC-E - Angle Drive, Adjustable Thru 145°, 500 Mm - Parts Diagram

Description

Stihl HL94 KC-E - Angle Drive, Adjustable Thru 145°, 500 Mm - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4243 640 0535 In stock	Gear housing (Contains 2 - 9 + 18)	£99.00 £82.50
2	ST4243 640 2502 Available to backorder	Drive pinion (Contains 45385)	£21.12 £17.60
3	ST9503 003 9870 Available to backorder	Grooved ball bearing 609-2Z	£11.98 £9.98
4	ST9455 621 0750 In stock	Circlip 9x1	£0.66 £0.55
5	ST9456 621 2660 In stock	Circlip 24x1.2	£1.00 £0.83
6	ST4226 641 6500 In stock	Plug screw	£2.54 £2.12
7	ST4243 640 2503 In stock	Drive pinion	£28.48 £23.73
8	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.88 £0.73
9	ST4243 642 8200 Available to backorder	Ring	£3.20 £2.67
10	ST4243 642 8201 Available to backorder	Ring	£3.20 £2.67
11	ST4243 007 1300 In stock	Set of mounting hardware (Contains 12 - 17)	£17.72 £14.77
12	ST4243 642 1900 Available to backorder	Cap	£2.54 £2.12
13	ST4243 951 9700 In stock	Screw	£15.62 £13.02
14	ST9486 648 1012 In stock	Cup spring 15x82x08	£0.66 £0.55
15	ST4243 642 7801 Available to backorder	Washer	£1.10 £0.92
16	ST4243 642 9002 In stock	Screw sleeve	£1.98 £1.65
17	ST9022 373 0334 In stock	Spline screw IS-M3x7-12.9	£0.66 £0.55
18	ST4243 640 4506 In stock	Lock	£28.04 £23.37
19	ST4243 640 0536 Available to backorder	Gear housing (145° 500 mm) (Contains 20 - 49)	£327.60 £273.00
20	ST4243 640 0513 Available to backorder	Gear housing (145° 500 mm) (Contains 21 - 24)	£99.00 £82.50
21	ST4243 641 2602 Available to backorder	Washer	£1.32 £1.10
22	ST4243 640 5100 In stock	Ball bearing	£10.24 £8.53
23	ST9456 621 2000 Available to backorder	Circlips DIN472-19x1	£0.88 £0.73
24	ST0000 967 7299 Available to backorder	Warning pictogram	£2.08 £1.73
25	ST4243 642 4601 In stock	Perforated strip	£4.06 £3.38
26	ST9075 478 3012 Available to backorder	Pan head self-tapping screw IS-D4x12	£0.76 £0.63
27	ST0000 997 2020 Available to backorder	Compression spring	£1.42 £1.18
28	ST4243 642 4500 In stock	Locking pin	£7.16 £5.97
29	ST9458 621 1421 Available to backorder	Snap ring DIN7993-B10	£0.66 £0.55
30	ST4243 704 0900 Available to backorder	Shaft	£2.20 £1.83
31	ST4243 708 6202 In stock	Notched quadrant	£3.86 £3.22
32	ST4243 182 4501 Available to backorder	Torsion spring	£1.10 £0.92
33	ST9460 624 0320 In stock	E-clip 3.2	£0.47 £0.39
34	ST4243 700 2901 In stock	Adjusting lever	£15.28 £12.73
35	ST9075 478 4136 In stock	Pan head self-tapping screw IS-D5x20	£0.89 £0.74
36	ST4243 640 1600 In stock	Cam	£61.60 £51.33
37	ST9210 319 0900 In stock	Hexagon nut M6	£0.44 £0.37
38	ST4243 710 6003 In stock	Blade 500 mm / 20"	£110.88 £92.40
0	1093 In stock	Blades & Fixing Kit	£151.56 £126.30
39	ST4243 649 0300 In stock	Gasket	£1.66 £1.38
40	ST4243 007 1003 Available to backorder	Cover plate kit 500 mm	£29.48 £24.57
41	ST4243 640 5800 In stock	Gearbox cover (Contains 22 + 42)	£29.38 £24.48
42	ST0000 988 8600 In stock	Sleeve	£1.10 £0.92
44	ST4237 716 0400 In stock	Spline screw IS-M5x25	£1.66 £1.38
45	ST4237 958 0500 In stock	Washer	£1.32 £1.10
46	ST4243 717 3100 Available to backorder	Cover plate	£29.48 £24.57
47	ST4242 641 4900 In stock	Sleeve 4.4 mm	£1.10 £0.92
48	ST9216 263 0700 In stock	Hexagon nut M5	£0.44 £0.37
49	ST0000 790 9200 In stock	Blade guard 500 mm / 20"	£12.10 £10.08
50	ST4237 792 9006 Available to backorder	Guide guard	£13.96 £11.63
51	ST0781 120 1109 In stock	Multi-purpose grease (tube 80 g)	£8.40 £7.00
