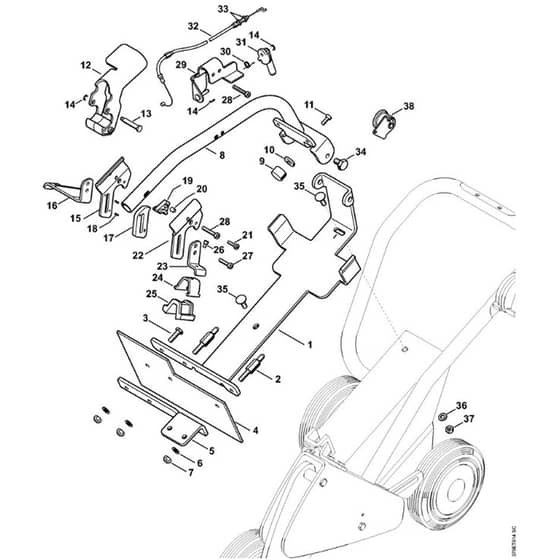

Stihl FW20 - Support, Throttle Control Ts 410, 420 - Parts Diagram

Name: Stihl FW20 - Support, Throttle Control Ts 410, 420 - Parts Diagram
SKU: fw20_support_throttle_control_ts_410_420-group
Price: 0.29 GBP
Availability: InStock

Part No. fw20_support_throttle_control_ts_410_420-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FW20 - Support, Throttle Control Ts 410, 420 - Parts Diagram

Description

Stihl FW20 - Support, Throttle Control Ts 410, 420 - Parts Diagram

	Part No.	Details
-1	ST4250 790 0702 Available to backorder	Support attachment kit TS (Contains 1 - 38)	£209.88 £174.90
2	ST4238 792 4100 Available to backorder	Stud	£5.81 £4.84
3	ST9008 319 1830 Available to backorder	Hexagon head screw M8x25	£1.26 £1.05
4	ST4224 791 4300 Available to backorder	Guard	£18.79 £15.66
5	ST4224 791 6500 Available to backorder	Plate	£64.92 £54.10
9	ST4201 790 9302 Available to backorder	Rubber buffer	£7.97 £6.64
10	ST9310 021 0180 Available to backorder	Washer 8.4	£0.35 £0.29
11	ST9022 341 1280 In stock	Spline screw IS-M6x16	£0.95 £0.79
12	ST4238 790 2001 Available to backorder	Locking lever	£23.57 £19.64
13	ST4238 793 2500 Available to backorder	Pin	£3.64 £3.03
14	ST9460 624 0500 In stock	E-clip 5	£0.53 £0.44
15	ST4238 791 0901 Available to backorder	Clamp	£16.49 £13.74
21	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.95 £0.79
23	ST4238 792 0300 Available to backorder	Clamping plate	£13.32 £11.10
24	ST4238 792 0303 Available to backorder	Clamping plate	£12.74 £10.62
25	ST4238 791 9300 Available to backorder	Rubber insert	£9.23 £7.69
26	ST9022 313 0930 In stock	Pan head screw IS M5x8	£0.80 £0.67
27	ST9022 341 1355 Available to backorder	Spline screw IS-M6x26	£1.03 £0.86
28	ST9022 341 1380 Available to backorder	Spline screw IS-M6x35	£1.26 £1.05
30	ST4238 793 2000 Available to backorder	Torsion spring	£1.14 £0.95
31	ST4238 790 6200 Available to backorder	Lever	£17.98 £14.98
32	ST4238 180 1101 Available to backorder	Throttle cable (Contains 33)	£36.97 £30.81
33	ST9208 260 0900 Available to backorder	Hexagon nut M6	£0.35 £0.29
34	ST4201 708 8402 In stock	Hexagon head screw M10x18	Was £2.54 £2.12 Special Price £1.57 £1.31
36	ST9291 021 0180 Available to backorder	Washer 8.4	£0.35 £0.29
37	ST9214 320 1100 In stock	Lock nut ISO7042 M8-10	£0.68 £0.57
38	ST4224 182 5600 Available to backorder	Carrier	£47.11 £39.26
