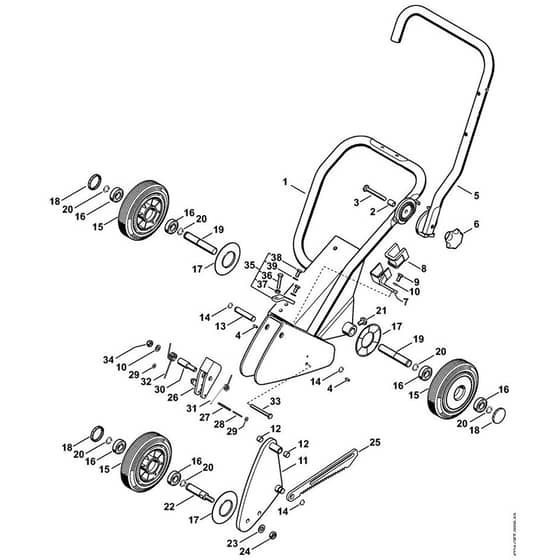

Stihl FW20 - Frame - Parts Diagram

Ref. Img. Part No. Details
  2 Sleeve
Sleeve
ST4224 791 7201 Out of stock
Sleeve
£5.78 £4.82

  3 Hexagon head screw M10x75
Hexagon head screw M10x75
ST9008 313 2510 Out of stock
Hexagon head screw M10x75
£3.02 £2.52

  4 Roll pin 5x14
Roll pin 5x14
ST9380 620 2580 Out of stock
Roll pin 5x14
£0.50 £0.42

  5 Guide tube
Guide tube
ST4224 790 2301 Out of stock
Guide tube
£186.12 £155.10

  6 Star knob M10
Star knob M10
ST9571 930 0207 Out of stock
Star knob M10
£19.25 £16.04

  7 Bracket (Contains 8)
Bracket (Contains 8)
ST4224 790 4100 Out of stock
Bracket (Contains 8)
£39.49 £32.91

  8 Rubber insert
Rubber insert
ST4224 791 9300 Out of stock
Rubber insert
£10.69 £8.91

  9 Hexagon head screw M8x16
Hexagon head screw M8x16
ST9008 319 1780 Out of stock
Hexagon head screw M8x16
£1.15 £0.96

  10 Washer 8.4
Washer 8.4
ST9291 021 0180 Out of stock
Washer 8.4
£0.40 £0.33

  11 Swivel arm (Contains 12)
Swivel arm (Contains 12)
ST4224 790 0400 Out of stock
Swivel arm (Contains 12)
£89.28 £74.40

  12 Plain bearing
Plain bearing
ST9533 003 9076 Out of stock
Plain bearing
£3.28 £2.73

  13 Axle
Axle
ST4224 711 0902 Out of stock
Axle
£13.84 £11.53

  14 Circlips DIN471-15x1
Circlips DIN471-15x1
ST9455 621 1520 In stock
Circlips DIN471-15x1
£0.86 £0.72

  15 Wheel (Contains 16 - 18)
Wheel (Contains 16 - 18)
ST4224 790 5700 Out of stock
Wheel (Contains 16 - 18)
£56.22 £46.85

  16 Grooved ball bearing 6004-2RS
Grooved ball bearing 6004-2RS
ST9503 003 5441 Out of stock
Grooved ball bearing 6004-2RS
£18.10 £15.08

  17 Wheel cap
Wheel cap
ST4224 704 0300 Out of stock
Wheel cap
£2.65 £2.21

  18 Cover
Cover
ST4224 704 3600 Out of stock
Cover
£6.80 £5.67

  19 Axle
Axle
ST4224 711 0900 Out of stock
Axle
£19.51 £16.26

  20 Circlip 20x1.2
Circlip 20x1.2
ST9455 621 2150 Out of stock
Circlip 20x1.2
£1.13 £0.94

  21 Hexagon head screw M10x18
Hexagon head screw M10x18
ST4201 708 8402 In stock
Hexagon head screw M10x18
Was £2.50 £2.08 Special Price £1.57 £1.31

  22 Axle
Axle
ST4224 711 0901 Out of stock
Axle
£17.35 £14.46

  24 Hexagon nut M12
Hexagon nut M12
ST9210 260 1400 Out of stock
Hexagon nut M12
£1.20 £1.00

  25 Toothed rod
Toothed rod
ST4224 711 6100 Out of stock
Toothed rod
£60.37 £50.31

  26 Pawl (Contains 27 + 28)
Pawl (Contains 27 + 28)
ST4224 790 2700 Out of stock
Pawl (Contains 27 + 28)
£50.81 £42.34

  27 Roll pin 4x40
Roll pin 4x40
ST9380 620 2240 Out of stock
Roll pin 4x40
£0.76 £0.63

  28 Roll pin 2.5x30
Roll pin 2.5x30
ST9380 620 1450 Out of stock
Roll pin 2.5x30
£0.76 £0.63

  29 Washer 4
Washer 4
ST9298 003 2004 Out of stock
Washer 4
£0.48 £0.40

  30 Sleeve
Sleeve
ST4224 793 7200 Out of stock
Sleeve
£16.86 £14.05

  31 Torsion spring
Torsion spring
ST4224 793 2000 Out of stock
Torsion spring
£1.90 £1.58

  32 Torsion spring
Torsion spring
ST4224 793 2001 Out of stock
Torsion spring
£2.15 £1.79

  33 Hexagon head screw M8x75
Hexagon head screw M8x75
ST9007 319 2000 Out of stock
Hexagon head screw M8x75
£2.65 £2.21

  34 Lock nut ISO7042 M8-10
Lock nut ISO7042 M8-10
ST9214 320 1100 Out of stock
Lock nut ISO7042 M8-10
£0.76 £0.63

  36 Hexagon head screw M8x40
Hexagon head screw M8x40
ST9008 319 1900 Out of stock
Hexagon head screw M8x40
£1.63 £1.36

  37 Hexagon nut M8
Hexagon nut M8
ST9210 260 1100 Out of stock
Hexagon nut M8
£0.76 £0.63

  38 Hexagon head screw M8x20
Hexagon head screw M8x20
ST9008 319 1800 Out of stock
Hexagon head screw M8x20
£1.15 £0.96
