Stihl FSA86R - Spare Parts - Parts Diagram

Description

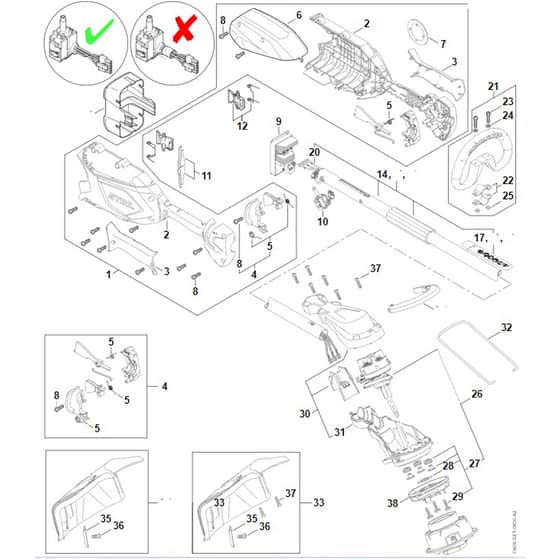

Stihl FSA86R - Spare Parts - Parts Diagram

	Part No.	Details
2	STFA05 790 1001 Available to backorder	Handle housing	£47.89 £39.91
3	STFA05 790 0600 Available to backorder	Handle molding	£9.23 £7.69
4	ST4859 007 3800 Available to backorder	Control lever kit (Contains 45509)	£15.71 £13.09
6	ST4859 791 7500 In stock	Cover	£8.15 £6.79
8	ST9074 478 3025 In stock	Pan head screw IS P4x16	£0.79 £0.66
9	STFA05 430 1400 Available to backorder	Electronic module	£134.16 £111.80

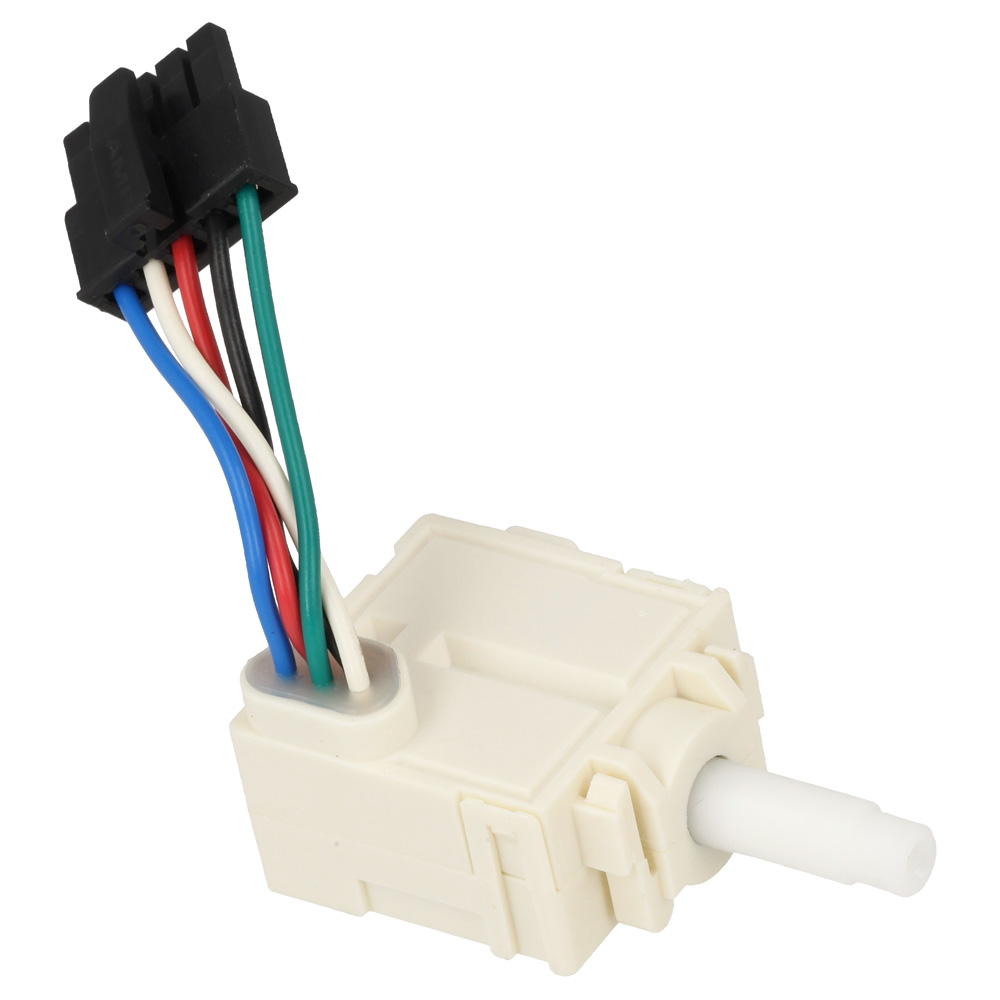

10	ST4859 430 0501 In stock	Switch	£11.78 £9.82
11	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
12	ST4852 430 9800 In stock	Lockout lever	£7.32 £6.10
14	STFA05 710 7102 Available to backorder	Drive tube assembly 25.4 mm x 1349 mm / 1 mm x 53 1/8 mm (Contains 17 + 20)	£62.76 £52.30
17	ST0000 967 7392 Available to backorder	Warning pictogram FSA	£2.15 £1.79
20	STFA05 440 3000 Available to backorder	Wiring harness	£58.03 £48.36
22	ST4123 791 7400 Available to backorder	Strap	£5.46 £4.55
23	ST9022 341 1370 In stock	Pan head screw IS M6x30	£1.31 £1.09
24	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
25	ST9222 068 0900 In stock	Square nut M6	£0.48 £0.40
26	STFA05 600 0201 Available to backorder	Electric motor (Contains 27 - 29)	£148.56 £123.80
27	STFA05 007 1301 Available to backorder	Set of mounting hardware (Contains 28 + 29)	£1.94 £1.62
28	STFA05 602 9300 Available to backorder	Washer	£1.37 £1.14
29	ST0000 951 1100 In stock	Screw	£1.66 £1.38

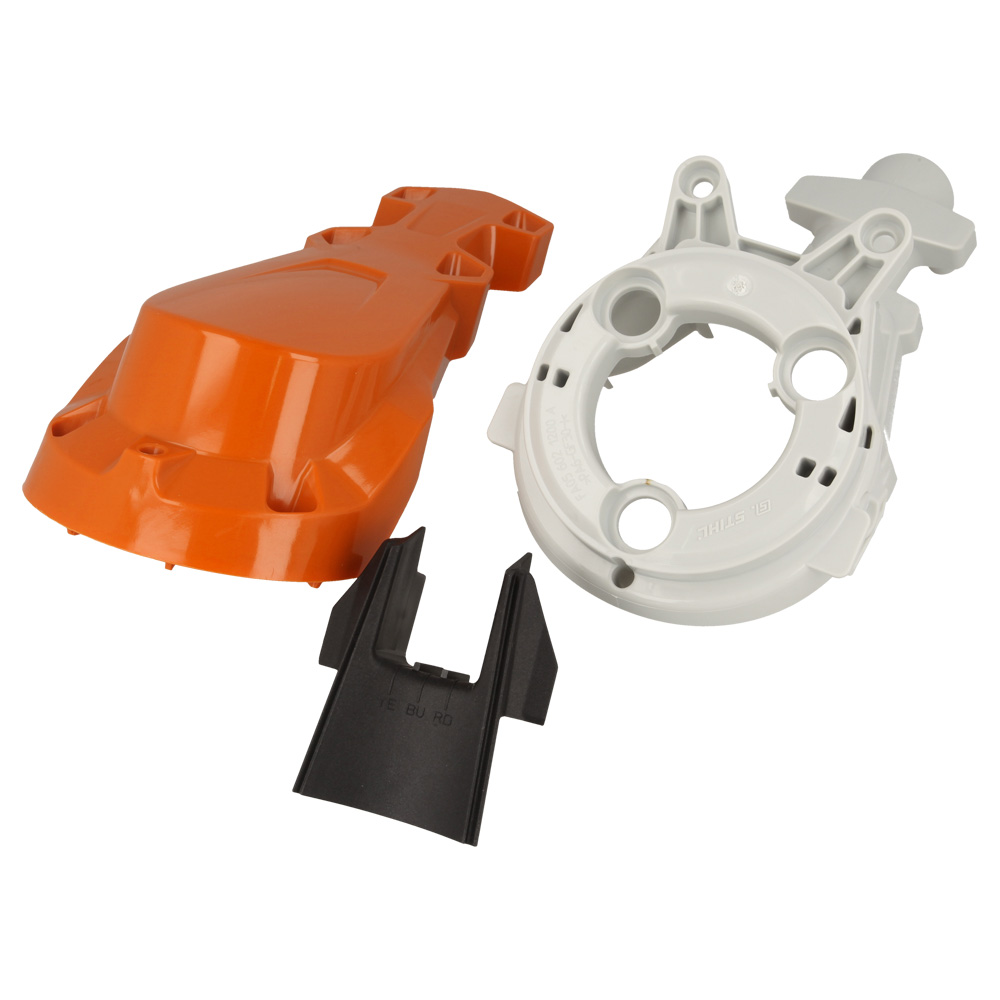

30	STFA05 600 0801 Available to backorder	Motor housing (Contains 31)	£48.58 £40.48
31	STFA05 602 1200 Available to backorder	Motor housing	£31.51 £26.26
32	STFA05 713 3400 In stock	Bump guard	£3.43 £2.86

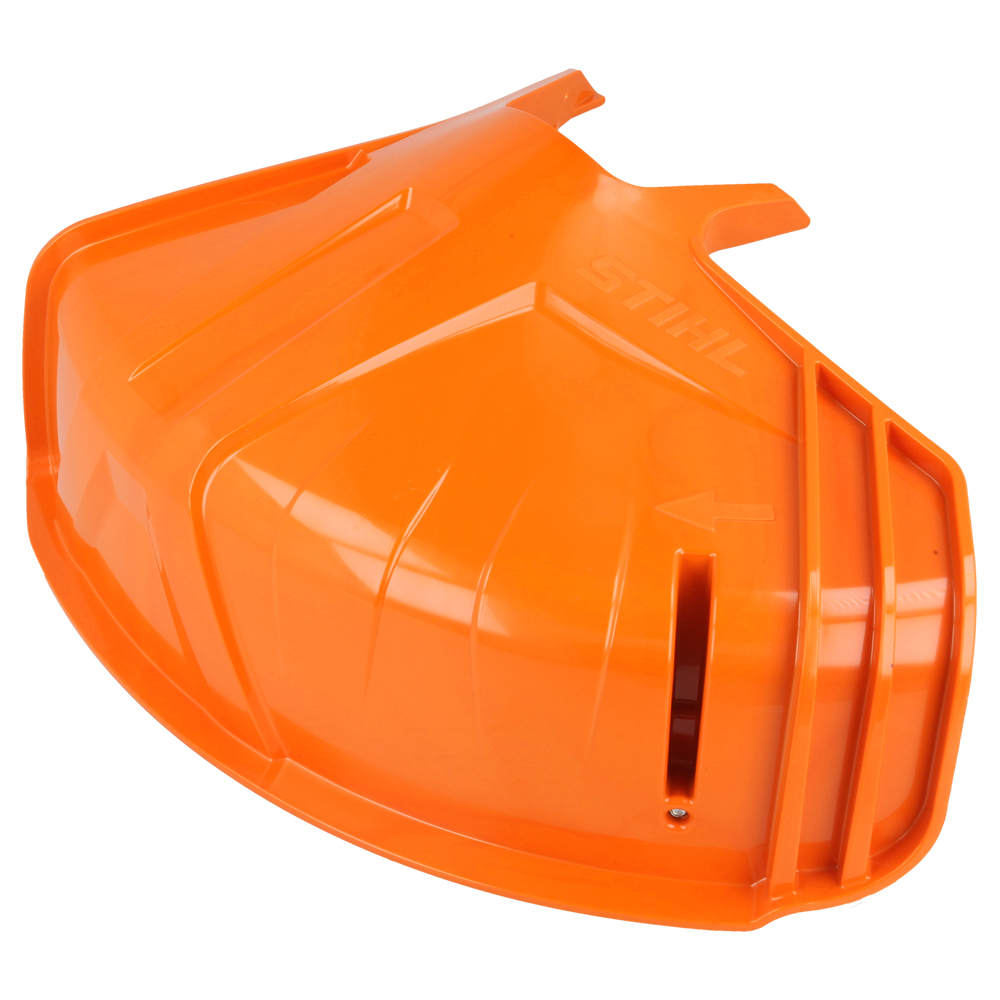

33	STFA05 710 8100 Available to backorder	FS Schutz (Contains 35 - 37)	£18.89 £15.74
35	ST4130 713 4100 In stock	Thread cutter	£2.84 £2.37
36	ST9074 478 4405 In stock	Pan head screw IS P6x14	£0.95 £0.79
37	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.95 £0.79

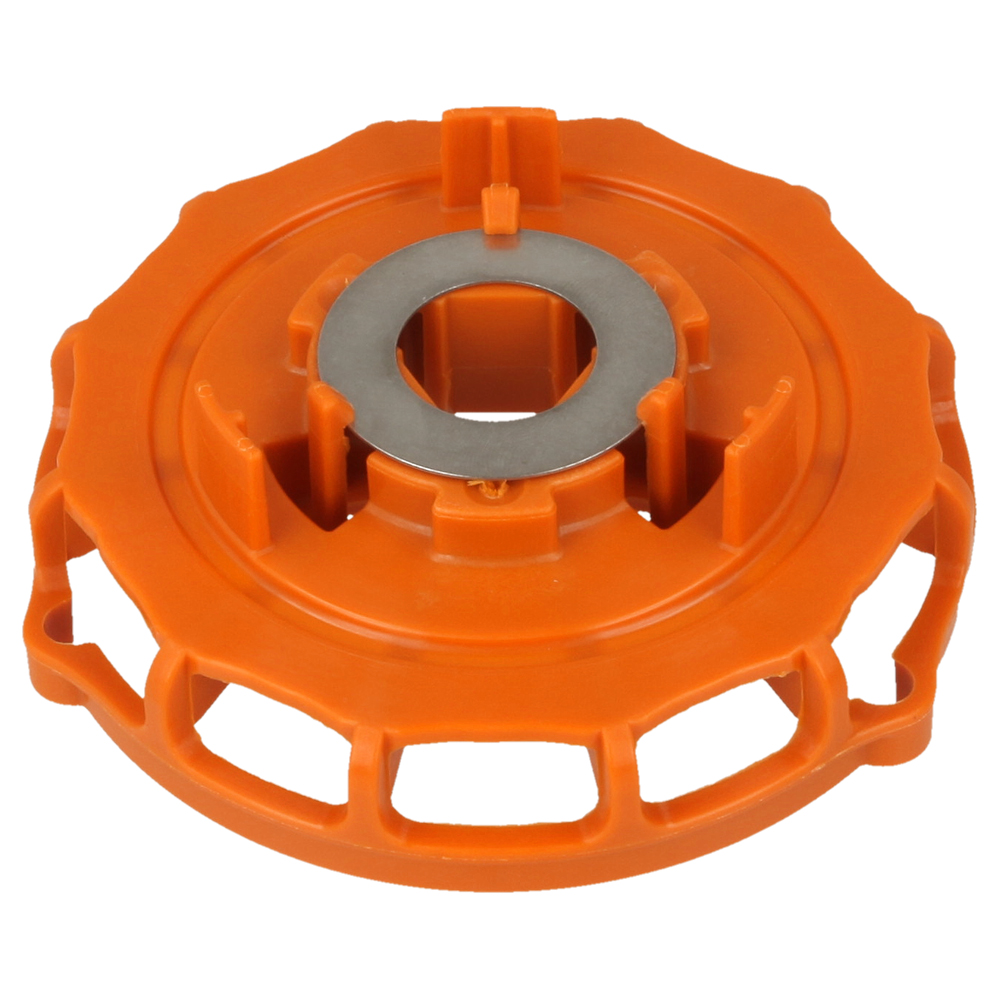

38	STFA05 600 3200 In stock	Fan wheel	£10.98 £9.15
