Stihl FSA200.0 R - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Description

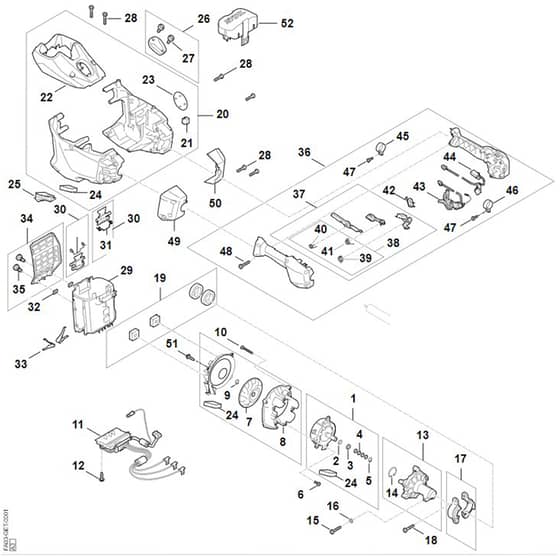

Stihl FSA200.0 R - Electric Motor, Motor Housing, Control Handle - Parts Diagram

	Part No.	Details
1	STFA03 600 0201 Available to backorder	Electric motor (Contains 2 - 5+ 24)	£195.84 £163.20
2	STFA03 608 1100 Available to backorder	Shim	£1.14 £0.95
3	STFA03 608 3800 Available to backorder	Sleeve	£1.94 £1.62
4	ST9645 945 7608 Available to backorder	O-ring N 10x10-NBR70	£0.58 £0.48
5	ST9455 621 1130 In stock	Circlip 12x1	£0.68 £0.57
6	ST9022 313 0650 Available to backorder	Spline screw IS-M4x10	£0.79 £0.66
7	STFA03 600 3200 Available to backorder	Fan wheel (Contains 45543)	£34.37 £28.64
8	STFA03 600 4400 Available to backorder	Spiral housing	£20.94 £17.45
10	ST9075 478 4167 In stock	Pan head self-tapping screw IS-D5x32	£1.08 £0.90
11	STFA03 430 1400 Available to backorder	Electronic module	£220.68 £183.90
12	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.79 £0.66
13	STFA03 600 3401 Available to backorder	Flange (Contains 14 + 24)	£61.56 £51.30
14	ST9456 621 3600 In stock	Circlips 32x12	£1.31 £1.09
15	ST9075 478 4720 Available to backorder	Pan head self-tapping screw IS-D6x35	£1.26 £1.05
16	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
17	STFA03 790 4700 Available to backorder	Clamp	£7.74 £6.45
18	ST9074 477 4132 In stock	Pan head self-tapping screw IS-P5x18	£0.95 £0.79
19	STFA03 007 4900 Available to backorder	Buffer kit	£7.18 £5.98
20	STFA03 600 0821 Available to backorder	Motor housing (Contains 21 - 24)	£129.84 £108.20
21	STFA03 609 0100 Available to backorder	Gasket	£1.14 £0.95
22	STFA03 084 0900 Available to backorder	Shroud	£23.11 £19.26
23	STFA03 967 1520 Available to backorder	Model plate FSA 200 R	£4.68 £3.90
24	STFA03 403 2400 Available to backorder	Foam insert	£2.74 £2.28
25	STFA03 602 0402 Available to backorder	Cover	£3.64 £3.03
26	STFA01 820 8000 Available to backorder	Cover (Contains 27)	£5.36 £4.47
27	ST9074 477 2980 Available to backorder	Pan head self-tapping screw IS-P4x12	£0.79 £0.66
29	STFA03 403 3200 Available to backorder	Battery compartment	£37.09 £30.91
30	ST4851 430 9800 In stock	Trigger interlock (Contains 31)	£5.14 £4.28
31	ST0000 998 0402 Available to backorder	Torsion spring	£1.37 £1.14
32	STFA03 955 1000 Available to backorder	Square nut	£1.14 £0.95
33	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
34	STFA03 080 1900 Available to backorder	Filter (Contains 35)	£18.79 £15.66
35	ST9022 319 1028 In stock	Screw IS-M5x14	£0.83 £0.69
36	STFA03 790 1320 Available to backorder	Control handle (Contains 37 - 48)	£110.04 £91.70
37	STFA03 007 3820 Available to backorder	Control lever kit (Contains 38 - 41)	£13.20 £11.00
38	STFA03 007 1320 Available to backorder	Set of mounting hardware (Contains 39 - 41)	£2.28 £1.90
39	STFA03 182 4503 Available to backorder	Torsion spring	£1.37 £1.14
40	STFA03 182 4500 Available to backorder	Torsion spring	£1.14 £0.95
42	STFA03 430 0500 Available to backorder	Switch	£3.19 £2.66
43	STFA03 430 2120 Available to backorder	Switch lever	£43.80 £36.50
45	ST4144 791 9401 Available to backorder	Hose clamp	£3.31 £2.76
46	ST4144 791 9400 Available to backorder	Hose clamp	£3.52 £2.93
47	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.83 £0.69
48	ST9074 478 3025 In stock	Pan head screw IS P4x16	£0.79 £0.66
52	ST4850 602 0900 Available to backorder	Cover	£4.68 £3.90
