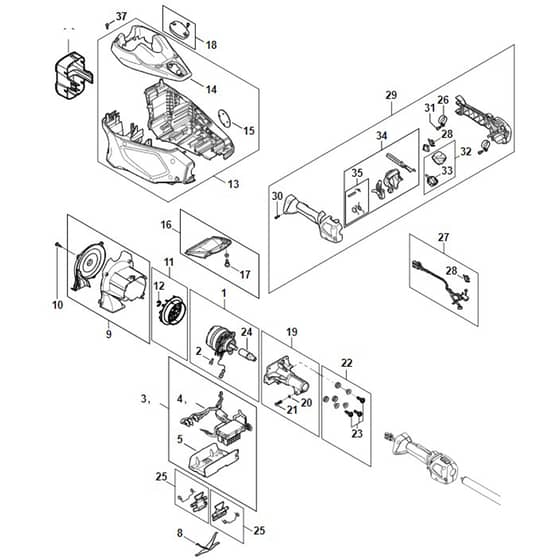

Stihl FSA135R - Electric Motor, Motor Housing, Control Handle Fsa 135 R - Parts Diagram

Name: Stihl FSA135R - Electric Motor, Motor Housing, Control Handle Fsa 135 R - Parts Diagram
SKU: fsa135r_electric_motor_motor_housing_control_handle_fsa_135_r-gr
Price: 0.29 GBP
Availability: InStock

Part No. fsa135r_electric_motor_motor_housing_control_handle_fsa_135_r-gr

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FSA135R - Electric Motor, Motor Housing, Control Handle Fsa 135 R - Parts Diagram

Description

Stihl FSA135R - Electric Motor, Motor Housing, Control Handle Fsa 135 R - Parts Diagram

	Part No.	Details
1	STFA01 600 0203 Available to backorder	Electric motor (Contains 2+ 24)	£167.16 £139.30
2	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.80 £0.67
3	STFA01 430 1402 Available to backorder	Electronic module (Contains 45416)	£174.96 £145.80
4	STFA01 430 1400 Available to backorder	Electronic module	£166.08 £138.40
5	STFA01 404 0800 Available to backorder	Contact plate	£13.32 £11.10
8	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
9	STFA01 820 8100 Available to backorder	Spiral housing	£21.95 £18.29
10	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.79 £0.66
11	STFA01 600 3200 Available to backorder	Fan wheel (Contains 12)	£8.42 £7.02
12	ST9460 624 0800 Available to backorder	E-clip 8	£0.35 £0.29
13	STFA01 600 0802 Available to backorder	Motor housing (Contains 14)	£133.08 £110.90
14	STFA01 084 0900 Available to backorder	Shroud	£27.54 £22.95
15	STFA01 967 1520 Available to backorder	Model plate FSA 135 R	£4.68 £3.90
16	STFA01 080 1900 Available to backorder	Filter (Contains 17)	£16.74 £13.95
17	ST9022 319 1028 In stock	Screw IS-M5x14	£0.83 £0.69
18	STFA01 820 8000 Available to backorder	Cover	£5.36 £4.47
19	STFA01 600 3401 Available to backorder	Flange (Contains 20 + 21)	£41.42 £34.52
20	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
21	ST9075 478 4720 Available to backorder	Pan head self-tapping screw IS-D6x35	£1.26 £1.05
22	STFA01 007 1000 Available to backorder	Screw kit (Contains 23)	£10.60 £8.83
23	ST0000 951 1100 In stock	Screw	£1.66 £1.38
24	STFA01 764 4200 Available to backorder	Carrier	£15.71 £13.09
25	ST4851 430 9800 In stock	Trigger interlock	£5.14 £4.28
26	STFA01 790 4700 Available to backorder	Clamp	£4.45 £3.71
27	STFA01 430 2220 Available to backorder	Wiring harness (Contains 28)	£24.61 £20.51
28	ST1250 430 0500 In stock	Switch	£3.20 £2.67
29	STFA01 790 1320 Available to backorder	Control handle (Contains 26 - 28 + 30 - 35)	£105.00 £87.50
30	ST9074 478 3025 In stock	Pan head screw IS P4x16	£0.79 £0.66
31	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.83 £0.69
32	STFA01 430 0501 Available to backorder	Switch (Contains 33)	£15.02 £12.52
33	STFA01 430 0502 Available to backorder	Switch	£10.82 £9.02
34	STFA01 007 3820 In stock	Control lever kit (Contains 35)	£15.66 £13.05
35	STFA01 007 1320 Available to backorder	Set of mounting hardware	£2.96 £2.47
44	ST4137 711 7300 In stock	Flexible liner 1455 mm	£12.97 £10.81
