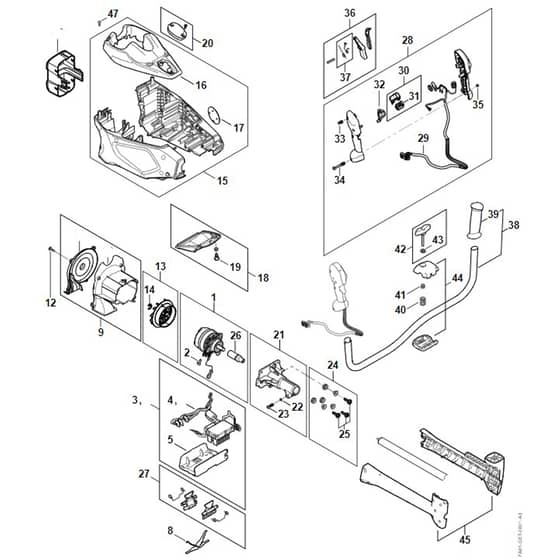

Stihl FSA135 - Electric Motor, Motor Housing, Bike Handle Fsa 135 - Parts Diagram

Name: Stihl FSA135 - Electric Motor, Motor Housing, Bike Handle Fsa 135 - Parts Diagram
SKU: fsa135_electric_motor_motor_housing_bike_handle_fsa_135-group
Price: 0.29 GBP
Availability: InStock

Part No. fsa135_electric_motor_motor_housing_bike_handle_fsa_135-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FSA135 - Electric Motor, Motor Housing, Bike Handle Fsa 135 - Parts Diagram

Description

Stihl FSA135 - Electric Motor, Motor Housing, Bike Handle Fsa 135 - Parts Diagram

	Part No.	Details
1	STFA01 600 0203 Available to backorder	Electric motor (Contains 2+ 26)	£167.16 £139.30
2	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.80 £0.67
3	STFA01 430 1402 Available to backorder	Electronic module (Contains 45416)	£174.96 £145.80
4	STFA01 430 1400 Available to backorder	Electronic module	£166.08 £138.40
5	STFA01 404 0800 Available to backorder	Contact plate	£13.32 £11.10
8	STMA01 791 3100 Available to backorder	Spring	£2.40 £2.00
9	STFA01 820 8100 Available to backorder	Spiral housing (Contains 45606)	£21.95 £18.29
12	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.79 £0.66
13	STFA01 600 3200 Available to backorder	Fan wheel (Contains 14)	£8.42 £7.02
14	ST9460 624 0800 Available to backorder	E-clip 8	£0.35 £0.29
15	STFA01 600 0802 Available to backorder	Motor housing (Contains 16)	£133.08 £110.90
16	STFA01 084 0900 Available to backorder	Shroud	£27.54 £22.95
17	STFA01 967 1500 Available to backorder	Model plate FSA 135	£4.68 £3.90
18	STFA01 080 1900 Available to backorder	Filter (Contains 19)	£16.74 £13.95
19	ST9022 319 1028 In stock	Screw IS-M5x14	£0.83 £0.69
20	STFA01 820 8000 Available to backorder	Cover	£5.36 £4.47
21	STFA01 600 3401 Available to backorder	Flange (Contains 22 + 23)	£41.42 £34.52
22	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
23	ST9075 478 4720 Available to backorder	Pan head self-tapping screw IS-D6x35	£1.26 £1.05
24	STFA01 007 1000 Available to backorder	Screw kit (Contains 25)	£10.60 £8.83
25	ST0000 951 1100 In stock	Screw	£1.66 £1.38
26	STFA01 764 4200 Available to backorder	Carrier	£15.71 £13.09
27	ST4851 430 9800 In stock	Trigger interlock	£5.14 £4.28
28	STFA01 790 1300 Available to backorder	Control handle (Contains 29 - 37)	£104.52 £87.10
29	STFA01 440 3003 Available to backorder	Wiring harness	£30.40 £25.33
30	STFA01 430 0501 Available to backorder	Switch (Contains 31)	£15.02 £12.52
31	STFA01 430 0502 Available to backorder	Switch	£10.82 £9.02
32	STBA01 430 0500 Available to backorder	Switch	£3.08 £2.57
33	ST9074 478 3025 In stock	Pan head screw IS P4x16	£0.79 £0.66
34	ST9022 341 1220 In stock	Spline screw IS-M5x48	£1.43 £1.19
35	ST9214 320 0700 In stock	Lock nut M5	£0.48 £0.40
36	STFA01 007 3800 Available to backorder	Control lever kit (Contains 37)	£14.34 £11.95
37	STFA01 007 1300 Available to backorder	Set of mounting hardware	£3.19 £2.66
38	ST4147 790 1704 Available to backorder	Handlebar (Contains 39)	£48.71 £40.59
39	ST4147 791 0302 Available to backorder	Handle	£20.59 £17.16
40	ST0000 997 1701 In stock	Compression spring	£1.66 £1.38
41	ST0000 997 1304 Available to backorder	Compression spring	£1.37 £1.14
42	ST4128 790 7501 In stock	Tommy screw (Contains 43)	£5.56 £4.63
44	ST4128 790 4800 In stock	Clamp	£18.29 £15.24
45	STFA01 790 1400 In stock	Housing	£48.46 £40.38
