Stihl FS561 C-EM - Gear Head - Parts Diagram

Stihl FS561 C-EM - Gear Head - Parts Diagram

Part No. fs561_c_em_gear_head-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS561 C-EM - Gear Head - Parts Diagram

Stihl FS561 C-EM - Gear Head - Parts Diagram

Description

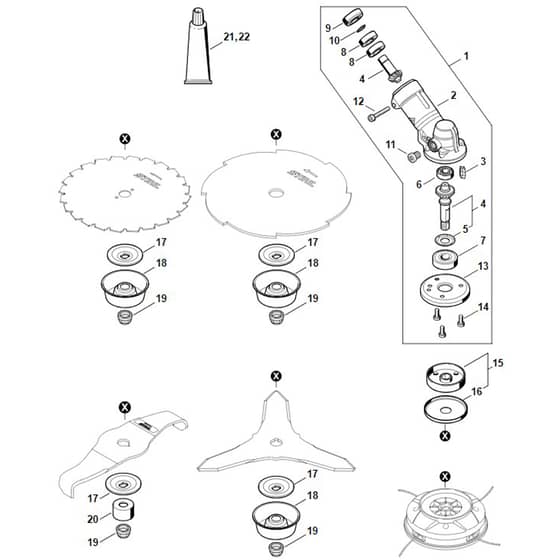

Stihl FS561 C-EM - Gear Head - Parts Diagram

Ref.		Img.	Part No.	Details
	1		ST4148 640 0108 Available to backorder	Gear head (Contains 2 - 14)		£252.72 £210.60
	2		ST4148 641 0302 Available to backorder	Gear housing		£118.80 £99.00
	3		ST4147 641 0800 Available to backorder	Retaining plug		£2.28 £1.90
	4		ST4148 640 7303 Available to backorder	Set of pinions (Contains 5)		£106.20 £88.50
	5		ST4148 642 9501 Available to backorder	Slinger disc		£1.94 £1.62
	6		ST9503 003 0216 Available to backorder	Grooved ball bearing DIN625-6001		£11.51 £9.59
	8		ST9503 003 5300 Available to backorder	Grooved ball bearing DIN625-6002-DDU		£15.12 £12.60
	9		ST4148 643 5900 Available to backorder	Threaded ring		£26.05 £21.71
	11		ST4148 641 6500 Available to backorder	Screw plug		£3.08 £2.57
	13		ST4148 717 2702 Available to backorder	Guard ring		£12.52 £10.43
	15		ST4148 710 3801 Available to backorder	Thrust plate (Contains 16)		£22.93 £19.11
	16		ST4148 710 1000 In stock	Set of protecting disks		£6.48 £5.40
	17		ST4116 713 1601 In stock	Thrust washer Ø 70 mm		£10.15 £8.46
	18		ST4119 713 3100 In stock	Rider plate		£10.61 £8.84
	19		ST4116 642 7601 In stock	Collar nut M14x1.5 l/h thread		£5.18 £4.32
	20		ST4116 717 2702 In stock	Guard ring		£13.68 £11.40
	21		ST0781 120 1117 In stock	Gearbox grease (80g tube)		£9.02 £7.52
	22		ST0781 120 1118 In stock	Gear lubricant 225 g		£21.96 £18.30

Description

Stihl FS561 C-EM - Gear Head - Parts Diagram
