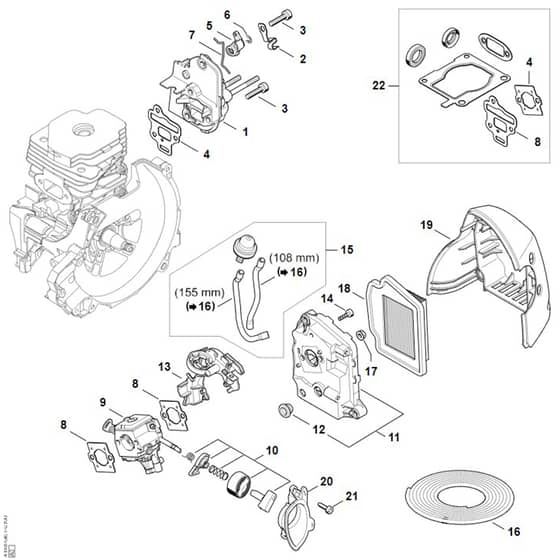

Stihl FS561.0 C-EM - Spacer Flange, Air Filter, Filter Housing - Parts Diagram

Name: Stihl FS561.0 C-EM - Spacer Flange, Air Filter, Filter Housing - Parts Diagram
SKU: fs561_0_c_em_spacer_flange_air_filter_filter_housing-group
Price: 0.4 GBP
Availability: InStock

Part No. fs561_0_c_em_spacer_flange_air_filter_filter_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS561.0 C-EM - Spacer Flange, Air Filter, Filter Housing - Parts Diagram

Description

Stihl FS561.0 C-EM - Spacer Flange, Air Filter, Filter Housing - Parts Diagram

	Part No.	Details

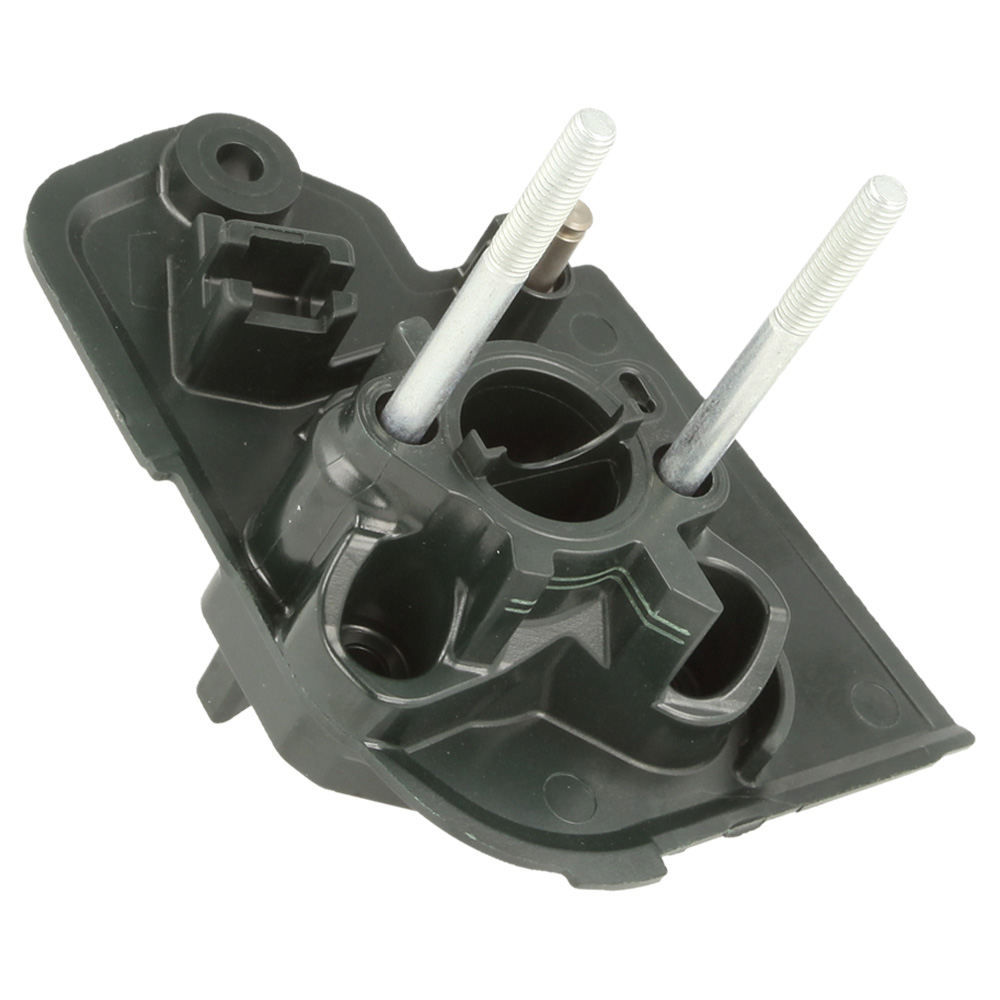

1	ST4148 120 2300 Available to backorder	Spacer flange	£16.61 £13.84
2	ST4148 182 9600 Available to backorder	Ground plate	£1.60 £1.33
3	ST9022 341 1045 Available to backorder	Spline screw IS-M5x24	£0.91 £0.76
4	ST4148 129 0900 Available to backorder	Gasket	£2.28 £1.90
5	ST4148 182 2800 Available to backorder	Lever	£3.52 £2.93
6	ST9460 624 0400 In stock	E-clip 4	£0.53 £0.44
7	ST4148 182 1500 Available to backorder	Throttle rod	£1.37 £1.14
8	ST4148 129 0901 Available to backorder	Gasket	£2.28 £1.90
9	ST4148 120 0603 Available to backorder	Carburetor HDA-348A	£199.08 £165.90
10	ST4148 120 9500 Available to backorder	Set of carburetor levers	£6.60 £5.50
11	ST4148 140 2800 Available to backorder	Filter housing (Contains 12)	£26.74 £22.28
12	ST4134 123 7500 Available to backorder	Grommet	£1.60 £1.33
13	ST4148 352 8200 Available to backorder	Clamp	£2.28 £1.90
14	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.83 £0.69
15	ST4148 350 6200 Available to backorder	Fuel pump (Contains 16)	£12.19 £10.16
16	ST0000 937 5004 Available to backorder	Hose 3.1x5.7 mm x 1 m R5	£23.89 £19.91
17	ST9216 261 0700 In stock	Hexagon nut M5	£0.48 £0.40
18	ST4148 141 0300 In stock	Air filter	£10.72 £8.93
19	ST4148 140 1000 Available to backorder	Filter cover	£25.03 £20.86
20	ST4148 141 9800 Available to backorder	Grommet	£2.83 £2.36
21	ST9075 478 3015 In stock	Pan head self-tapping screw IS-D4x15	£0.83 £0.69
22	ST4148 007 1600 Available to backorder	Set of gaskets (Contains 45508)	£17.17 £14.31
