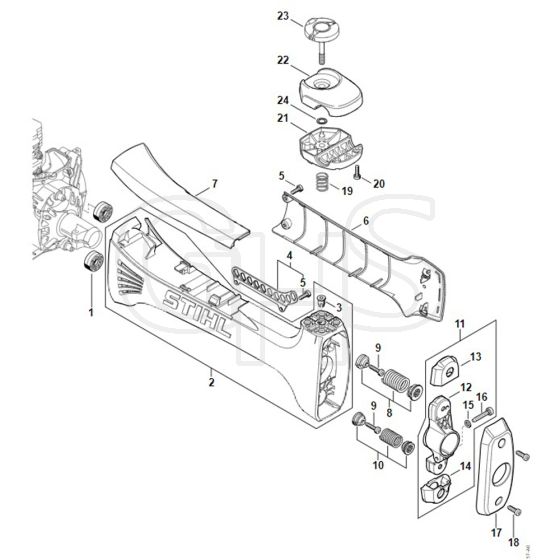

Stihl FS561.0 C-EM - Av System - Parts Diagram

Description

Stihl FS561.0 C-EM - Av System - Parts Diagram

	Part No.	Details
1	ST4148 792 9303 In stock	Rubber buffer	£2.50 £2.08
2	ST4148 790 0904 Available to backorder	AV housing (Contains 3)	£66.60 £55.50
3	ST9799 003 0505 Available to backorder	Helicoil thread insert M8x16.5	£1.03 £0.86

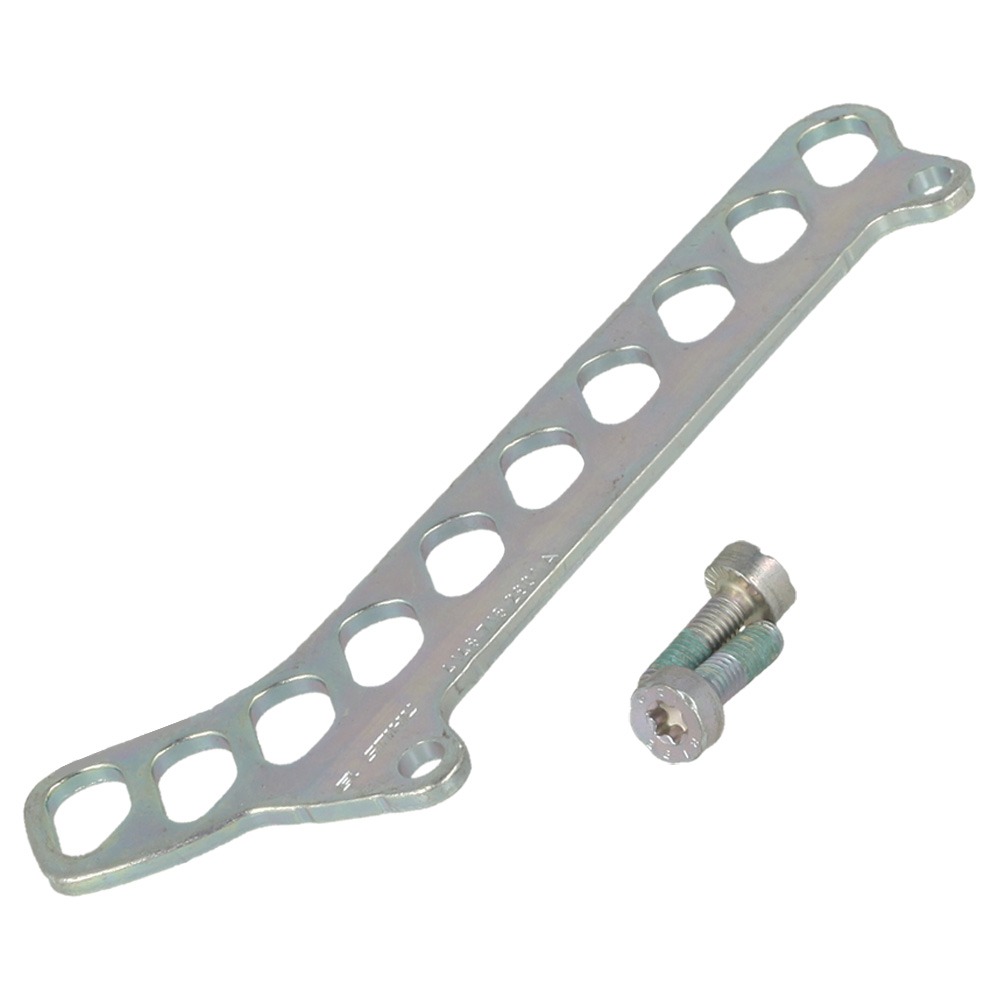

4	ST4148 716 2951 Available to backorder	Perforated strip (Contains 5)	£16.61 £13.84
5	ST9022 341 0983 In stock	Spline screw IS-M5x16	£0.95 £0.79
6	ST4148 791 4300 Available to backorder	Guard	£10.60 £8.83
7	ST4148 791 7500 Available to backorder	Cover	£6.49 £5.41
8	ST4148 790 8351 Available to backorder	AV-Spring	£14.00 £11.67
9	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
10	ST4148 790 8350 Available to backorder	AV-Spring	£10.92 £9.10
11	ST4148 790 7600 In stock	Support (Contains 12 - 16)	£26.98 £22.48
12	ST4148 792 1000 Available to backorder	Support	£19.69 £16.41
13	ST4148 792 2800 Available to backorder	Rubber stop	£3.52 £2.93
14	ST4148 792 2801 Available to backorder	Rubber stop	£3.77 £3.14
15	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
16	ST9075 478 4720 Available to backorder	Pan head self-tapping screw IS-D6x35	£1.26 £1.05
17	ST4148 792 2700 Available to backorder	Cover	£4.68 £3.90
18	ST9074 478 4435 In stock	Pan head screw IS P6x19	£0.92 £0.77
19	ST0000 997 1701 In stock	Compression spring	£1.66 £1.38
20	ST9022 341 0980 In stock	Pan head screw IS M5x16	£0.95 £0.79
21	ST4147 791 0901 Available to backorder	Clamp	£13.32 £11.10
22	ST4147 791 0904 Available to backorder	Clamp	£13.08 £10.90
23	ST4147 790 7503 In stock	Tommy screw	£13.44 £11.20
24	ST9646 945 0490 In stock	O-ring 7x1.5	£0.48 £0.40
