Stihl FS491.0 C-EM - Ignition System - Parts Diagram

Description

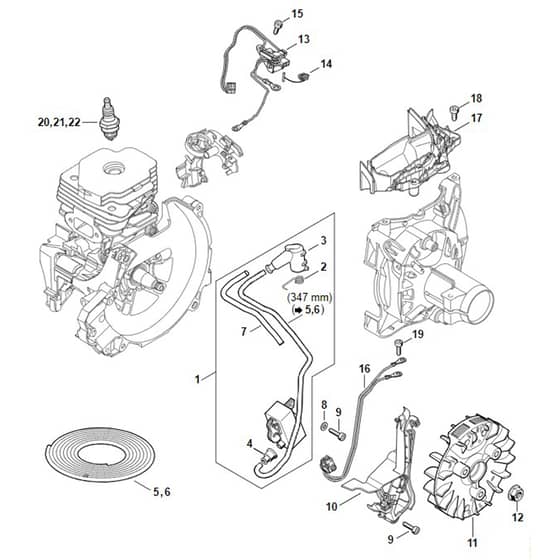

Stihl FS491.0 C-EM - Ignition System - Parts Diagram

	Part No.	Details
1	ST4148 400 4720 Available to backorder	Control unit (Contains 2 - 4 + 7)	£124.32 £103.60
2	ST0000 998 0604 In stock	Spark plug contact spring	£1.43 £1.19
4	ST0000 989 1002 In stock	Grommet	£2.72 £2.27
6	ST0000 930 2251 In stock	Ignition lead 10 m	Was £54.34 £45.28 Special Price £41.40 £34.50
7	ST0000 937 4109 Available to backorder	Hose 138 mm	£2.28 £1.90
8	ST9291 021 0100 In stock	Washer 4.3	£0.53 £0.44
9	ST9075 478 3018 In stock	Pan head self-tapping screw IS-D4x18	£0.83 £0.69
10	ST4148 352 3001 Available to backorder	Cover	£3.08 £2.57
11	ST4148 400 1201 Available to backorder	Flywheel	£150.72 £125.60
12	ST0000 955 0802 In stock	Collar nut M8x1	£1.39 £1.16
13	ST4148 430 1000 Available to backorder	Trigger unit	£42.43 £35.36
14	ST0000 430 4801 Available to backorder	Plug	£3.31 £2.76
15	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.83 £0.69
16	ST4148 440 3002 Available to backorder	Wiring harness	£10.24 £8.53
17	ST4148 448 1201 Available to backorder	Lead retainer	£10.24 £8.53
18	ST9075 478 4115 In stock	Pan head self-tapping screw IS-D5x16	£0.95 £0.79
20	2134 In stock	Spark plug NGK BPMR7A	£2.80 £2.33
