Stihl FS461.0 C-EM - Gear Head - Parts Diagram

Stihl FS461.0 C-EM - Gear Head - Parts Diagram

Part No. fs461_0_c_em_gear_head-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS461.0 C-EM - Gear Head - Parts Diagram

Stihl FS461.0 C-EM - Gear Head - Parts Diagram

Description

Stihl FS461.0 C-EM - Gear Head - Parts Diagram

Ref.		Img.	Part No.	Details
	1		ST4147 640 0106 Available to backorder	Gear head (Contains 2 - 14)		£253.20 £211.00
	2		ST4147 641 0302 Available to backorder	Gear housing		£104.52 £87.10
	3		ST4147 641 0800 Available to backorder	Retaining plug		£2.28 £1.90
	4		ST4147 640 7304 Available to backorder	Set of pinions (Contains 5)		£92.40 £77.00
	5		ST4148 642 9500 Available to backorder	Slinger disc		£1.94 £1.62
	6		ST9503 003 0103 Available to backorder	Grooved ball bearing 6000		£11.51 £9.59
	8		ST9503 003 5129 Available to backorder	Grooved ball bearing DIN625-6001-2RS-C3		£11.51 £9.59
	9		ST9455 021 1131 Available to backorder	Circlip 12x1		£0.68 £0.57
	10		ST0000 953 1001 In stock	Stud		£2.50 £2.08
	11		ST4148 641 6500 Available to backorder	Screw plug		£3.08 £2.57
	12		ST0000 790 6105 Available to backorder	Screw assy. M6		£2.38 £1.98
	13		ST4148 717 2702 Available to backorder	Guard ring		£12.52 £10.43
	14		ST9022 399 1262 Available to backorder	Spline screw IS-M6x12-10.9		£0.79 £0.66
	15		ST4148 710 3801 Available to backorder	Thrust plate (Contains 16)		£22.93 £19.11
	16		ST4148 710 1000 In stock	Set of protecting disks		£6.48 £5.40
	17		ST4116 713 1601 In stock	Thrust washer Ø 70 mm		£10.15 £8.46
	18		ST4119 713 3100 In stock	Rider plate		£10.61 £8.84

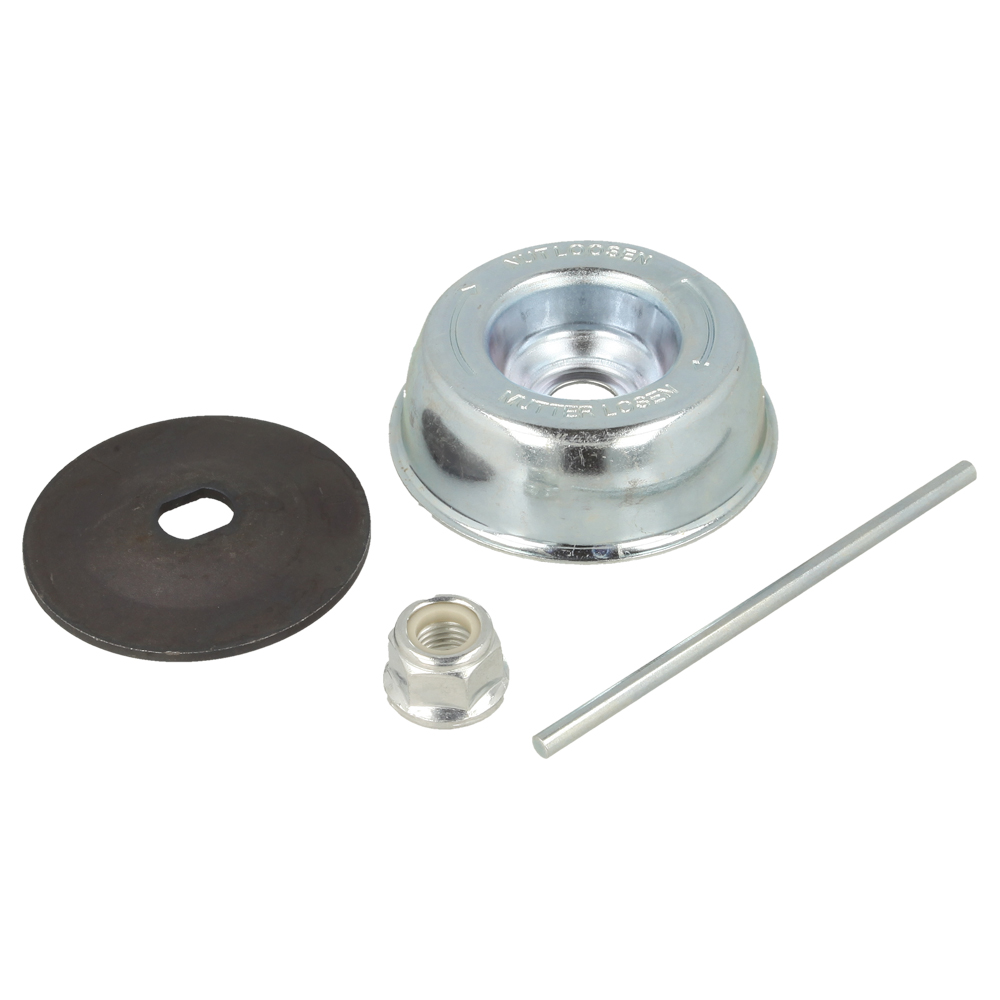

	0		6941 Out of stock	Blade Fixing Kit		£20.30 £16.92
	19		ST4119 642 7600 In stock	Collar nut M12x1.5 l/h thread		£5.06 £4.22
	20		ST4116 717 2702 In stock	Guard ring		£13.68 £11.40
	21		ST0781 120 1117 In stock	Gearbox grease (80g tube)		£9.02 £7.52
	22		ST0781 120 1118 In stock	Gear lubricant 225 g		£21.96 £18.30
