Stihl FS460 - Spacer Flange, Air Filter - Parts Diagram

Description

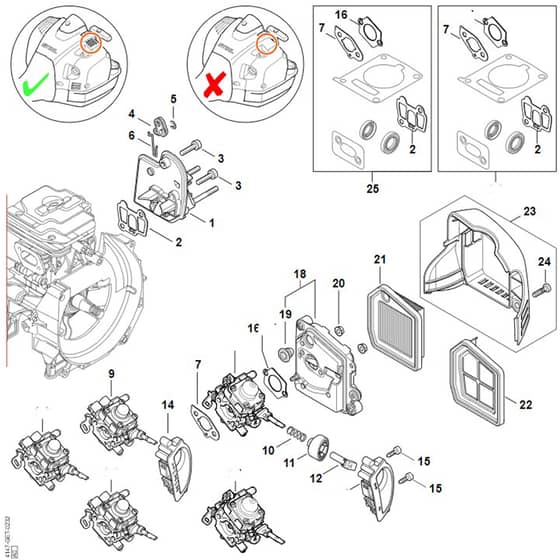

Stihl FS460 - Spacer Flange, Air Filter - Parts Diagram

	Part No.	Details
1	ST4147 120 2301 In stock	Spacer flange	£17.21 £14.34
2	ST4147 129 0903 Available to backorder	Gasket	£2.28 £1.90
3	ST9022 341 1045 Available to backorder	Spline screw IS-M5x24	£0.91 £0.76
4	ST4147 182 2800 Available to backorder	Lever	£3.31 £2.76
5	ST9460 624 0400 In stock	E-clip 4	£0.53 £0.44
6	ST4147 182 1500 In stock	Throttle rod	£1.43 £1.19
7	ST4147 129 0901 In stock	Gasket	£2.36 £1.97
9	ST4147 120 0623 Available to backorder	Carburetor 4147/23	£166.08 £138.40
10	ST0000 997 0842 In stock	Compression spring	£1.19 £0.99
11	ST4147 182 2803 In stock	Lever	£4.01 £3.34
12	ST4147 182 2802 In stock	Lever	£3.65 £3.04
14	ST4147 141 9803 Available to backorder	Grommet	£2.83 £2.36
15	ST9074 478 3005 In stock	Pan head self-tapping screw IS-P4x14	£0.83 £0.69
16	ST4147 129 0902 In stock	Gasket	£2.36 £1.97
18	ST4147 140 2802 Available to backorder	Filter housing (Contains 19)	£21.62 £18.02
19	ST4134 123 7500 Available to backorder	Grommet	£1.60 £1.33
20	ST9216 261 0700 In stock	Hexagon nut M5	£0.48 £0.40
21	ST4147 141 0300 In stock	Air filter	£10.15 £8.46

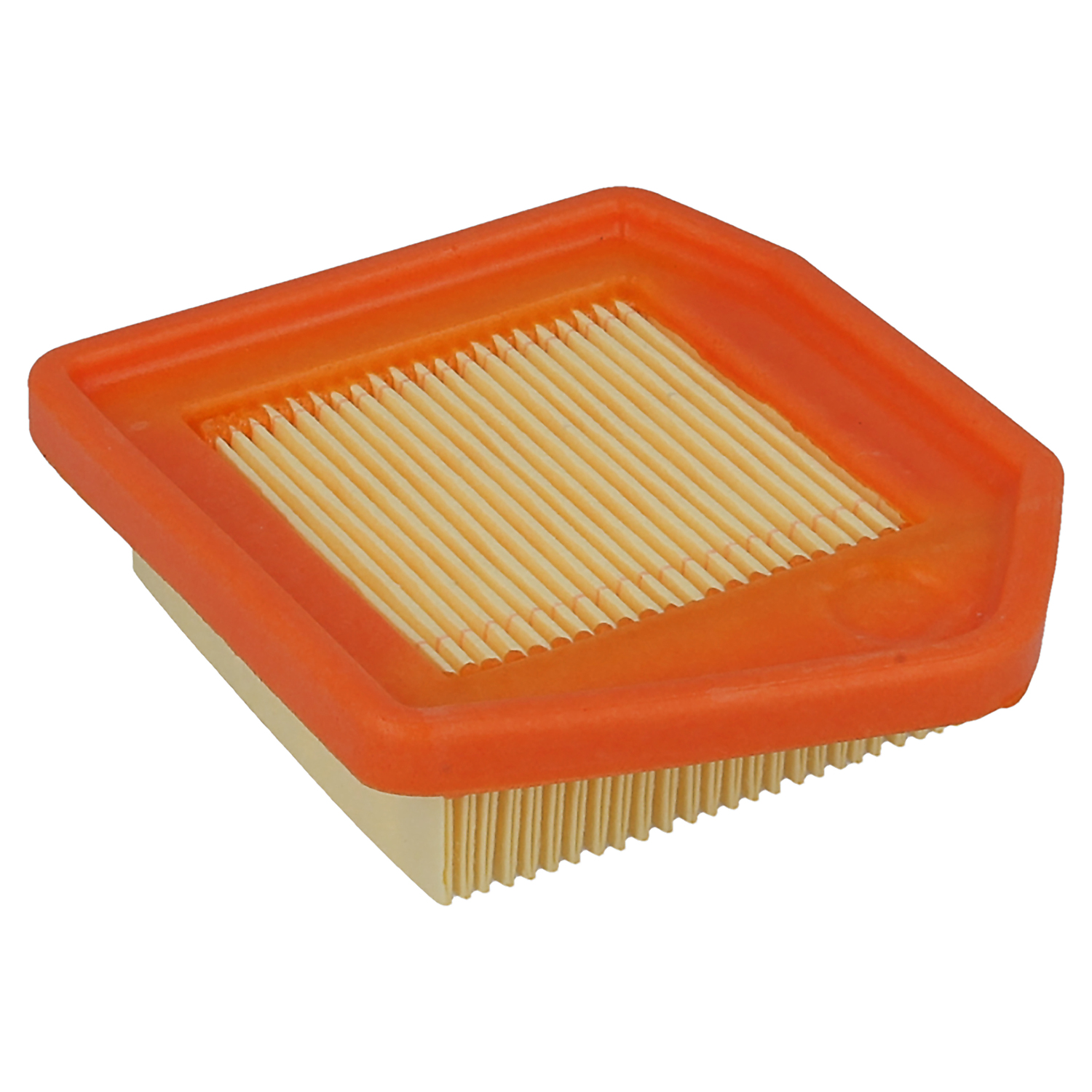

21	6392 In stock	Air Filter	£3.44 £2.87
22	ST4147 140 4400 In stock	Air filter	£8.59 £7.16
23	ST4147 140 1004 Available to backorder	Filter cover (Contains 24)	£23.57 £19.64
24	ST9022 319 1027 In stock	Screw IS-M5x21	£0.95 £0.79
25	ST4147 007 1602 Available to backorder	Set of gaskets (Contains 42553)	£16.87 £14.06
