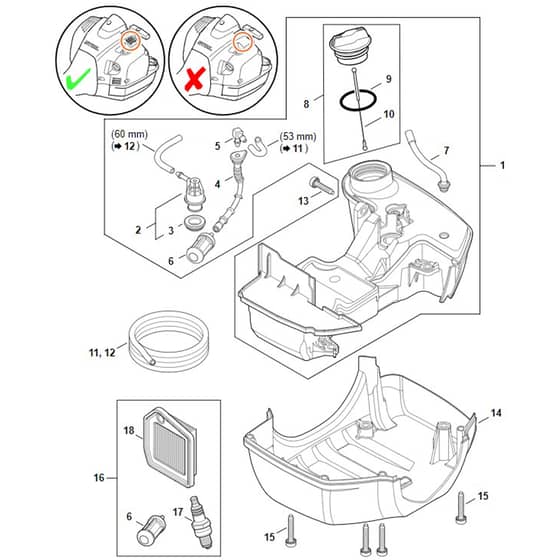

Stihl FS460 - Fuel Tank - Parts Diagram

Part No. fs460_fuel_tank-group

Description

	Part No.	Details
1	ST4147 350 0408 Available to backorder	Fuel tank (Contains 2 - 10)	£97.32 £81.10
2	ST0000 350 5812 In stock	Tank vent	£10.61 £8.84
3	ST4223 353 9201 In stock	Grommet	£1.52 £1.27
4	ST4147 358 0800 In stock	Hose	£4.72 £3.93
5	ST4224 122 3900 In stock	Elbow connector	£3.91 £3.26
6	ST0000 350 3521 In stock	Pickup body	£6.96 £5.80
6	5526 In stock	Fuel Filter	£3.07 £2.56
7	ST4147 358 0803 In stock	Hose	£7.19 £5.99
8	ST0000 350 0527 In stock	Filler cap (Contains 45574)	£7.79 £6.49
9	ST9645 951 3890 Available to backorder	O-ring 35x3-FPM 80	£1.72 £1.43
10	ST0000 350 0900 Available to backorder	Rope	£1.31 £1.09
11	ST0000 937 5004 Available to backorder	Hose 3.1x5.7 mm x 1 m R5	£23.89 £19.91
12	ST0000 930 2803 In stock	Hose 3.1x5.7 mm x 1 m R3	£4.24 £3.53
12	7488 In stock	Fuel Pipe (ID 3.1mm x OD 5.7mm x 1 Metre)	£2.96 £2.47
12	ST0712 923 8004 In stock	Hose 3.1x5.7 mm x 10 m R3	£36.31 £30.26
12	7881 In stock	Fuel Hose (ID 3.1mm x OD 5.7mm x L 10 Metres)	£36.31 £30.26
13	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
14	ST4147 350 6600 In stock	Guard plate	£32.64 £27.20
15	ST9075 478 4167 In stock	Pan head self-tapping screw IS-D5x32	£1.08 £0.90
16	ST4147 007 4102 In stock	Servicing kit 41 (Contains 6 + 17 + 18)	£19.93 £16.61
17	3945 In stock	Spark plug NGK CMR6H	£4.38 £3.65
18	ST4147 141 0300 In stock	Air filter	£10.15 £8.46
18	6392 In stock	Air Filter	£3.44 £2.87
