Stihl FS460 - Carburetor - Parts Diagram

Description

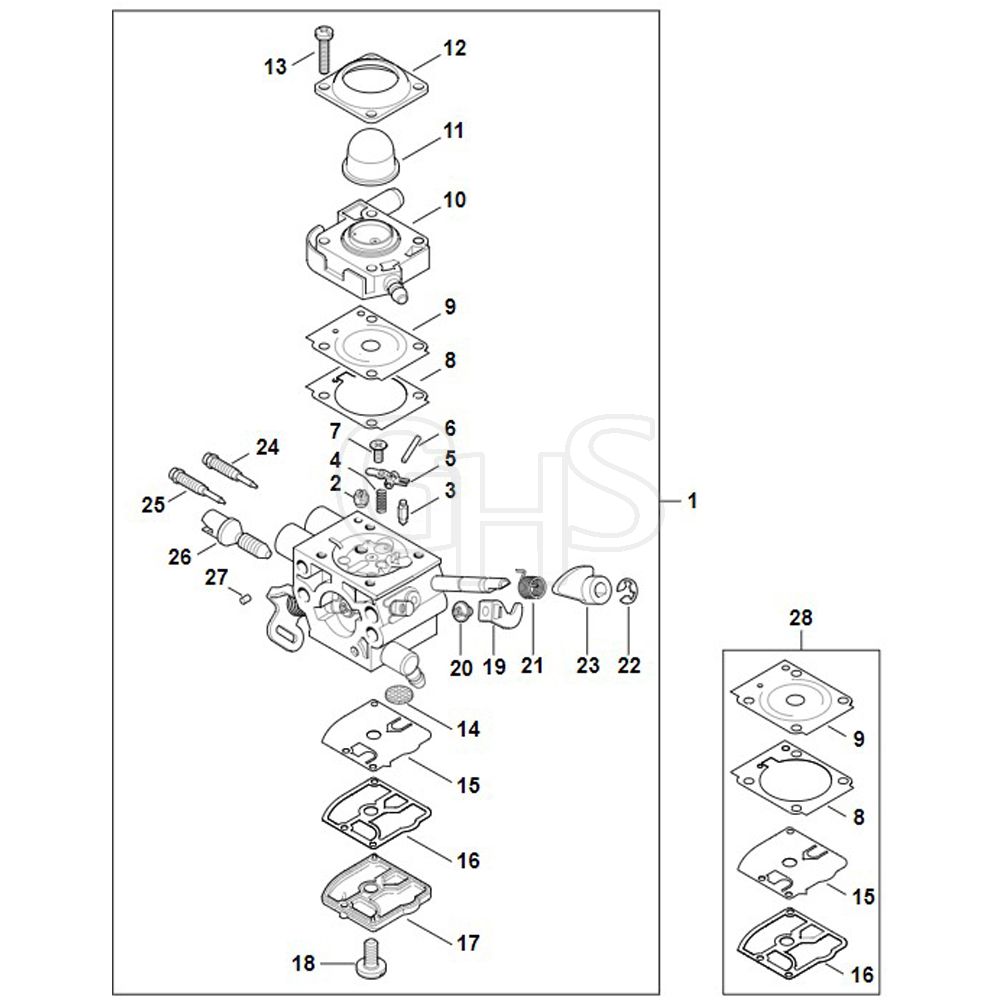

Stihl FS460 - Carburetor - Parts Diagram

	Part No.	Details
1	ST4147 120 0623 Available to backorder	Carburetor 4147/23 (Contains 2 - 27)	£166.08 £138.40
2	ST4228 121 5602 Available to backorder	Fixed jet 0.39	£10.01 £8.34
3	STZ000 018 Z000 Available to backorder	Inlet needle	£9.29 £9.29
4	ST4128 122 3000 Available to backorder	Spring	£2.40 £2.00
5	ST4229 121 5000 Available to backorder	Inlet control lever	£3.31 £2.76
6	ST1120 121 9200 Available to backorder	Spindle	£1.37 £1.14
7	ST0000 122 7101 In stock	Screw	Was £4.40 £3.67 Special Price £3.12 £2.60
8	ST4147 129 0907 Available to backorder	Gasket	£2.28 £1.90
9	STZ010 015 A006 Available to backorder	Metering diaphragm assy	£17.42 £14.52
10	STZ010 056 A011 Available to backorder	Base primer assy	£35.86 £29.88
11	ST4147 121 2702 In stock	Cap	£6.02 £5.02
12	ST4147 121 0800 Available to backorder	End cover	£17.75 £14.79
13	ST4140 122 7100 Available to backorder	Screw	£4.32 £3.60
14	ST1120 121 7800 Available to backorder	Strainer	£3.41 £2.84
15	ST1129 121 4800 In stock	Pump diaphragm	£15.96 £13.30
16	ST1123 129 0905 In stock	Pump gasket	£2.48 £2.07
17	ST1139 121 0800 Available to backorder	End cover	£17.75 £14.79
18	ST1120 122 7800 Available to backorder	Oval head screw	£4.55 £3.79
19	ST4147 121 3501 Available to backorder	Throttle lever	£6.72 £5.60
20	ST4132 122 6600 Available to backorder	Collar screw	£4.55 £3.79
21	ST4147 122 3201 Available to backorder	Torsion spring	£1.14 £0.95
22	ST4147 122 9001 Available to backorder	E-clip	£2.15 £1.79
23	ST4147 121 6605 Available to backorder	Lever	£2.51 £2.09
24	ST4147 122 6702 Available to backorder	High speed screw	£11.15 £9.29
26	STZ010 035 A000 Available to backorder	Idle speed screw assy	£11.15 £9.29
27	ST1125 122 4200 Available to backorder	Clamp	£1.72 £1.43
28	STZ010 003 K008 Available to backorder	Gasket & diaphragm kit (Contains 8 + 9 + 15 + 16)	£30.62 £25.52
