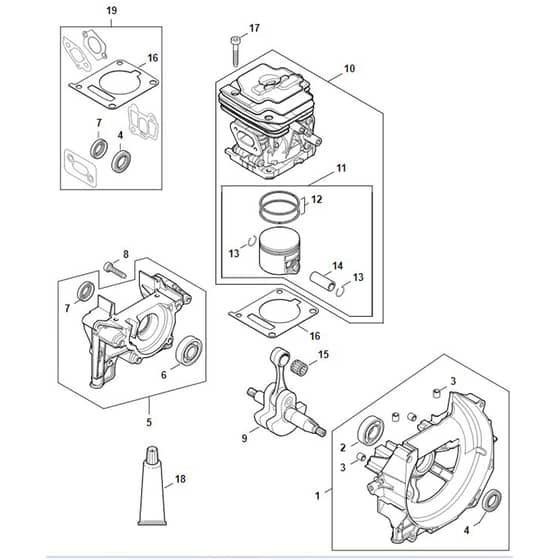

Stihl FS361.0 C-EM - Crankcase, Cylinder - Parts Diagram

Name: Stihl FS361.0 C-EM - Crankcase, Cylinder - Parts Diagram
SKU: fs361_0_c_em_crankcase_cylinder-group
Price: 0.6 GBP
Availability: InStock

Part No. fs361_0_c_em_crankcase_cylinder-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS361.0 C-EM - Crankcase, Cylinder - Parts Diagram

Description

Stihl FS361.0 C-EM - Crankcase, Cylinder - Parts Diagram

	Part No.	Details
1	ST4147 020 2609 Available to backorder	Crankcase fan side (Contains 2 - 4)	£132.00 £110.00
2	ST9503 003 0310 Available to backorder	Grooved ball bearing 6002	£12.64 £10.53
3	ST0000 988 8600 In stock	Sleeve	£1.19 £0.99
4	ST9639 003 1585 In stock	Oil seal 15x25x5	£6.96 £5.80
5	ST4147 020 2904 Available to backorder	Crankcase (Contains 45479)	£129.84 £108.20
6	ST9503 003 0242 Available to backorder	Grooved ball bearing 6201	£14.80 £12.33
7	ST9640 003 1195 In stock	Oil seal 12x22x5	£5.56 £4.63
8	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
9	ST4147 030 0403 Available to backorder	Crankshaft	£139.68 £116.40
10	ST4147 020 1206 Available to backorder	Cylinder with piston Ø 40 mm (Contains 11 - 14)	£186.96 £155.80

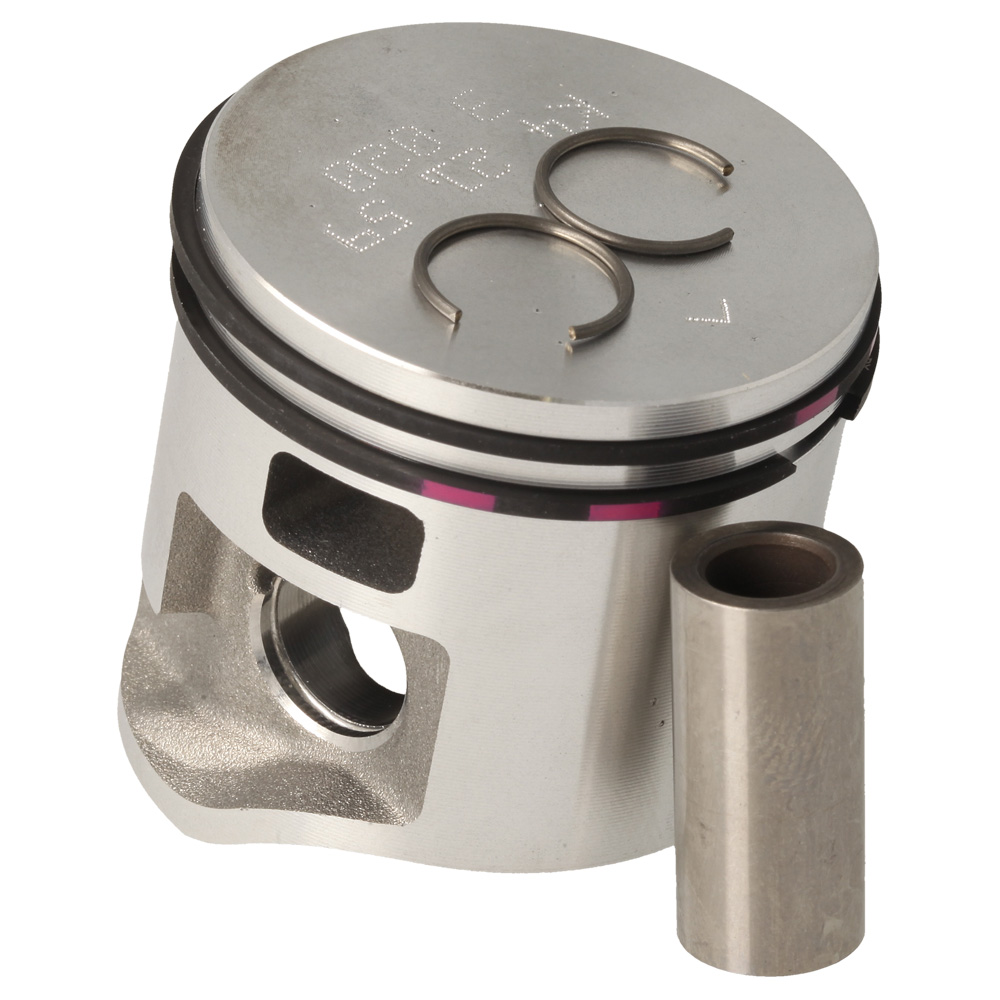

11	ST4147 030 2003 Available to backorder	Piston Ø 40 mm (Contains 12 - 14)	£79.20 £66.00
12	ST4147 034 3003 Available to backorder	Piston ring Ø 40x1.2 mm	£7.61 £6.34
13	ST9463 650 1100 In stock	Snap ring 11	£0.72 £0.60
14	ST4147 034 1500 Available to backorder	Piston pin 11x7x24	£7.28 £6.07
15	ST9512 003 2349 In stock	Needle cage 11x14x125	£7.68 £6.40
16	ST4147 029 2300 In stock	Cylinder gasket	£3.31 £2.76
17	ST9075 478 4167 In stock	Pan head self-tapping screw IS-D5x32	£1.08 £0.90
19	ST4147 007 1603 Available to backorder	Set of gaskets (Contains 42555)	£16.28 £13.57
