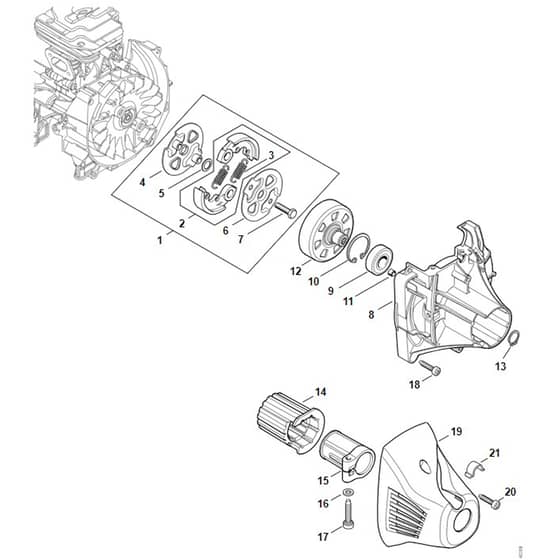

Stihl FS261.0 C-E Z - Clutch, Clutch Housing - Parts Diagram

Name: Stihl FS261.0 C-E Z - Clutch, Clutch Housing - Parts Diagram
SKU: fs261_0_c_e_z_clutch_clutch_housing-group
Price: 0.31 GBP
Availability: InStock

Part No. fs261_0_c_e_z_clutch_clutch_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS261.0 C-E Z - Clutch, Clutch Housing - Parts Diagram

Description

Stihl FS261.0 C-E Z - Clutch, Clutch Housing - Parts Diagram

	Part No.	Details
1	ST4147 160 2002 In stock	Clutch (Contains 2 - 7)	£55.16 £45.97
2	ST4147 160 2000 In stock	Clutch (Contains 3)	£32.53 £27.11
3	ST0000 997 5519 In stock	Tension spring	£1.19 £0.99
4	ST4147 160 3000 Available to backorder	Cover washer	£6.60 £5.50
5	ST0000 958 1000 In stock	Washer 16x10x0.5	£1.19 £0.99
6	ST4128 162 1000 Available to backorder	Cover washer	£6.04 £5.03
7	ST0000 951 0600 In stock	Hexagon head screw M6	£1.66 £1.38
8	ST4147 160 0614 Available to backorder	Clutch housing (Contains 9 - 11)	£64.32 £53.60
9	ST9503 003 7452 Available to backorder	Grooved ball bearing 6202-2RS	£17.44 £14.53
10	ST9456 621 3860 Available to backorder	Circlip 35x1.5	£1.37 £1.14
11	ST0000 988 8600 In stock	Sleeve	£1.19 £0.99
12	ST4147 160 2902 In stock	Clutch drum	£35.36 £29.47
13	ST9455 621 1520 In stock	Circlips DIN471-15x1	£0.95 £0.79
14	ST4147 791 9310 Available to backorder	Rubber insert	£10.92 £9.10
15	ST4147 791 9410 Available to backorder	Hose clamp	£7.28 £6.07
16	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31
17	ST9075 478 4720 Available to backorder	Pan head self-tapping screw IS-D6x35	£1.26 £1.05
18	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
19	ST4147 161 1201 Available to backorder	Cover	£6.72 £5.60
21	ST4128 792 2400 In stock	Lead retainer	£1.43 £1.19
