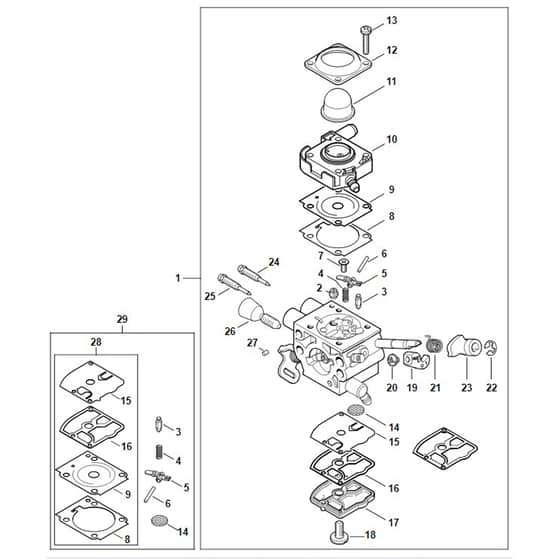

Stihl FS261.0 C-E Z - Carburetor - Parts Diagram

Stihl FS261.0 C-E Z - Carburetor - Parts Diagram
Stihl FS261.0 C-E Z - Carburetor - Parts Diagram

Description

Stihl FS261.0 C-E Z - Carburetor - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Carburetor 4147/24 (Contains 2 - 27) ST4147 120 0624
Carburetor 4147/24 (Contains 2 - 27)
 Out of stock
£168.12 £140.10

  2 Fixed jet 0.40 ST1132 121 5640
Fixed jet 0.40
 Out of stock
£11.05 £9.21

  3 Inlet needle STZ000 018 Z000
Inlet needle
 Out of stock
£9.63 £9.63

  4 Spring ST4128 122 3000
Spring
 Out of stock
£2.65 £2.21

  5 Inlet control lever ST4229 121 5000
Inlet control lever
 Out of stock
£3.65 £3.04

  6 Spindle ST1120 121 9200
Spindle
 Out of stock
£1.50 £1.25

  7 Screw ST0000 122 7101
Screw
 In stock
£5.04 £4.20

  8 Gasket ST4147 129 0907
Gasket
 Out of stock
£2.52 £2.10

  9 Metering diaphragm assy STZ010 015 A006
Metering diaphragm assy
 Out of stock
£16.36 £13.63

  10 Base primer assy STZ010 056 A011
Base primer assy
 Out of stock
£41.28 £34.40

  11 Cap ST4147 121 2702
Cap
 Out of stock
£6.43 £5.36

  12 End cover ST4147 121 0800
End cover
 Out of stock
£19.62 £16.35

  13 Screw ST4140 122 7100
Screw
 Out of stock
£4.78 £3.98

  14 Strainer ST1120 121 7800
Strainer
 Out of stock
£3.78 £3.15

  15 Pump diaphragm ST1129 121 4800
Pump diaphragm
 Out of stock
£17.10 £14.25

  16 Pump gasket ST1123 129 0905
Pump gasket
 Out of stock
£2.52 £2.10

  17 End cover ST1139 121 0800
End cover
 Out of stock
£19.62 £16.35

  18 Oval head screw ST1120 122 7800
Oval head screw
 Out of stock
£5.04 £4.20

  19 Throttle lever ST4147 121 3501
Throttle lever
 Out of stock
£7.43 £6.19

  20 Collar screw ST4132 122 6600
Collar screw
 Out of stock
£5.04 £4.20

  21 Torsion spring ST4147 122 3201
Torsion spring
 Out of stock
£1.26 £1.05

  22 E-clip ST4147 122 9001
E-clip
 Out of stock
£2.36 £1.97

  23 Lever ST4147 121 6605
Lever
 Out of stock
£2.29 £1.91

  24 High speed screw ST4147 122 6702
High speed screw
 Out of stock
£13.08 £10.90

  25 Low speed screw ST4147 122 6802
Low speed screw
 Out of stock
£13.08 £10.90

  26 Idle speed screw assy STZ010 035 A000
Idle speed screw assy
 Out of stock
£13.08 £10.90

  27 Clamp ST1125 122 4200
Clamp
 Out of stock
£1.90 £1.58

  28 Gasket & diaphragm kit (Contains 8 + 9 + 15 + 16) STZ010 003 K008
Gasket & diaphragm kit (Contains 8 + 9 + 15 + 16)
 Out of stock
£32.28 £26.90

  29 Carburetor Repair Kit RB-274 (Contains 3 - 6 + 8 + 9 + 14 - 16) STZ010 001 K009
Carburetor Repair Kit RB-274 (Contains 3 - 6 + 8 + 9 + 14 - 16)
 Out of stock
£56.52 £47.10


Description

Stihl FS261.0 C-E Z - Carburetor - Parts Diagram
