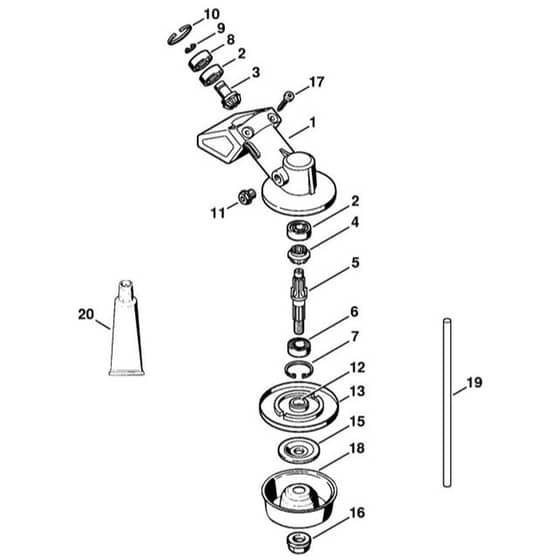

Stihl FS-KM 4140 - Gear Head (01.2015) - Parts Diagram

Description

Stihl FS-KM 4140 - Gear Head (01.2015) - Parts Diagram

	Part No.	Details
-1	ST4130 640 7301 Available to backorder	Set of pinions (Contains 45385)	£40.39 £33.66
1	ST4130 641 0305 Available to backorder	Gear housing	£98.40 £82.00
1	ST4137 640 0100 Available to backorder	Gearhead (Contains 1 - 17)	£242.40 £202.00
2	ST9503 003 9850 In stock	Grooved ball bearing 609	£10.72 £8.93
5	ST4130 642 0601 Available to backorder	Drive shaft	£37.91 £31.59
6	ST9503 003 5190 Available to backorder	Grooved ball bearing 6001-2RS	£13.76 £11.47
7	ST9456 621 3100 In stock	Circlip 28x1.2	£1.31 £1.09
8	ST9503 003 9853 Available to backorder	Grooved ball bearing 609-2Z	£12.40 £10.33
9	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
10	ST9456 621 2660 In stock	Circlip 24x1.2	£1.08 £0.90
11	ST4119 713 6500 In stock	Plug screw	£3.31 £2.76
12	ST4137 710 3800 In stock	Thrust plate (Contains 13)	£18.05 £15.04
15	ST4130 713 1600 In stock	Thrust washer	£4.48 £3.73
16	ST4126 642 7600 In stock	Collar nut M10x1 l/h thread	£5.42 £4.52
17	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
18	ST4126 713 3100 In stock	Rider plate	£10.37 £8.64
19	ST4130 893 7800 In stock	Locking pin	£0.53 £0.44
20	ST0781 120 1117 In stock	Gearbox grease (80g tube)	£9.02 £7.52
