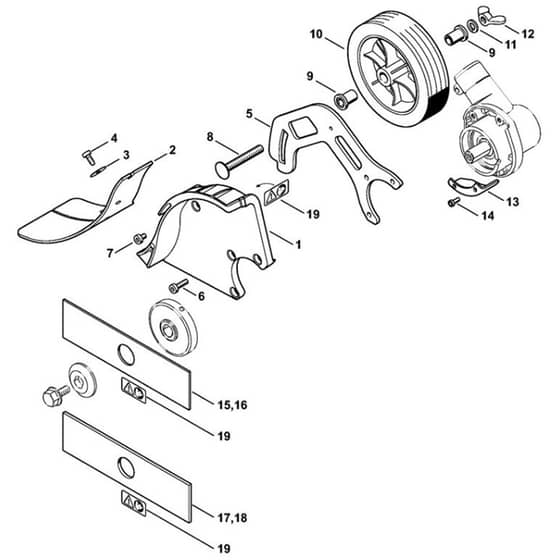

Stihl FCS-KM - Deflector - Parts Diagram

Part No. fcs_km_deflector-group

Description

	Part No.	Details
1	ST4180 710 8112 Available to backorder	Deflector (Contains 19)	£16.74 £13.95
2	ST4180 716 3201 Available to backorder	Skirt	£7.06 £5.88
3	ST0000 958 0512 Available to backorder	Washer	£1.14 £0.95
4	ST9075 478 4095 In stock	Pan head self-tapping screw IS-D5x12	£0.80 £0.67
5	ST4180 708 3201 Available to backorder	Segment	£31.86 £26.55
6	ST9022 341 1010 In stock	Spline screw IS-M5x18	£0.95 £0.79
7	ST9022 399 0950 Available to backorder	Spline screw IS-M5x10	£0.79 £0.66
8	ST9027 068 1972 Available to backorder	Flat head screw M8x60	£2.05 £1.71
9	ST4137 716 1501 Available to backorder	Sleeve	£5.69 £4.74
10	ST4180 740 1400 Available to backorder	Wheel	£8.98 £7.48
11	ST9321 630 0180 Available to backorder	Spring washer 8	£1.03 £0.86
12	ST9245 691 1100 Available to backorder	Wing nut M8	£0.91 £0.76
13	ST4180 713 4502 Available to backorder	Guard	£8.98 £7.48
14	ST9022 313 0652 Available to backorder	Spline screw IS-M4x10	£0.79 £0.66
15	ST4133 713 4101 In stock	Edger Blade Ø 200x2.4 mm / 7 7/8" x 1/10" (Contains 19)	£6.65 £5.54
17	ST4133 713 4102 In stock	Edger Blade Ø 200x3.8 mm / 7 7/8" x 3/16" (Contains 19)	£6.35 £5.29
19	ST0000 967 7242 Available to backorder	Warning note	£2.15 £1.79
