Stihl BGA86 - Spare Parts - Parts Diagram

Description

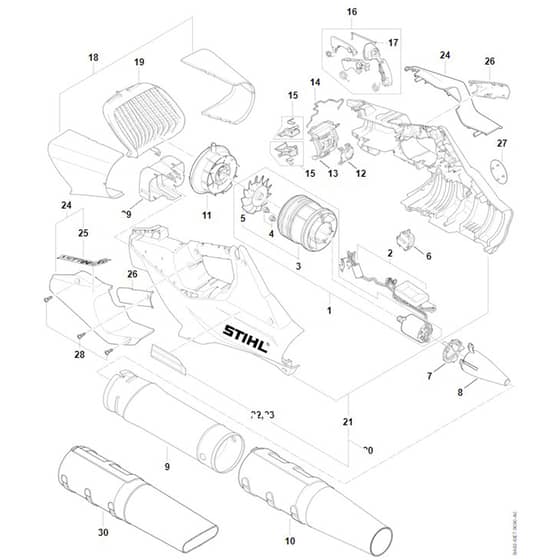

Stihl BGA86 - Spare Parts - Parts Diagram

	Part No.	Details
1	STBA02 600 0201 Available to backorder	Electric motor (Contains 3 - 5)	£239.16 £199.30
2	STBA02 430 1400 Available to backorder	Electronic module	£140.76 £117.30
3	ST4523 770 0600 Available to backorder	Stator (Contains 5)	£25.16 £20.97
4	ST9022 341 0911 In stock	Spline screw IS-M5x6	£0.83 £0.69
5	ST4866 770 0401 Available to backorder	Rotor	£10.14 £8.45
6	STBA02 430 1101 Available to backorder	Switchbox	£16.61 £13.84
7	STBA02 602 0400 Available to backorder	Cover	£3.31 £2.76
8	STBA02 761 0300 Available to backorder	Outlet cone	£8.29 £6.91

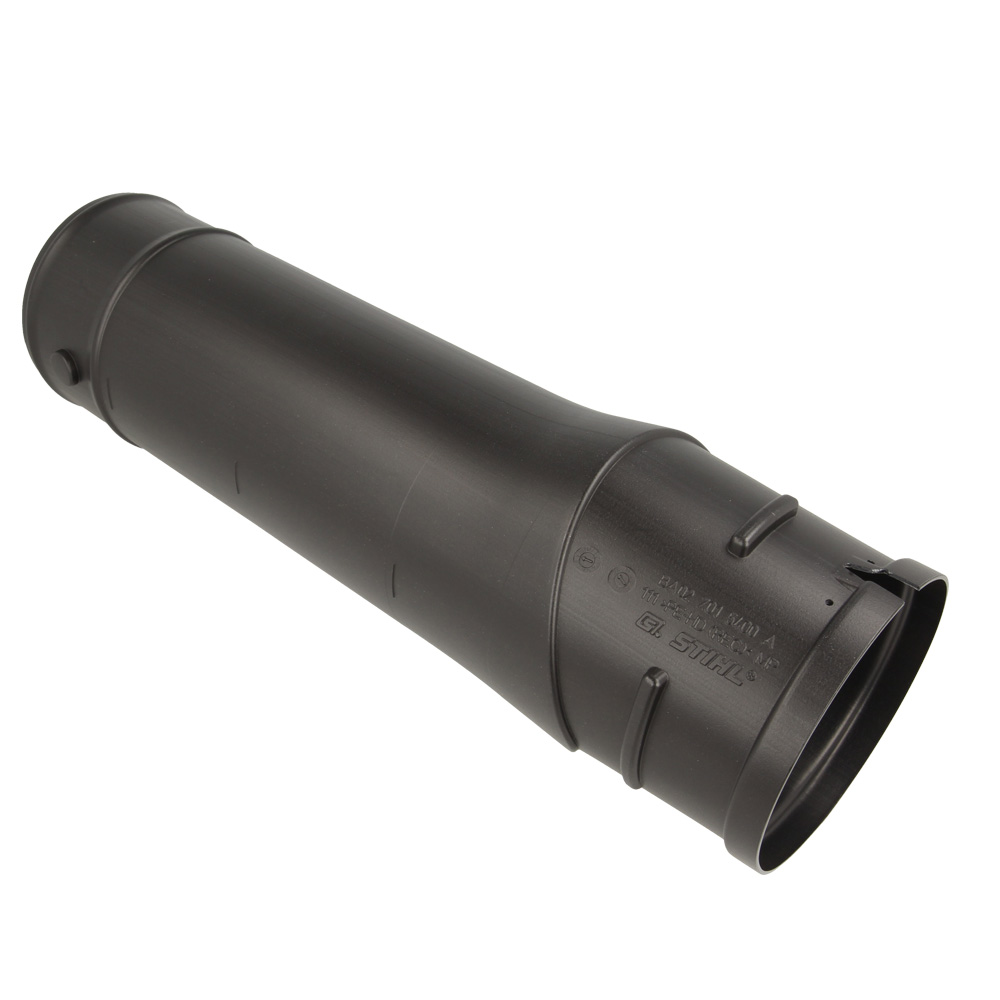

9	STBA02 701 5400 Available to backorder	Blower tube	£12.97 £10.81
10	ST4866 701 8300 Available to backorder	Round nozzle straight	£14.92 £12.43
11	STBA02 761 1100 Available to backorder	Inlet cone	£11.15 £9.29
12	ST1252 404 0801 Available to backorder	Contact plate	£3.31 £2.76
13	ST1252 404 0800 Available to backorder	Contact plate	£6.37 £5.31
14	ST1252 791 3100 Available to backorder	Spring	£1.72 £1.43
15	STBA02 430 9800 Available to backorder	Lockout lever	£5.69 £4.74
16	STBA02 007 3800 Available to backorder	Control lever kit (Contains 17)	£15.71 £13.09
17	STBA02 435 8900 Available to backorder	Flat spring	£1.37 £1.14
18	STBA02 007 1000 Available to backorder	Soundproofing pads kit	£15.80 £13.17
19	STBA02 706 8000 Available to backorder	Fan grill	£16.61 £13.84

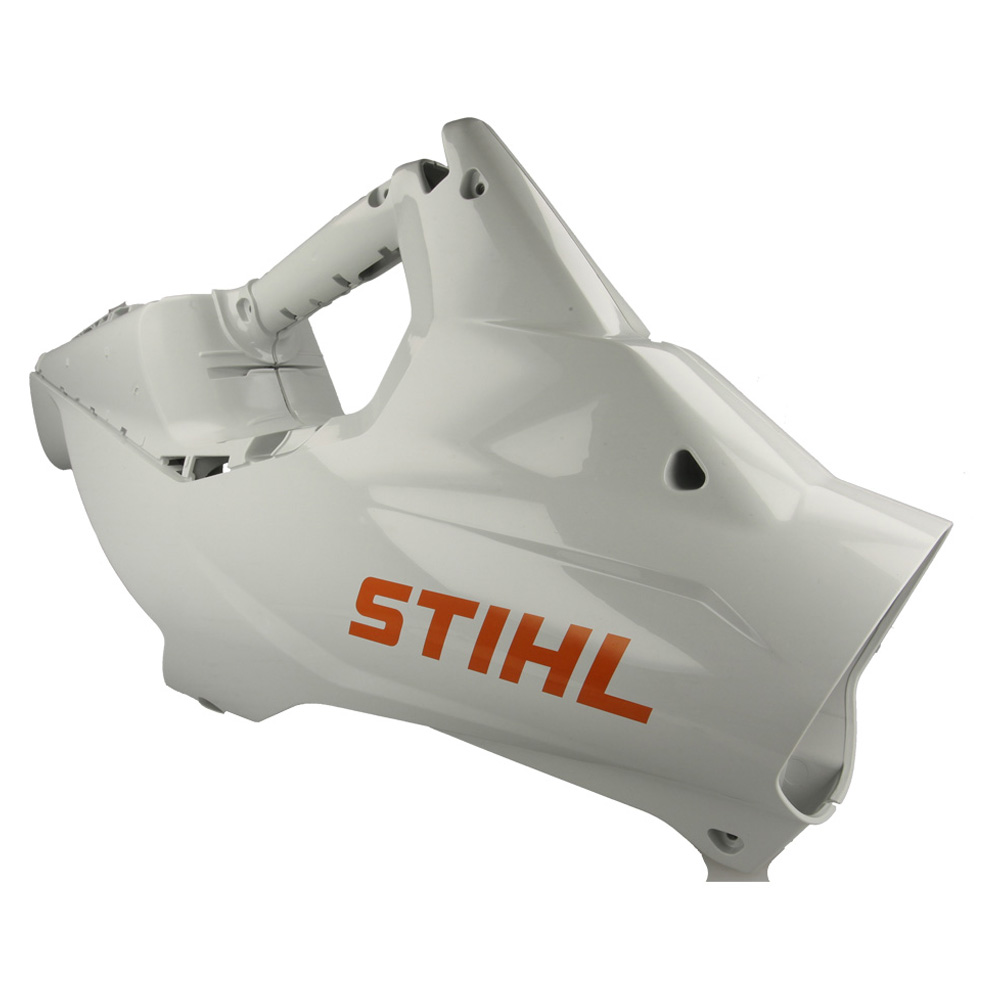

21	STBA02 790 1000 In stock	Handle housing	£62.16 £51.80

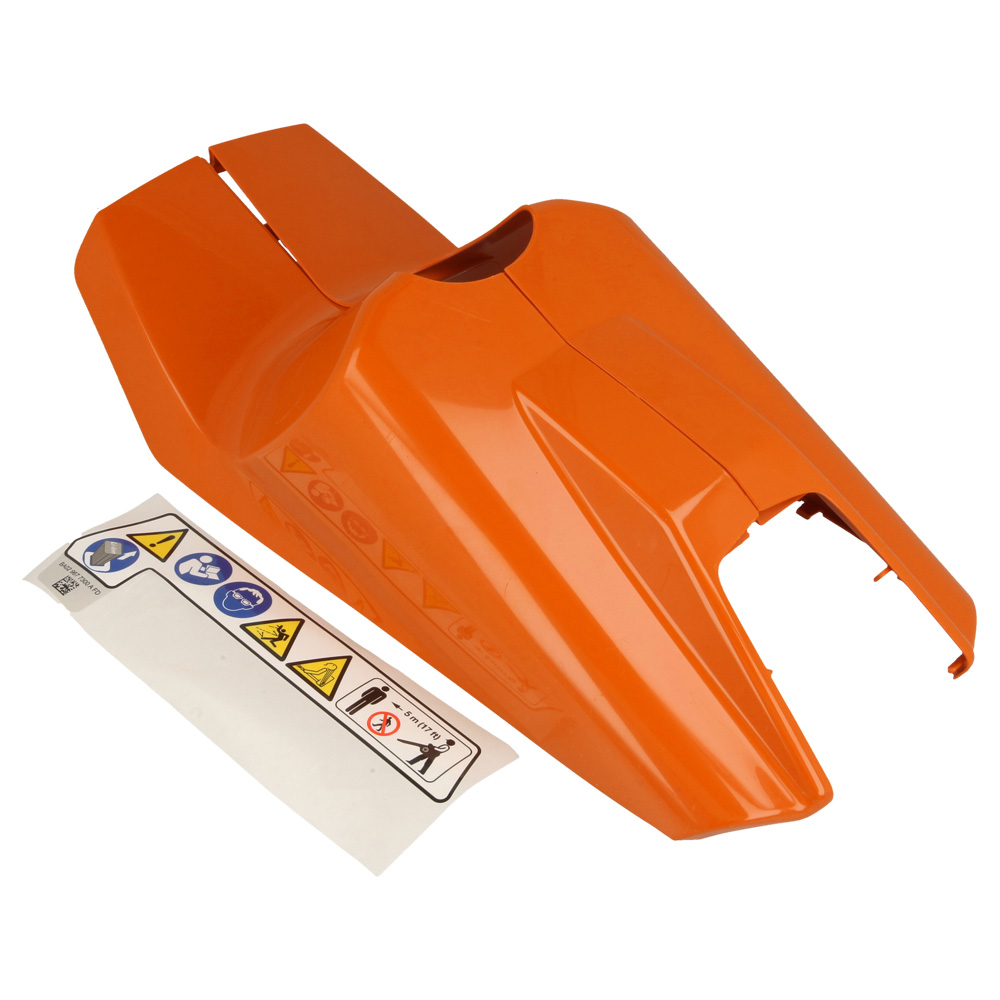

24	STBA02 790 5101 Available to backorder	Cover (Contains 25)	£14.34 £11.95
25	STBA02 967 7300 Available to backorder	Warning pictogram	£2.15 £1.79
26	STBA02 790 0600 Available to backorder	Handle molding	£6.25 £5.21
27	STBA02 967 1500 Available to backorder	Model plate	£4.68 £3.90
28	ST9074 477 3025 Available to backorder	Pan head self-tapping screw IS-P4x16	£0.79 £0.66
30	ST4866 701 8301 Available to backorder	Flat nozzle straight	£14.81 £12.34
