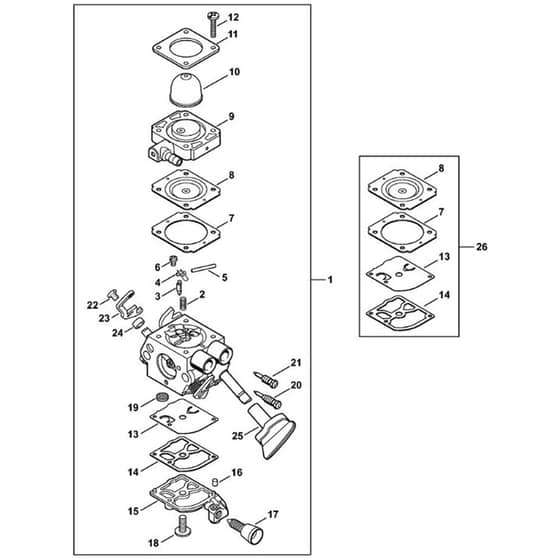

Stihl BG 66-D - Carburetor 4241-24 - Parts Diagram

Name: Stihl BG 66-D - Carburetor 4241-24 - Parts Diagram
SKU: bg_66_d_carburetor_4241_24-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl BG 66-D - Carburetor 4241-24 - Parts Diagram

Description

Stihl BG 66-D - Carburetor 4241-24 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4241 120 0624 In stock	Carburetor 4241/24	£82.50 £68.75
2	ST1128 122 3000 Available to backorder	Spring	£2.32 £1.93
3	STZ000 018 Z000 Available to backorder	Inlet needle	£9.63 £9.63
4	ST1125 121 5000 Available to backorder	Inlet control lever	£3.30 £2.75
6	ST0000 122 7101 In stock	Screw	Was £4.40 £3.67 Special Price £3.12 £2.60
7	ST4241 129 0901 Available to backorder	Metering gasket	£2.20 £1.83
8	ST4241 121 4702 Available to backorder	Metering diaphragm	£14.96 £12.47
9	STZ010 056 A023 Available to backorder	Base primer assy	£33.88 £28.23
10	ST4226 121 2700 In stock	Cap	£5.62 £4.68
11	ST4140 121 0800 Available to backorder	End cover	£17.16 £14.30
12	ST4241 122 7100 Available to backorder	Screw	£4.18 £3.48
13	ST4241 121 4800 Available to backorder	Pump diaphragm	£14.96 £12.47
14	ST1123 129 0905 In stock	Pump gasket	£2.20 £1.83
15	ST4241 121 0800 Available to backorder	End cover	£17.16 £14.30
16	ST1125 122 4200 Available to backorder	Clamp	£1.66 £1.38
17	ST4140 122 6200 Available to backorder	Idle speed screw	£10.78 £8.98
18	ST1120 122 7800 Available to backorder	Oval head screw	£4.40 £3.67
19	ST1123 121 7800 Available to backorder	Strainer	£3.30 £2.75
20	STZ000 031 Z009 Available to backorder	Low speed screw	£10.78 £8.98
21	STZ000 030 Z007 Available to backorder	High speed screw	£10.78 £8.98
22	ST9079 319 0280 Available to backorder	Flat head screw M3x3.5	£0.66 £0.55
23	ST4241 121 3500 Available to backorder	Throttle lever	£6.50 £5.42
24	ST4241 122 5000 Available to backorder	Spacer sleeve	£0.97 £0.81
25	ST4241 182 9500 Available to backorder	Choke knob	£3.64 £3.03
26	ST4241 007 1700 In stock	Set of carburetor parts (Contains 7 + 8 + 13 + 14)	£29.60 £24.67
