STARK 2500 T (EURO 2) - - Efco Brushcutter Carburettor WYL-245 Diagram

Name: STARK 2500 T (EURO 2) - - Efco Brushcutter Carburettor WYL-245 Diagram
SKU: stark_2500_t_euro_2_carburettor_wyl_245-group
Price: 1.67 GBP
Availability: InStock

Part No. stark_2500_t_euro_2_carburettor_wyl_245-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

STARK 2500 T (EURO 2) - - Efco Brushcutter Carburettor WYL-245 Diagram

Description

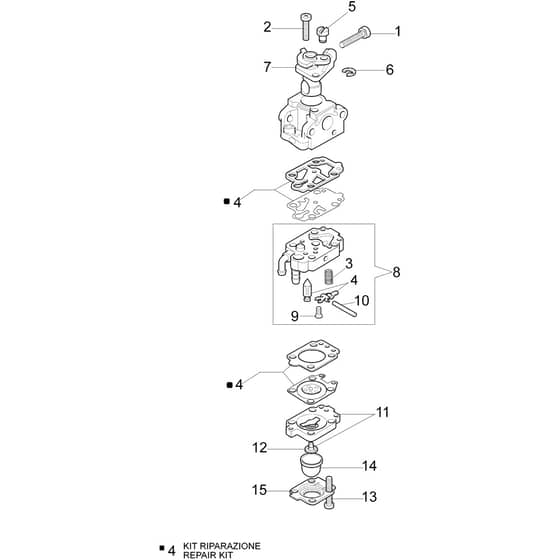

Efco STARK 2500 T (EURO 2) Parts Diagram

Model Year -

	Part No.	Details
1	EF2318583 Available to backorder	Screw	£9.00 £7.50
2	EF2318954 Available to backorder	Screw	£2.00 £1.67
4	EF2318674 Available to backorder	Repair Kit	£26.04 £21.70
7	EF2318958 Available to backorder	Valve	£22.32 £18.60
8	EF2318567 Available to backorder	Pump Body	£53.28 £44.40
9	EF2318568 Available to backorder	Spring	£3.84 £3.20
10	EF003300201 Available to backorder	Spindle	£2.00 £1.67
11	EF2318570 Available to backorder	Primer Body	£37.80 £31.50
12	EF2318592 Available to backorder	Valve	£9.00 £7.50
13	EF2318585 Available to backorder	Screw	£3.84 £3.20
14	EF2318572 Available to backorder	Primer Pump	£16.20 £13.50
15	EF2318571 Available to backorder	Cover	£14.16 £11.80
