ST29S - 2009-2010 - 281410002/09 - Stiga Trimmer Engine Diagram

Description

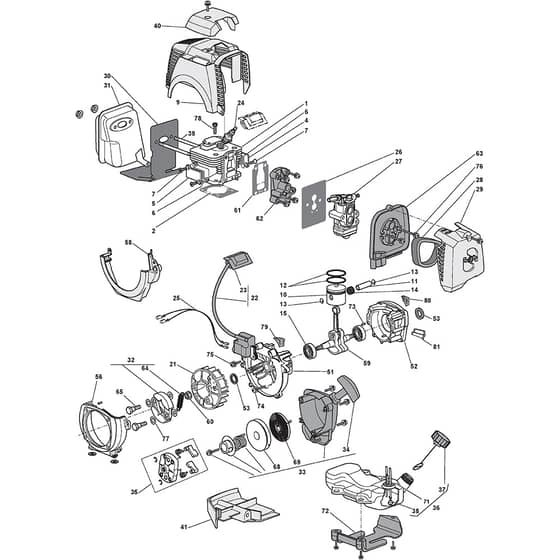

Stiga ST29S Parts Diagram

Product Name - ST 29 S

Model Year - 2009-2010

Model Type - TR 29 S

Art.N - 281410002/09

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
10	MO123590004/0 Available to backorder	Piston	£43.64 £36.37
11	MO123760001/0 Available to backorder	Piston Pin	£9.16 £7.63
12	MO123204007/0 Available to backorder	Piston Ring	£7.25 £6.04
14	MO123235003/0 Available to backorder	Needle Bearing	£15.34 £12.78
22	MO123044012/0 Available to backorder	Electronic Coil	£276.06 £230.05
24	9494 In stock	Spark Plug	£3.72 £3.10
26	MO123280033/0 Available to backorder	Intake Carburator Gasket	£4.22 £3.52
28	MO123220009/0 Available to backorder	Air Filter	£6.20 £5.17
32	MO183215005/0 Available to backorder	Clutch Ass.Y	£72.79 £60.66
33	MO183058034/0 Available to backorder	Starter Assy	£99.95 £83.29
35	MO123082002/0 Available to backorder	Starter Cup Ass.Y	£20.28 £16.90
37	MO183790008/0 Available to backorder	Fuel Cap Assy	£29.56 £24.63
38	MO183520004/0 Available to backorder	Intake Filter	£18.74 £15.62
53	MO119035160/0 Available to backorder	Seal Ring	£4.66 £3.88
61	MO123280052/0 Available to backorder	Intake Manifold Gasket	£9.16 £7.63
63	MO123040002/0 Available to backorder	Air Cleaner Base	£13.51 £11.26
65	MO123878059/0 Available to backorder	Screw	£8.87 £7.39
69	MO123430589/0 Available to backorder	Spring	£16.34 £13.62
71	MO123275022/0 Available to backorder	Grommet Ass.Y	£5.64 £4.70
76	MO123878065/0 Available to backorder	Screw	£1.20 £1.00
77	MO123657010/0 Available to backorder	Washer	£1.69 £1.41
