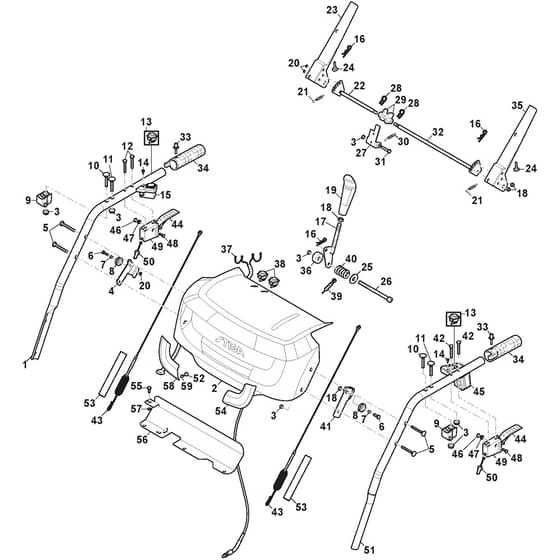

ST 7276 PH - 2021-2026 - 2S2767711/ST1 - Stiga Snow Thrower Handle Diagram

Name: ST 7276 PH - 2021-2026 - 2S2767711/ST1 - Stiga Snow Thrower Handle Diagram
SKU: st_7276_ph_2s2767711_st1_handle-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ST 7276 PH - 2021-2026 - 2S2767711/ST1 - Stiga Snow Thrower Handle Diagram

Description

Stiga ST 7276 PH Parts Diagram

Product Name - ST 7276 PH

Model Year - 2021-2026

Model Type - ST 767 H

Art.N - 2S2767711/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118821186/0 Available to backorder	Upper Handle. Right	£22.93 £19.11
2	MO118821187/0 Available to backorder	Dashboard	£147.80 £123.17
3	MO112155000/0 In stock	Nut	£1.55 £1.29
4	MO118821141/0 Available to backorder	Right Pulley Seat	£4.66 £3.88
5	MO112819100/0 Available to backorder	Screw	£1.55 £1.29
6	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
9	MO118821142/0 Available to backorder	Handle Seat	£1.82 £1.52
10	MO112819105/0 Available to backorder	Screw	£1.97 £1.64
11	MO112818900/0 Available to backorder	Screw	£1.55 £1.29
13	MO118821188/0 Available to backorder	Reset Switch	£13.81 £11.51
14	MO112727815/0 Available to backorder	Screw	£1.40 £1.17
15	MO118821189/0 Available to backorder	Water Proof Cover. Right	£2.40 £2.00
16	MO118820348/0 Available to backorder	Pin	£1.97 £1.64
17	MO118821190/0 Available to backorder	Walk Lever	£8.17 £6.81
18	MO112295200/0 In stock	Nut	£1.40 £1.17
19	MO118820615/0 Available to backorder	Control Handle	£5.76 £4.80
20	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
21	MO118821144/0 Available to backorder	Spring	£2.26 £1.88
22	MO118821145/0 Available to backorder	Short Rod	£11.96 £9.97
23	MO118821146/0 Available to backorder	Right Control Lever	£13.09 £10.91
25	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
27	MO118821147/0 Available to backorder	Stopper	£4.22 £3.52
28	MO118821148/0 Available to backorder	Pin	£1.55 £1.29
29	MO118821149/0 Available to backorder	Cam	£6.05 £5.04
30	MO1811-3067-01 Available to backorder	Spring	£1.82 £1.52
32	MO118821150/0 Available to backorder	Long Rod	£13.02 £10.85
33	MO118820363/0 Available to backorder	Rivet	£1.69 £1.41
34	MO118820776/0 Available to backorder	Heated Handle	£43.64 £36.37
35	MO118821151/0 Available to backorder	Left Control Lever	£13.09 £10.91
36	MO1811-3048-01 Available to backorder	Bushing	£3.38 £2.82
37	MO118821191/0 Available to backorder	Input Wire	£37.73 £31.44
38	MO118820617/0 Available to backorder	Switch	£12.67 £10.56
39	MO118821192/0 Available to backorder	Gear Cable	£14.22 £11.85
40	MO118820878/0 Available to backorder	Spring	£2.40 £2.00
41	MO118821153/0 Available to backorder	Left Pulley Seat	£4.66 £3.88
42	MO2122270 Available to backorder	Screw	£1.33 £1.11
43	MO118821193/0 Available to backorder	Wiring Harness	£10.43 £8.69
44	MO1811-3024-01 Available to backorder	Differential Lever	£9.72 £8.10
45	MO118821194/0 Available to backorder	Water Proof Cover. Left	£3.67 £3.06
47	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
49	MO1811-3022-01 Available to backorder	Bracket. Handle	£12.95 £10.79
50	MO118821195/0 Available to backorder	Differential Cable	£15.34 £12.78
51	MO118821196/0 Available to backorder	Upper Handle. Left	£22.93 £19.11
52	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
53	MO118820003/0 Available to backorder	Sleeve	£3.24 £2.70
54	MO1811-3040-01 Available to backorder	Led Light. Left	£21.83 £18.19
56	MO118820291/0 Available to backorder	Cover	£13.81 £11.51
57	MO112154510/0 In stock	Nut	£1.55 £1.29
58	MO1811-3041-01 Available to backorder	Led Light. Right	£21.83 £18.19
59	MO118821197/0 Available to backorder	Sleeve	£1.55 £1.29
