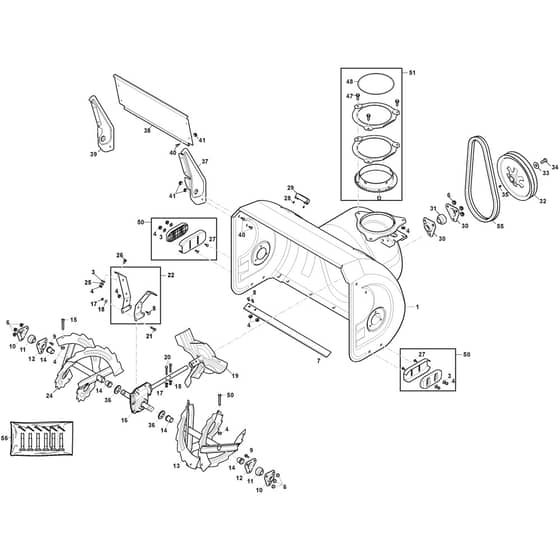

ST 7276 PH - 2021-2026 - 2S2767711/ST1 - Stiga Snow Thrower Auger Housing Diagram

Name: ST 7276 PH - 2021-2026 - 2S2767711/ST1 - Stiga Snow Thrower Auger Housing Diagram
SKU: st_7276_ph_2s2767711_st1_auger_housing-group
Price: 1.16 GBP
Availability: InStock

Part No. st_7276_ph_2s2767711_st1_auger_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ST 7276 PH - 2021-2026 - 2S2767711/ST1 - Stiga Snow Thrower Auger Housing Diagram

Description

Stiga ST 7276 PH Parts Diagram

Product Name - ST 7276 PH

Model Year - 2021-2026

Model Type - ST 767 H

Art.N - 2S2767711/ST1

Engine Model -

	Part No.	Details
1	MO118821217/0 Available to backorder	Auger Housing. Grey	£485.68 £404.73
3	MO112521350/0 In stock	Washer	£1.55 £1.29
4	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
7	MO118821218/0 Available to backorder	Shave Plate	£35.20 £29.33
10	MO118820701/0 Available to backorder	Sealing Bearing Seat	£4.93 £4.11
11	MO118820700/0 Available to backorder	Ball Bearing	£17.76 £14.80
12	MO118820699/0 Available to backorder	Bearing Cover	£4.93 £4.11
13	MO122720262/0 Available to backorder	Right Auger	£420.54 £350.45
14	MO118821165/0 Available to backorder	Sleeve	£2.94 £2.45
16	MO118821220/0 Available to backorder	Auger Transmission	£281.57 £234.64
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO112582100/0 Available to backorder	Grower	£1.63 £1.36
19	MO118821168/0 Available to backorder	Impeller	£112.62 £93.85
20	MO112792410/0 Available to backorder	Screw	£1.63 £1.36
21	MO112674550/0 Available to backorder	Screw	£1.63 £1.36
22	MO118821169/0 Available to backorder	Support Assy	£14.70 £12.25
24	MO118821221/1 Available to backorder	Left Auger	£218.21 £181.84
25	MO112583500/0 In stock	Grower	£1.55 £1.29
26	MO112818690/0 In stock	Screw	£1.55 £1.29
27	MO112818700/0 In stock	Screw	£1.55 £1.29
28	MO112727815/0 Available to backorder	Screw	£1.39 £1.16
29	MO118820250/0 Available to backorder	Support	£13.09 £10.91
30	MO118820718/0 Available to backorder	Bearing Cover	£6.77 £5.64
31	MO118820292/0 Available to backorder	Ball Bearing	£2.11 £1.76
32	MO118820717/0 Available to backorder	Big Pulley	£43.63 £36.36
34	MO112794300/0 Available to backorder	Screw M10x30	£1.84 £1.53
35	MO118820252/0 Available to backorder	Key	£1.97 £1.64
36	MO118821172/0 Available to backorder	Plastic Washer	£1.70 £1.42
37	MO118821222/0 Available to backorder	Right Support	£29.57 £24.64
38	MO118821223/0 Available to backorder	Higher Panel	£102.77 £85.64
39	MO118821224/0 Available to backorder	Left Support	£29.57 £24.64
47	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
48	MO118821171/0 Available to backorder	Rubber Ring	£12.53 £10.44
50	MO118821102/0 Available to backorder	Skid Shoe Assy	£33.79 £28.16
51	MO118821173/0 Available to backorder	Chute Gear Cover Kit	£58.69 £48.91
55	MO118821185/0 Available to backorder	Belt	£51.17 £42.64
56	MO1812-9040-01 Available to backorder	Shear Bolt Kit (6Pcs) Kit with 6pcs	£25.28 £21.07
