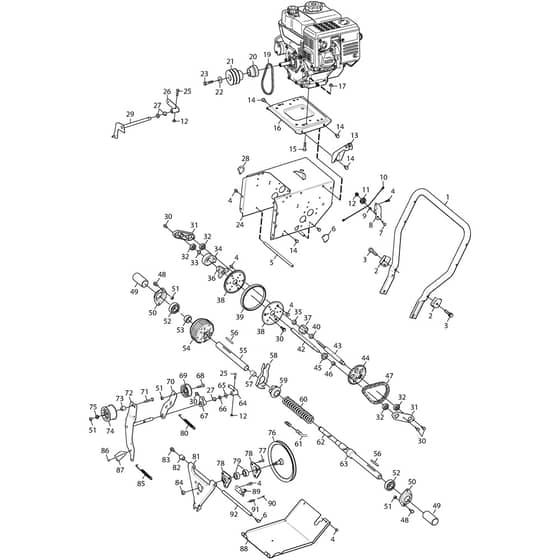

ST 5266 PB TRAC - 2016-2020 - 18-2872-12 - Stiga Snow Thrower Transmission Diagram

Name: ST 5266 PB TRAC - 2016-2020 - 18-2872-12 - Stiga Snow Thrower Transmission Diagram
SKU: st_5266_pb_trac_18_2872_12_transmission-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ST 5266 PB TRAC - 2016-2020 - 18-2872-12 - Stiga Snow Thrower Transmission Diagram

Description

Stiga ST 5266 PB TRAC Parts Diagram

Product Name - ST 5266 PB TRAC

Model Year - 2016-2020

Model Type - ST 401

Art.N - 18-2872-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118820293/0 Available to backorder	Handle. Lower Part	£84.47 £70.39
2	MO118820294/0 Available to backorder	Bracket	£3.24 £2.70
3	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
4	MO9997-0612-16 Available to backorder	Screw	£1.55 £1.29
10	MO118820299/0 Available to backorder	Wire	£7.39 £6.16
12	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
13	MO118820301/0 Available to backorder	Connecting Plate	£2.53 £2.11
14	MO112793102/0 In stock	Screw	£1.55 £1.29
15	MO9997-0835-16 Available to backorder	Screw	£1.90 £1.58
16	MO118820302/0 Available to backorder	Engine Fixing Plate	£25.76 £21.47
19	MO118820303/0 Available to backorder	Belt	£49.82 £41.52
21	MO1811-3119-01 Available to backorder	Pulley	£29.56 £24.63
22	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
23	MO9997-0813-02 Available to backorder	Screw	£1.97 £1.64
25	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
26	MO1811-3012-01 Available to backorder	Gear Connector	£5.64 £4.70
27	MO1811-3113-01 Available to backorder	Plastic Bushing	£1.82 £1.52
29	MO118820308/0 Available to backorder	Shift Fork	£9.65 £8.04
30	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
31	MO118820309/0 Available to backorder	Bearing Housing	£38.00 £31.67
32	MO118820310/0 Available to backorder	Ball Bearing	£4.78 £3.98
34	MO118820312/0 Available to backorder	Shift Bearing	£27.31 £22.76
36	MO118820314/0 Available to backorder	Rubber Wheel Seat	£12.73 £10.61
37	MO118820315/0 Available to backorder	Gear	£7.99 £6.66
38	MO118820110/0 Available to backorder	Friction Wheel	£10.18 £8.48
39	MO118820317/0 Available to backorder	Rubber	£20.56 £17.13
42	MO118820319/0 Available to backorder	Hexagon Shaft	£9.72 £8.10
43	MO118820320/0 Available to backorder	Transit Shaft	£13.51 £11.26
45	MO118820322/0 Available to backorder	Sprocket	£3.24 £2.70
47	MO118820324/0 Available to backorder	Chain	£10.91 £9.09
48	MO9959-0820-16 In stock	Screw	£1.55 £1.29
49	MO1811-3016-01 Available to backorder	Bracket	£6.64 £5.53
50	MO1811-3115-01 Available to backorder	Bearing Housing	£9.72 £8.10
51	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
52	MO1811-3142-01 Available to backorder	Ball Bearing	£7.31 £6.09
53	MO118820325/0 Available to backorder	Spacer	£1.79 £1.49
54	MO118820326/0 Available to backorder	Differential	£239.32 £199.43
55	MO118820327/0 Available to backorder	Shaft	£10.42 £8.68
56	MO118820328/0 Available to backorder	Flat Key	£1.69 £1.41
57	MO118820329/0 Available to backorder	Bronze Sleeve	£5.06 £4.22
58	MO118820330/0 Available to backorder	Fork	£4.50 £3.75
59	MO1811-3007-01 Available to backorder	Auxiliary Clutch	£8.87 £7.39
60	MO1811-3005-01 Available to backorder	Spring	£4.66 £3.88
61	MO118820331/0 Available to backorder	Differential Cable	£15.20 £12.67
62	MO118820332/0 Available to backorder	Bronze Sleeve	£7.74 £6.45
63	MO118820333/0 Available to backorder	Shaft	£63.35 £52.79
64	MO118820334/0 Available to backorder	Tensioner	£6.76 £5.63
65	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
68	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
69	MO1811-3064-01 Available to backorder	Small Tension Pulley	£15.78 £13.15
71	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
72	MO118820338/0 Available to backorder	Bracket	£29.56 £24.63
73	MO1811-3055-01 Available to backorder	Bushing	£3.38 £2.82
74	MO1811-3057-01 Available to backorder	Big Tension Pulley	£33.79 £28.16
75	MO1811-3056-01 Available to backorder	Pad	£1.55 £1.29
76	MO118820339/0 Available to backorder	Pulley	£35.20 £29.33
77	MO9997-0620-16 Available to backorder	Screw	£1.55 £1.29
78	MO1811-3116-01 Available to backorder	Bearing Housing	£3.94 £3.28
79	MO118820340/0 Available to backorder	Ball Bearing 6002	£6.05 £5.04
80	MO1811-3118-01 Available to backorder	Spring	£3.52 £2.93
83	MO9997-0816-16 Available to backorder	Screw	£1.55 £1.29
84	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
85	MO118820343/0 Available to backorder	Brake Spring	£3.52 £2.93
86	MO118820344/0 Available to backorder	Rivet	£1.26 £1.05
87	MO118820345/0 Available to backorder	Brake Block	£1.69 £1.41
90	MO118820348/0 Available to backorder	Pin	£1.97 £1.64
91	MO118820349/0 Available to backorder	Spring	£1.97 £1.64
92	MO1811-3125-01 Available to backorder	Strut	£8.74 £7.28
