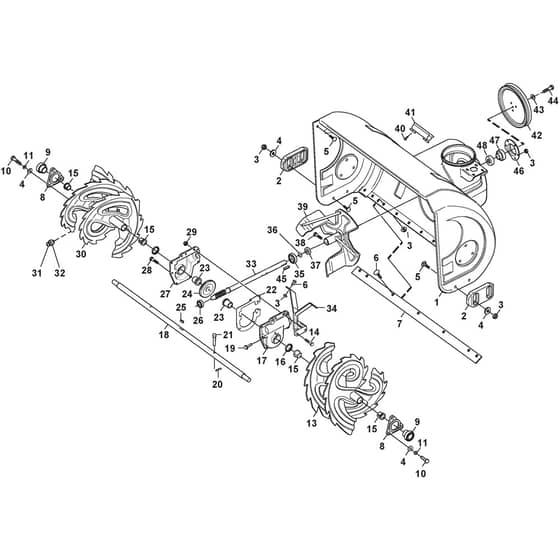

ST 5266 PB TRAC - 2016-2020 - 18-2872-12 - Stiga Snow Thrower Auger Housing Diagram

Name: ST 5266 PB TRAC - 2016-2020 - 18-2872-12 - Stiga Snow Thrower Auger Housing Diagram
SKU: st_5266_pb_trac_18_2872_12_auger_housing-group
Price: 1.16 GBP
Availability: InStock

Part No. st_5266_pb_trac_18_2872_12_auger_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ST 5266 PB TRAC - 2016-2020 - 18-2872-12 - Stiga Snow Thrower Auger Housing Diagram

Description

Stiga ST 5266 PB TRAC Parts Diagram

Product Name - ST 5266 PB TRAC

Model Year - 2016-2020

Model Type - ST 401

Art.N - 18-2872-12

Engine Model -

	Part No.	Details
1	MO1811-2987-01 Available to backorder	Auger Housing	£485.68 £404.73
2	MO1811-3046-01 Available to backorder	Slid Shoe	£11.70 £9.75
3	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
4	MO112523060/0 In stock	Washer	£1.55 £1.29
5	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
6	MO112818690/0 In stock	Screw	£1.55 £1.29
7	MO1811-2988-01 Available to backorder	Scraper Blade	£47.87 £39.89
9	MO118820147/0 Available to backorder	Bearing	£16.61 £13.84
10	MO112793102/0 In stock	Screw	£1.55 £1.29
13	MO1811-2983-01 Available to backorder	Left Auger	£154.86 £129.05
14	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
15	MO118820237/0 Available to backorder	Bushing	£1.70 £1.42
16	MO1811-3143-01 Available to backorder	Sealing Ring	£5.34 £4.45
17	MO1811-3106-01 Available to backorder	Left Worm Housing	£39.42 £32.85
18	MO118820819/0 Available to backorder	Axel Output Shaft	£235.68 £196.40
19	MO9959-1020-16 Available to backorder	Screw	£2.53 £2.11
21	MO1811-3080-01 Available to backorder	Cotter Pin	£1.97 £1.64
22	MO1811-3107-01 Available to backorder	Paper Washer	£6.32 £5.27
23	MO118820241/0 Available to backorder	Axel Output Shaft Sleeve	£7.46 £6.22
24	MO1811-3108-01 Available to backorder	Worm Gear	£68.99 £57.49
25	MO1811-3144-01 Available to backorder	Key	£2.11 £1.76
26	MO118820153/0 Available to backorder	Ball Bearing	£6.46 £5.38
27	MO1811-3083-01 Available to backorder	Right Worm Housing	£39.42 £32.85
29	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
30	MO1811-2984-01 Available to backorder	Right Auger	£154.86 £129.05
31	MO118820156/0 Available to backorder	Oil Cup	£1.39 £1.16
32	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
33	MO1811-3101-01 Available to backorder	Worm Shaft	£48.19 £40.16
35	MO118820157/0 Available to backorder	Ball Bearing	£13.68 £11.40
36	MO1811-3109-01 Available to backorder	Shaft Sleeve	£1.39 £1.16
37	MO118820158/0 Available to backorder	Ball Bearing	£8.45 £7.04
38	MO9997-0835-16 Available to backorder	Screw	£1.90 £1.58
39	MO118821118/0 Available to backorder	Fan	£114.74 £95.62
41	MO118820250/0 Available to backorder	Tool Bracket	£13.09 £10.91
42	MO1811-3103-01 Available to backorder	Belt Pulley	£42.22 £35.18
43	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
44	MO9997-1025-16 Available to backorder	Screw	£1.74 £1.45
45	MO118820252/0 Available to backorder	Key	£1.97 £1.64
46	MO118820251/0 Available to backorder	Cover	£3.79 £3.16
48	MO118820292/0 Available to backorder	Sleeve	£2.11 £1.76
